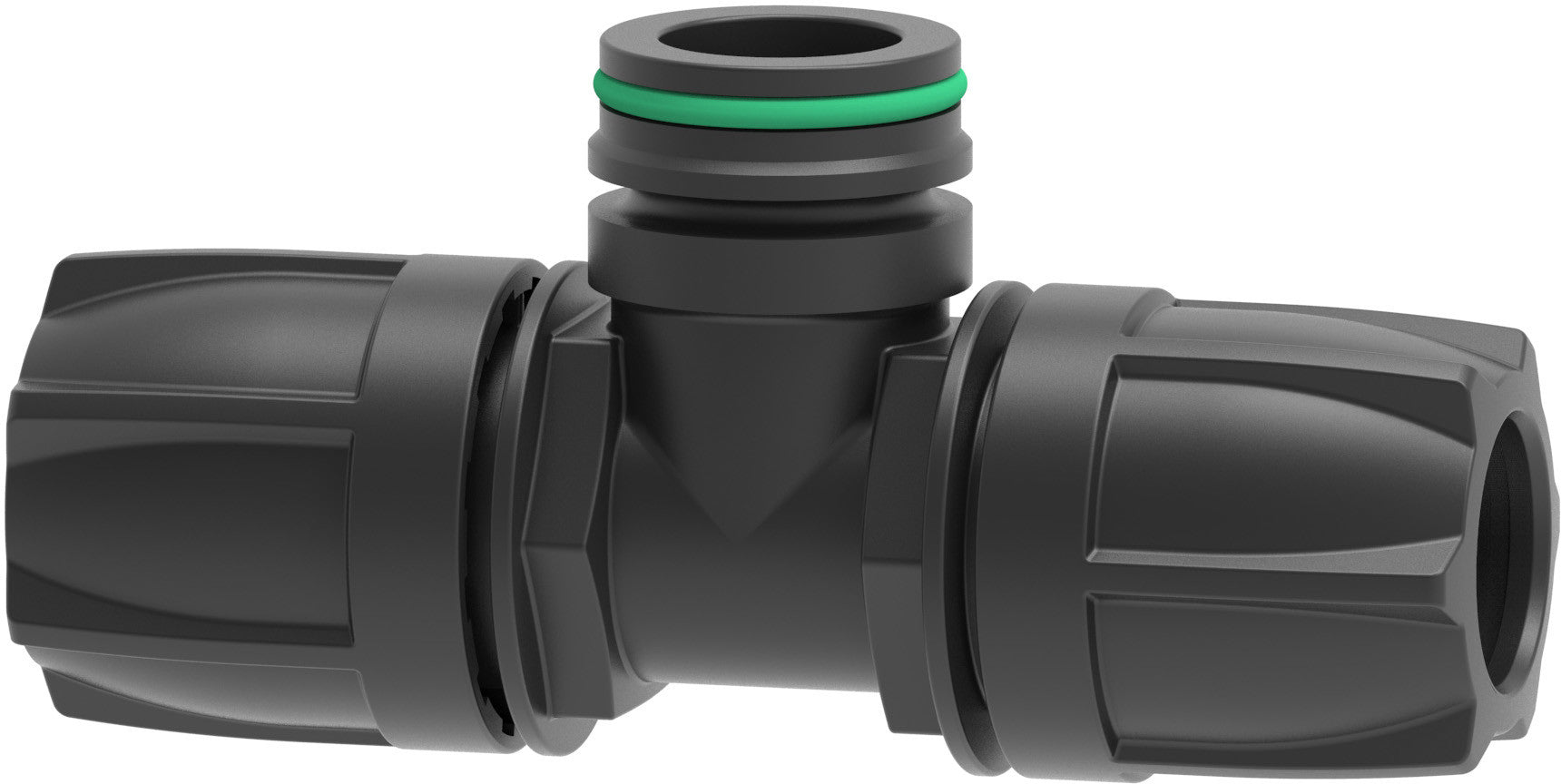

T' FITTING EASYFIT D.20 T3M
T' FITTING EASYFIT D.20 T3M
Sale price£5.78 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
TECHNICAL FEATURES
- Exclusive “AUTOLOCK” system that prevents implants slackening in presence of strong vibrations.

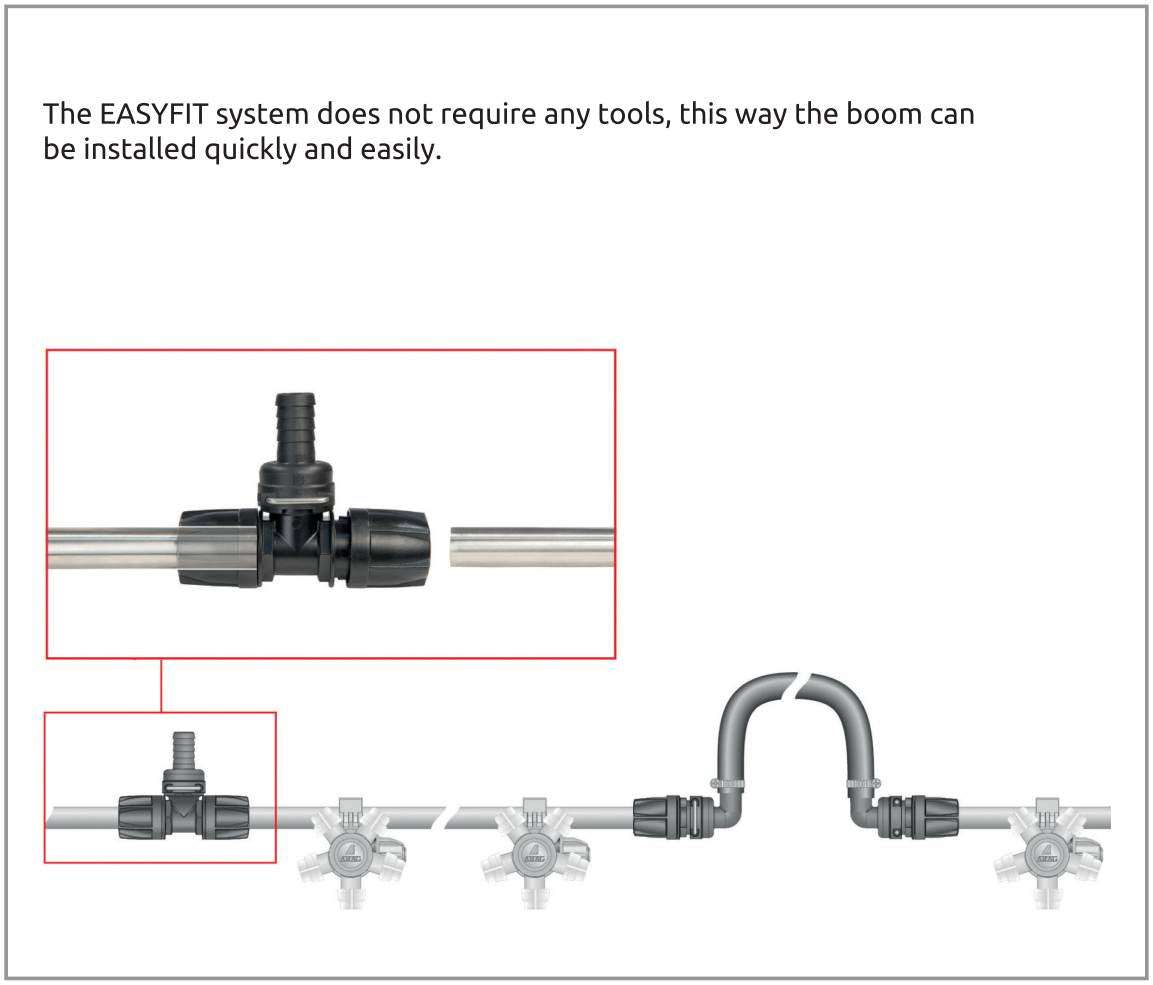

- No need of threads at the end of the boom.
- Permits the use of pipes with small wall thicknesses.
- It does not reduce the passage inside the tube.

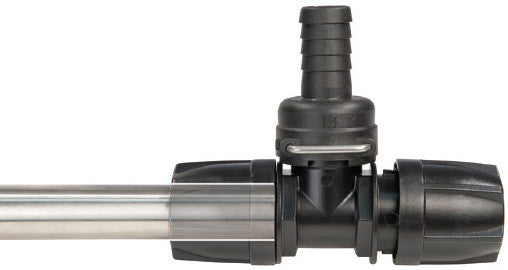

- Thanks to the boom-end fork coupling fittings, it is possible to connect any type of “T” connector within the wide ARAG range (hose straight, curved or nipples).
- Body POM.
- Internal O’Ring in EPDM.
- O’Ring in EPDM (VITON® on request) and fork couplings included.

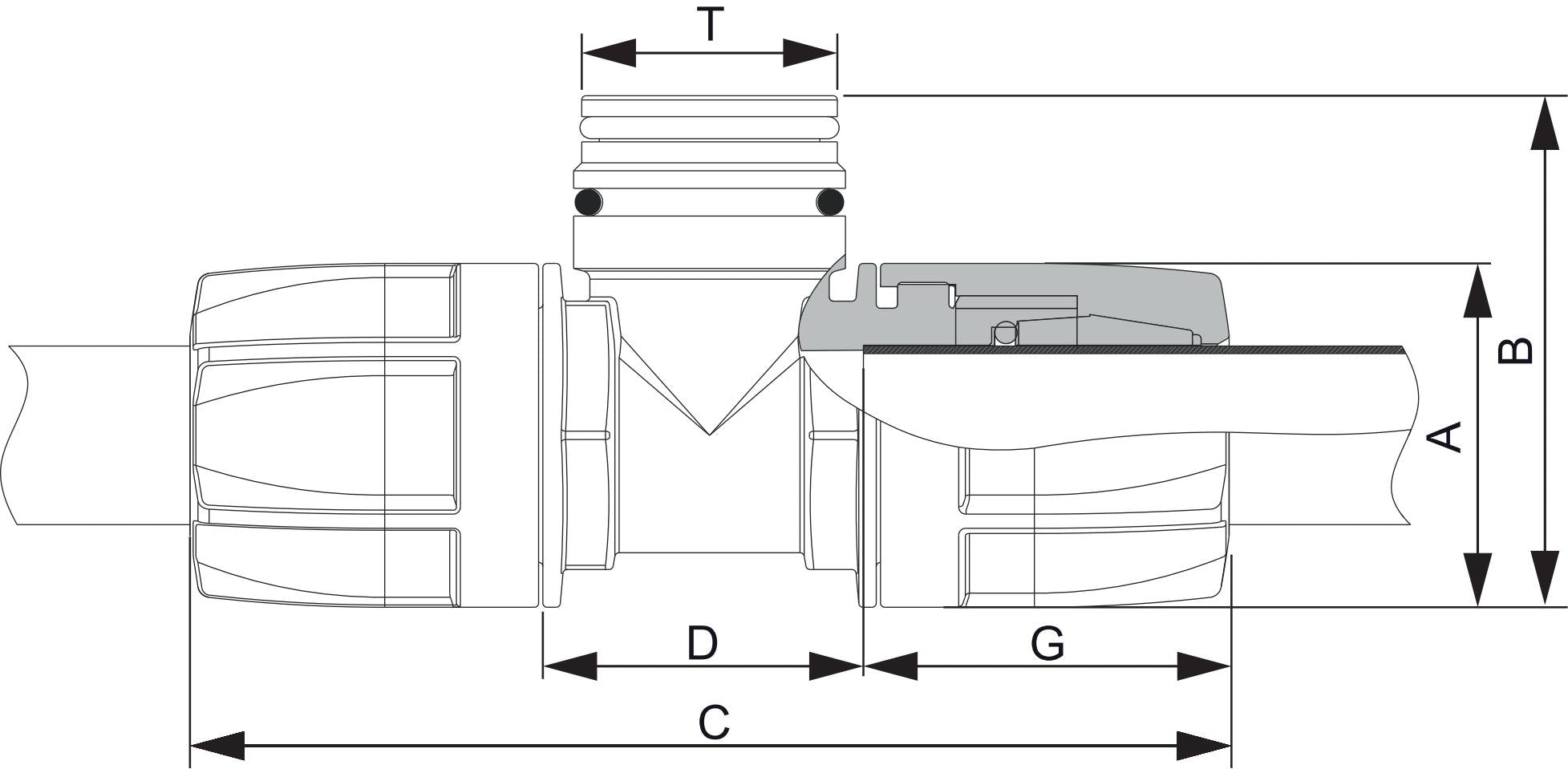

| Field | Value |
|---|---|
| Code | 193B13 |
| T3 | |
| A | Ø 41 mm |
| B | 61 mm |
| C | 129 mm |
| D | 36 mm |
| G | 45±1 mm |

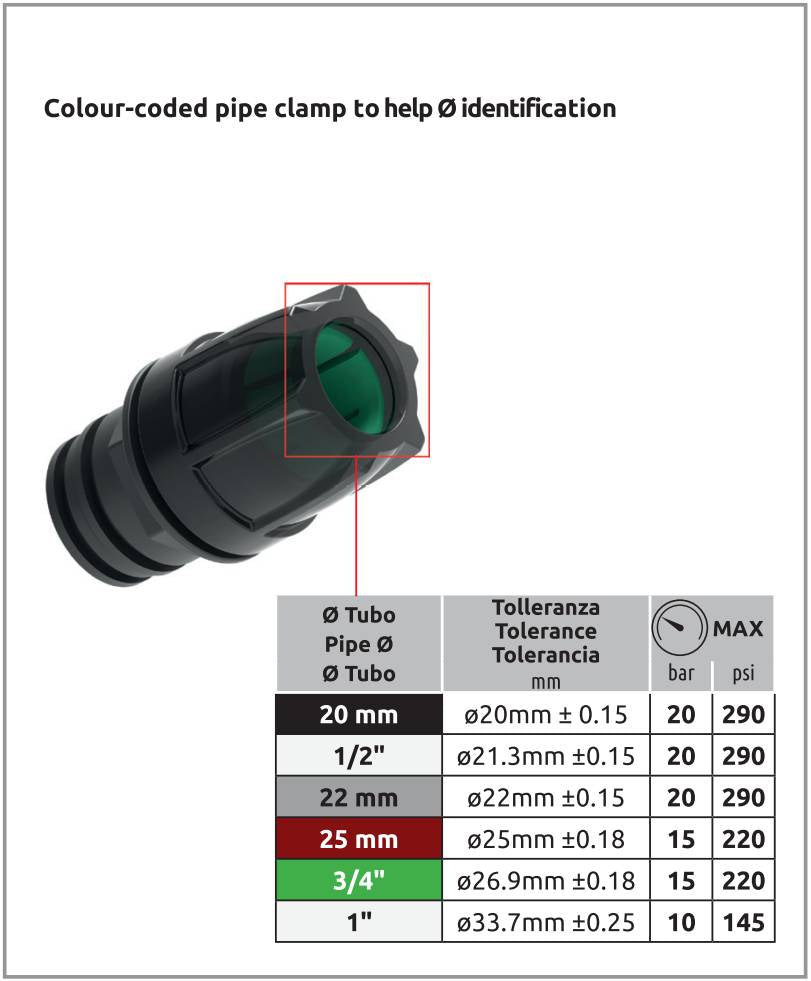

| Tolerance | ø20mm ± 0.15 mm |
| Pipe Ø | 20 mm |
| MAX Pressure | 20 bar |
