Electromagnetic Flowmeters

20 products

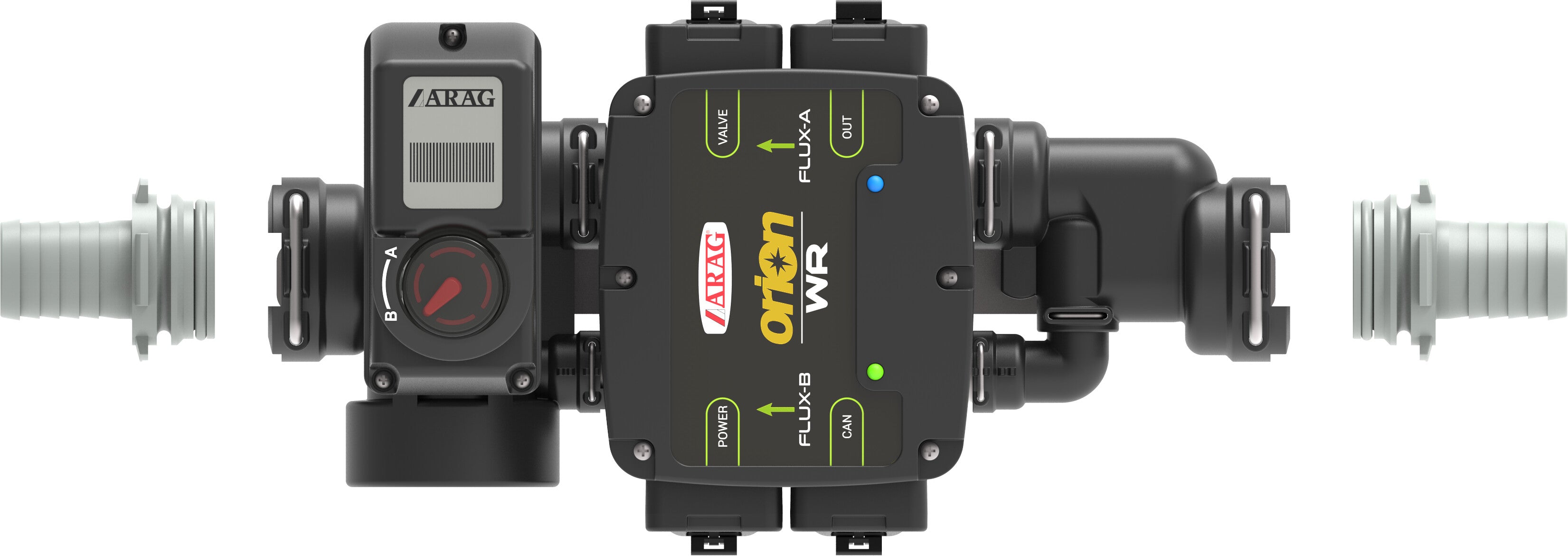

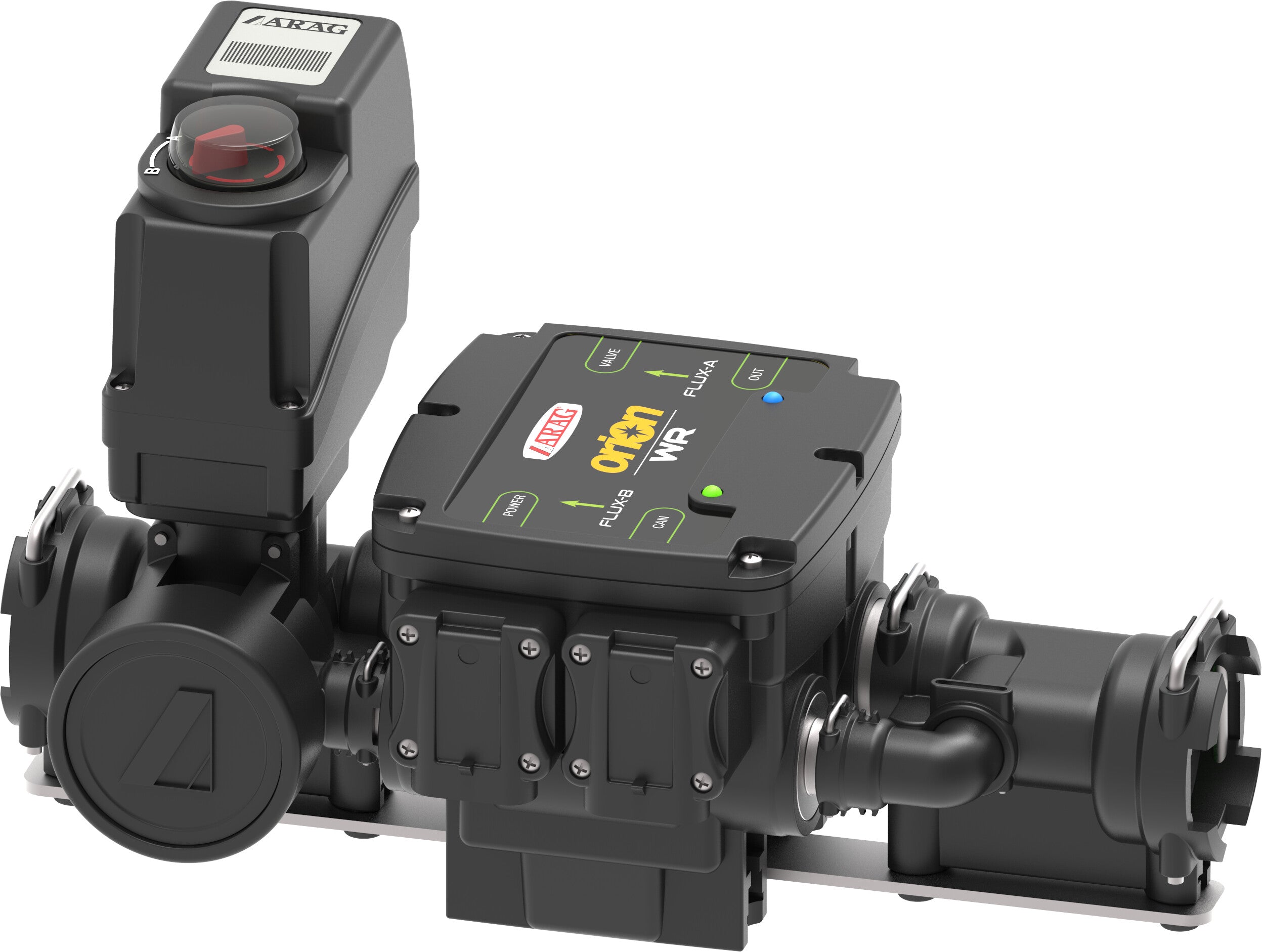

ORION Wide Range flowmeterORION Wide Range flowmeter
ORION Wide Range flowmeter

Orion WR is a system that allows measuring a very wide flowrate range, thus solving the problem of spraying machines that require the measurement of the flowrate of the entire boom as that of a single nozzle.
The system consists of a diverter valve and two electromagnetic flowmeters with contiguous measuring ranges.
Integrated electronics detect the flowrate and activate the valve to select the appropriate channel for the flowrate to be measured.

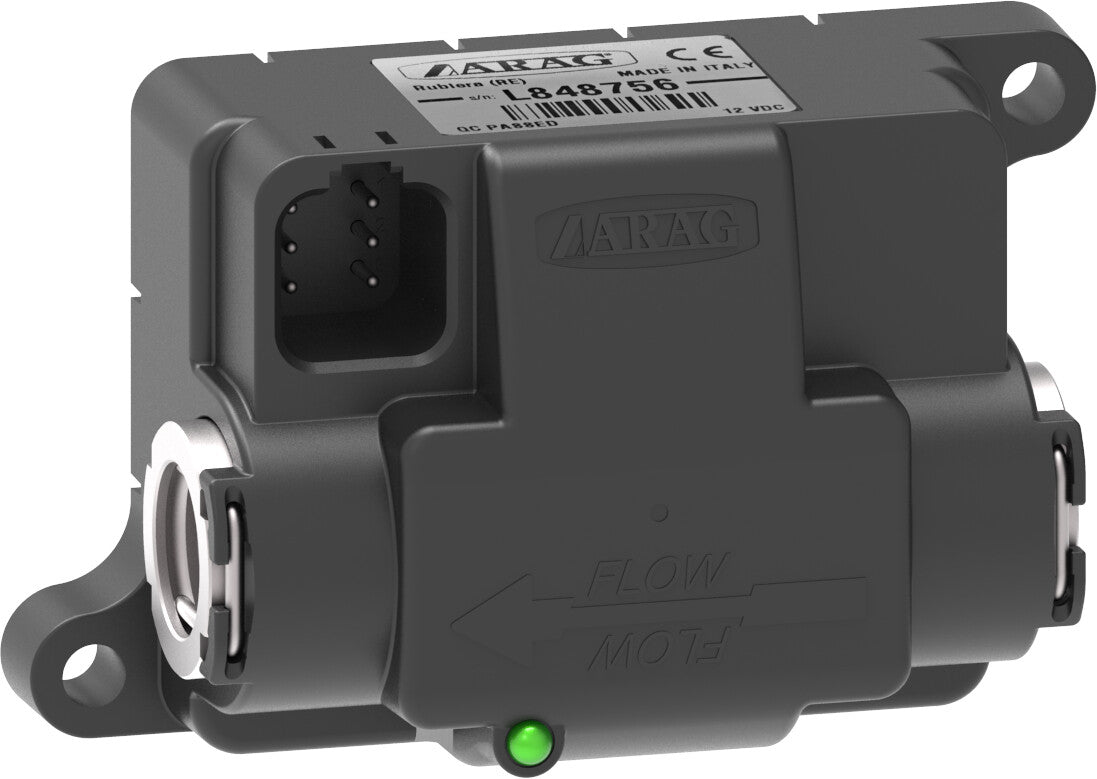

ORION 3 electro-magnetic flow meter with fork coupling
ORION 3 electro-magnetic flow meter with fork coupling

Orion 3 is an electromagnetic flowmeter designed to manage liquid distribution systems on seeders.
Several flowmeters can be connected via the CAN-Bus port to monitor all seeding lines.
Each Orion 3 can control a valve to manage the output flowrate.

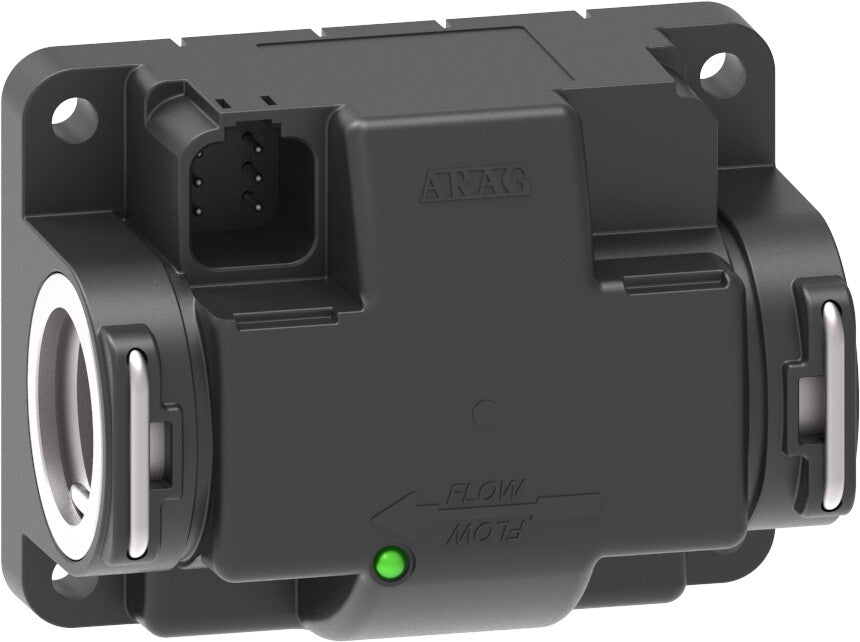

ORION 3 high-flow electro-magnetic flow meter with fork connection
ORION 3 high-flow electro-magnetic flow meter with fork connection

Orion 3 is an electromagnetic flowmeter designed to manage liquid distribution systems on seeders.
Several flowmeters can be connected via the CAN-Bus port to monitor all seeding lines.
Each Orion 3 can control a valve to manage the output flowrate.

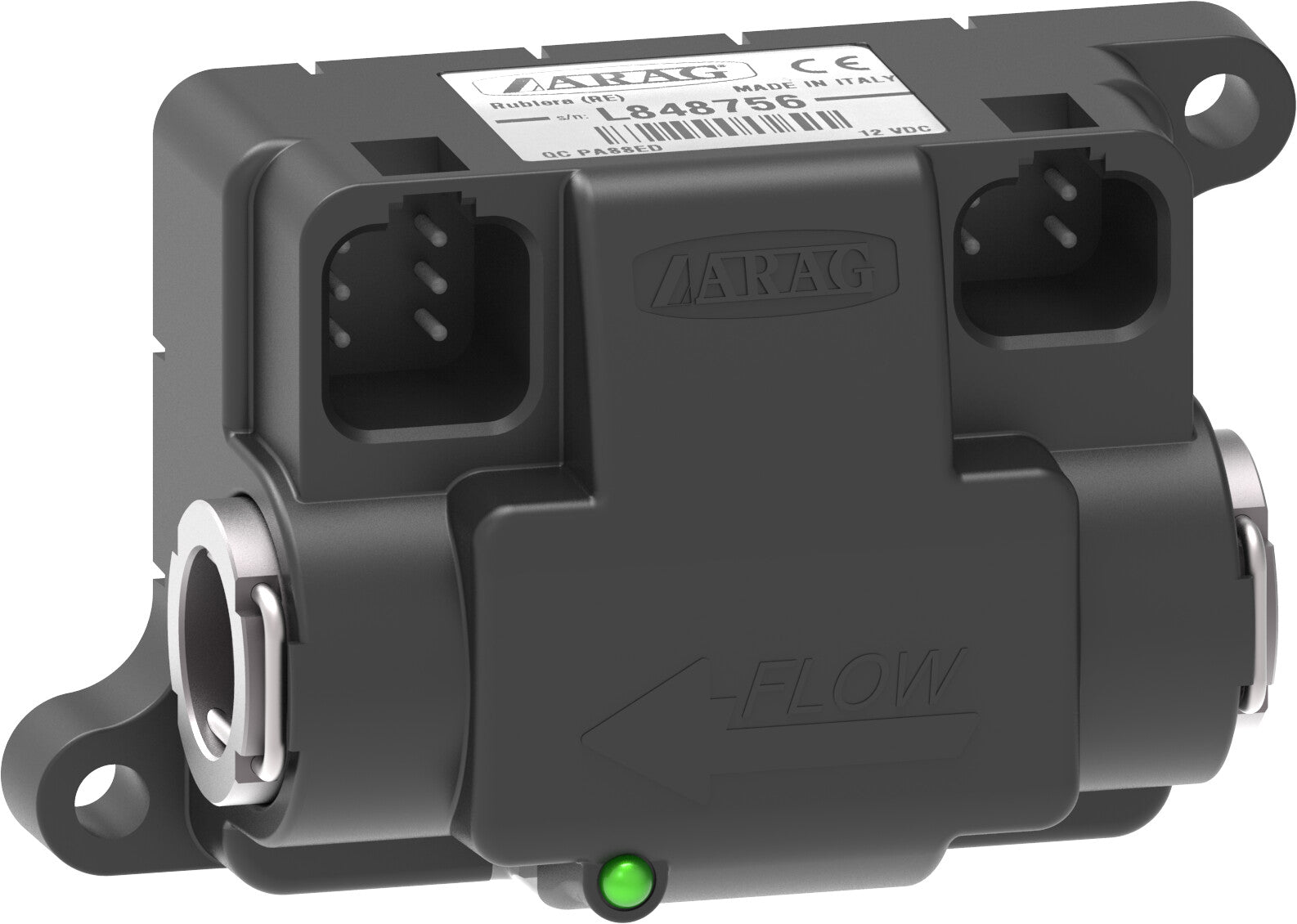

ORION 3 PLUS electro-magnetic flow meter with fork coupling
ORION 3 PLUS electro-magnetic flow meter with fork coupling

Orion 3 PLUS is an electromagnetic flowmeter designed to manage liquid distribution systems on seeders.
Several flowmeters can be connected via the CAN-Bus port to monitor all seeding lines.
Each Orion 3 can control a valve to manage the output flowrate.

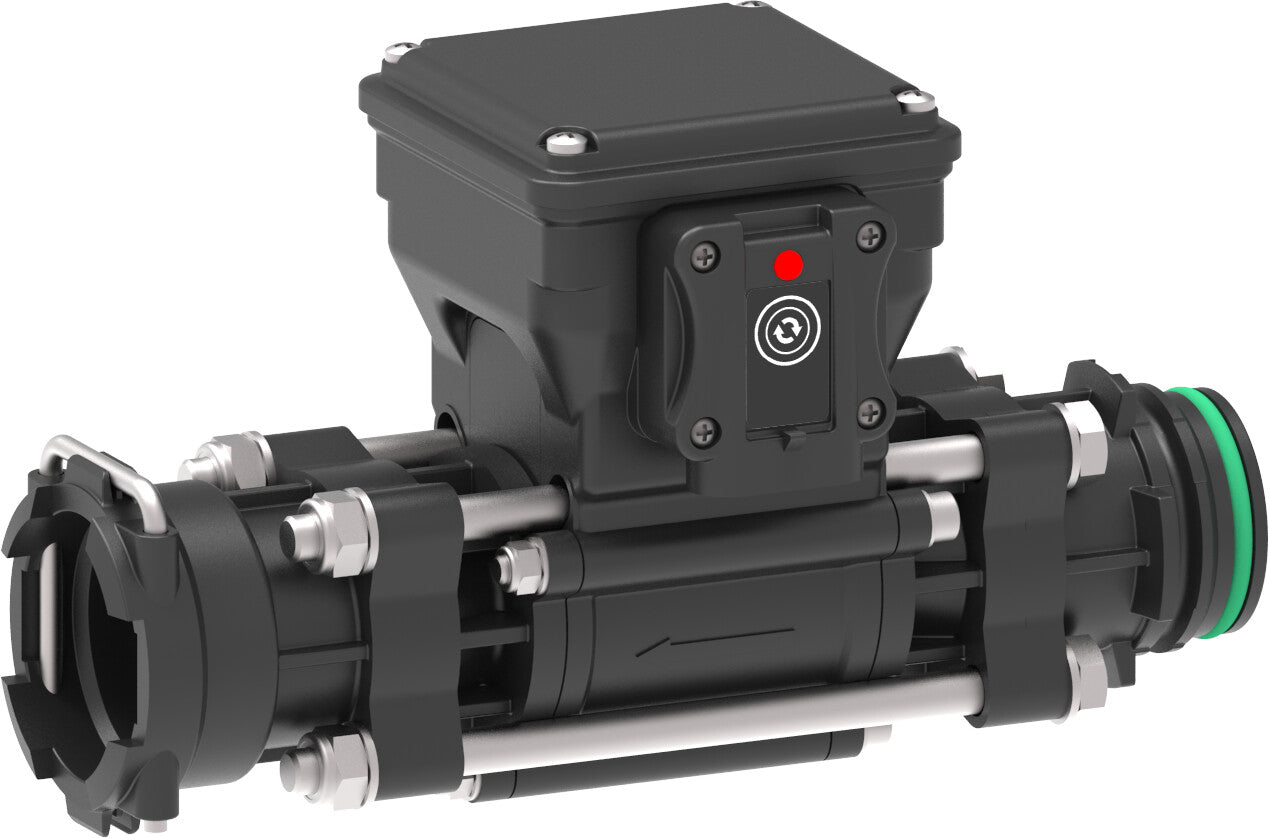

ORION 2+ electro-magnetic flow meter with fork coupling
ORION 2+ electro-magnetic flow meter with fork coupling

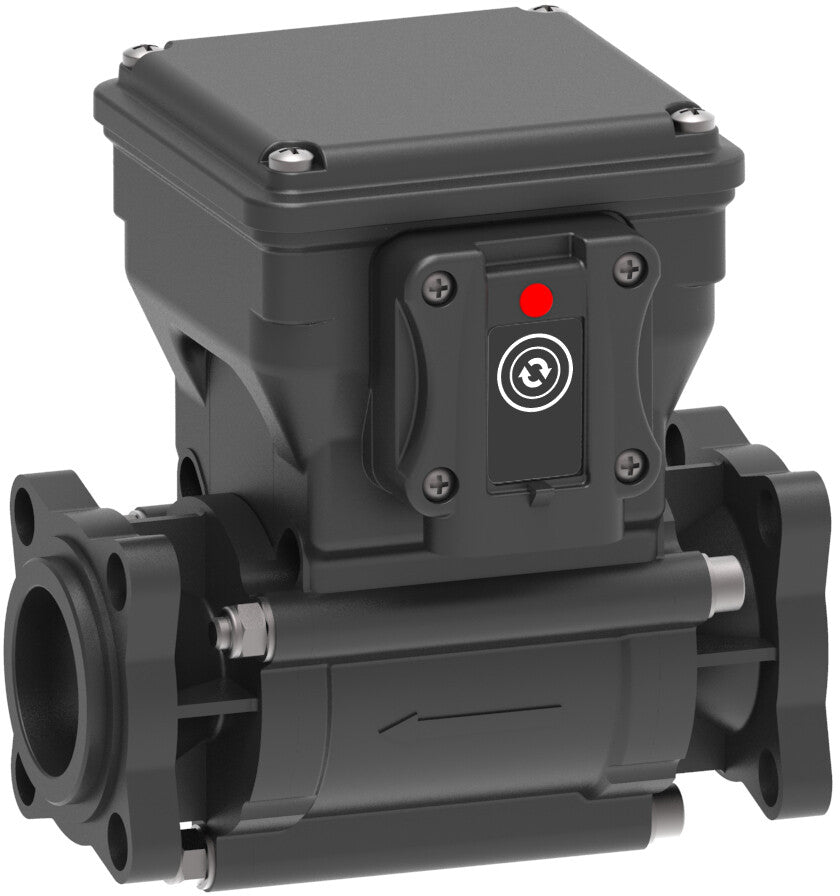

ORION 2+ Electro-magnetic flowmeters with flanged coupling
ORION 2+ Electro-magnetic flowmeters with flanged coupling

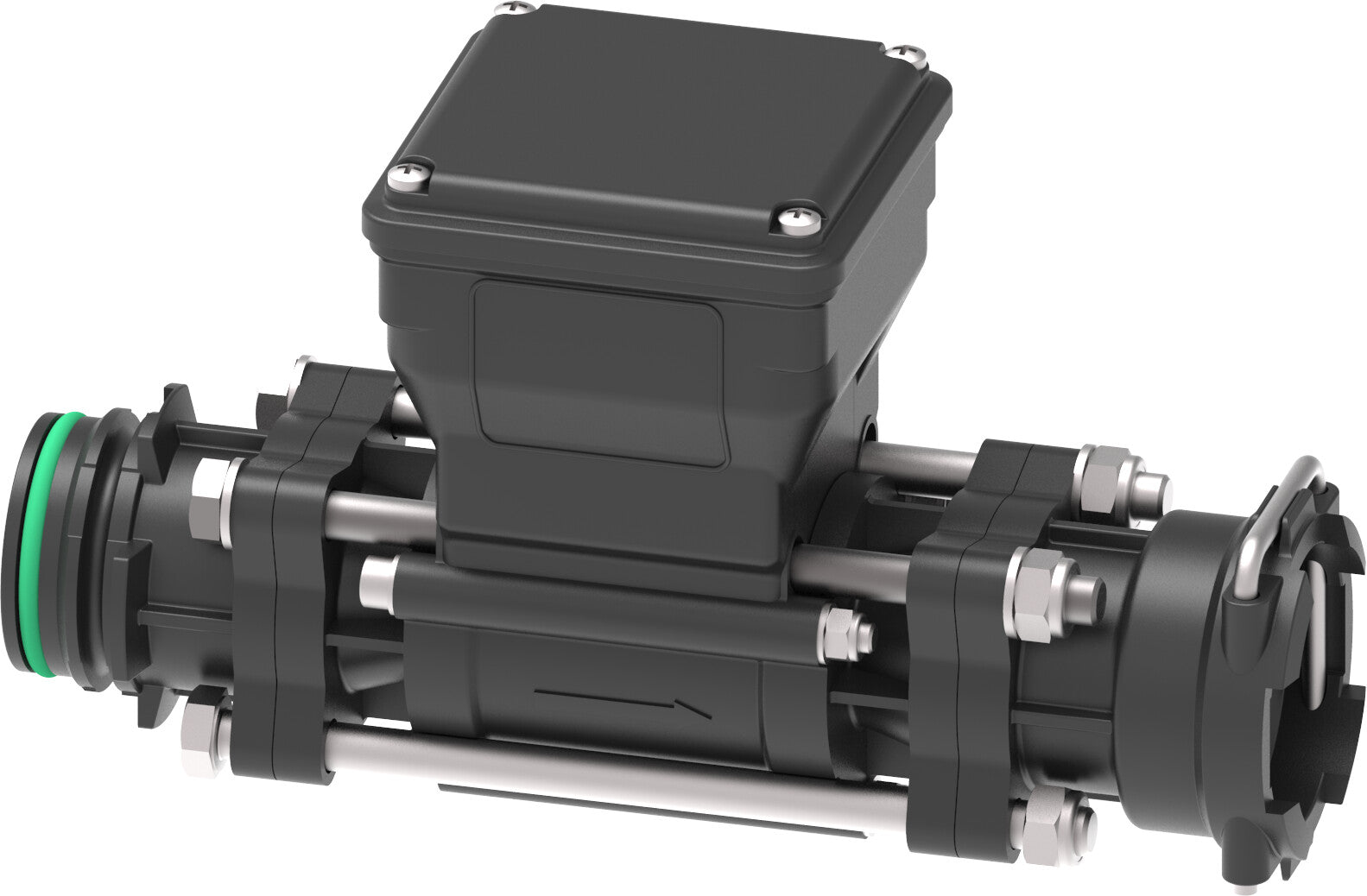

ORION 2 electro-magnetic flow meter with fork coupling
ORION 2 electro-magnetic flow meter with fork coupling
Code Flow rate (T) Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Fork Coupling (T) Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Fork Coupling (T) Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
46211A3A5B5 T5 M/F 5 ÷ 100 l/min 20 bar 0.5 bar 14 mm 600 pls/l Teflon® £692.84 View
46211A4A5B5 T5 M/F 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® £692.84 View
46221A5B6A6 T6 M/F 20 ÷ 400 l/min 12 bar 0.2 bar 28 mm 150 pls/l PPFV £599.28 View

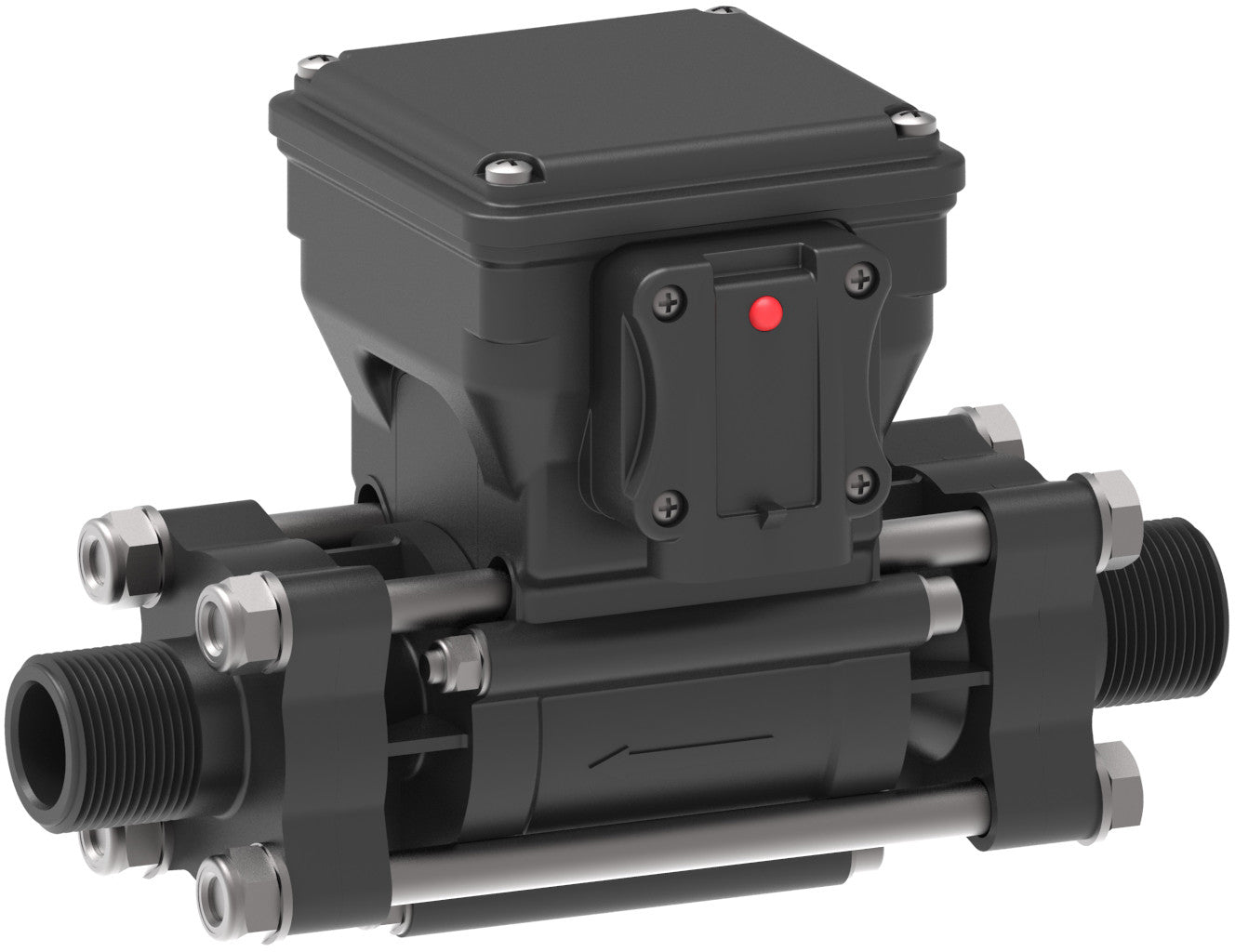

ORION 2 Electro-magnetic flowmeters with threaded coupling in fiberglass reinforced Nylon
ORION 2 Electro-magnetic flowmeters with threaded coupling in fiberglass reinforced Nylon
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
46221A71717 40 ÷ 800 l/min 20 bar 0.5 bar 28 mm 75 pls/l PPFV G 2" M BSP £670.85 View
46221A61717 30 ÷ 600 l/min 20 bar 0.5 bar 28 mm 100 pls/l PPFV G 2" M BSP £710.03 View
46221A61616 30 ÷ 600 l/min 20 bar 0.5 bar 28 mm 100 pls/l PPFV G 11/2" M BSP £710.03 View
46221A51616 20 ÷ 400 l/min 20 bar 0.2 bar 28 mm 150 pls/l PPFV G 11/2" M BSP £692.84 View
46221A51515 20 ÷ 400 l/min 20 bar 0.2 bar 28 mm 150 pls/l PPFV G 11/4" M BSP £692.84 View
46211A41515 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 11/4" M BSP £692.84 View
46211A41414 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 1" M BSP £692.84 View
46211A31414 5 ÷ 100 l/min 20 bar 0.5 bar 14 mm 600 pls/l Teflon® G 1" M BSP £692.84 View
46211A21313 2.5 ÷ 50 l/min 20 bar 0.5 bar 10 mm 1200 pls/l Teflon® G 3/4" M BSP £692.84 View
46211A11313 1 ÷ 20 l/min 20 bar 0.3 bar 7 mm 3000 pls/l Teflon® G 3/4" M BSP £692.84 View
46211A01313 0.5 ÷ 10 l/min 20 bar 0.3 bar 5 mm 6000 pls/l Teflon® G 3/4" M BSP £692.84 View

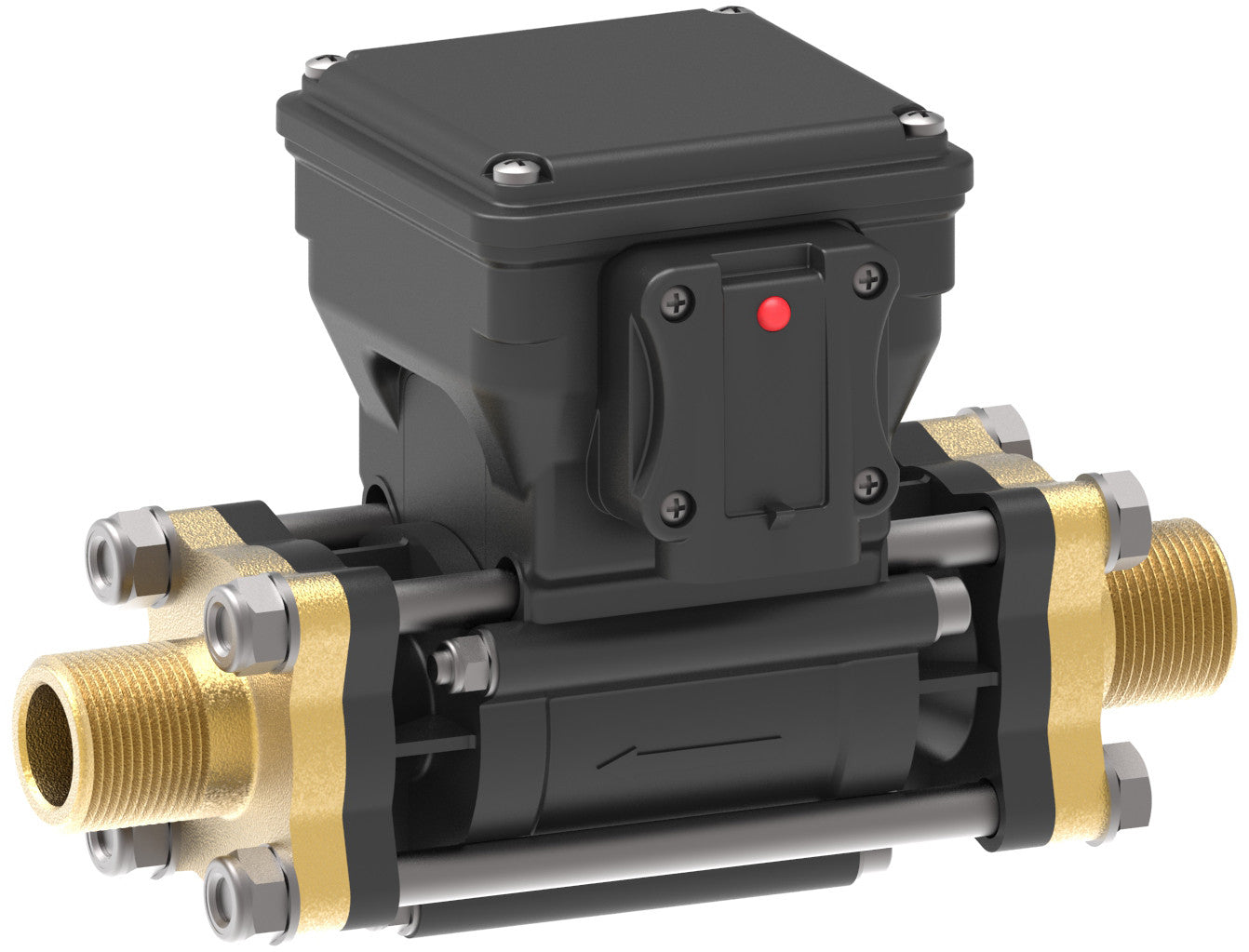

ORION 2 Electro-magnetic flowmeters with threaded coupling in brass
ORION 2 Electro-magnetic flowmeters with threaded coupling in brass
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
46211A03333 0.5 ÷ 10 l/min 40 bar 0.3 bar 5 mm 6000 pls/l Teflon® G 3/4" M BSP £710.03 View
46211A13333 1 ÷ 20 l/min 40 bar 0.3 bar 7 mm 3000 pls/l Teflon® G 3/4" M BSP £710.03 View
46211A23333 2.5 ÷ 50 l/min 40 bar 0.5 bar 10 mm 1200 pls/l Teflon® G 3/4" M BSP £710.03 View
46211A33434 5 ÷ 100 l/min 40 bar 0.5 bar 14 mm 600 pls/l Teflon® G 1" M BSP £710.03 View
46211A43434 10 ÷ 200 l/min 40 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 1" M BSP £710.03 View

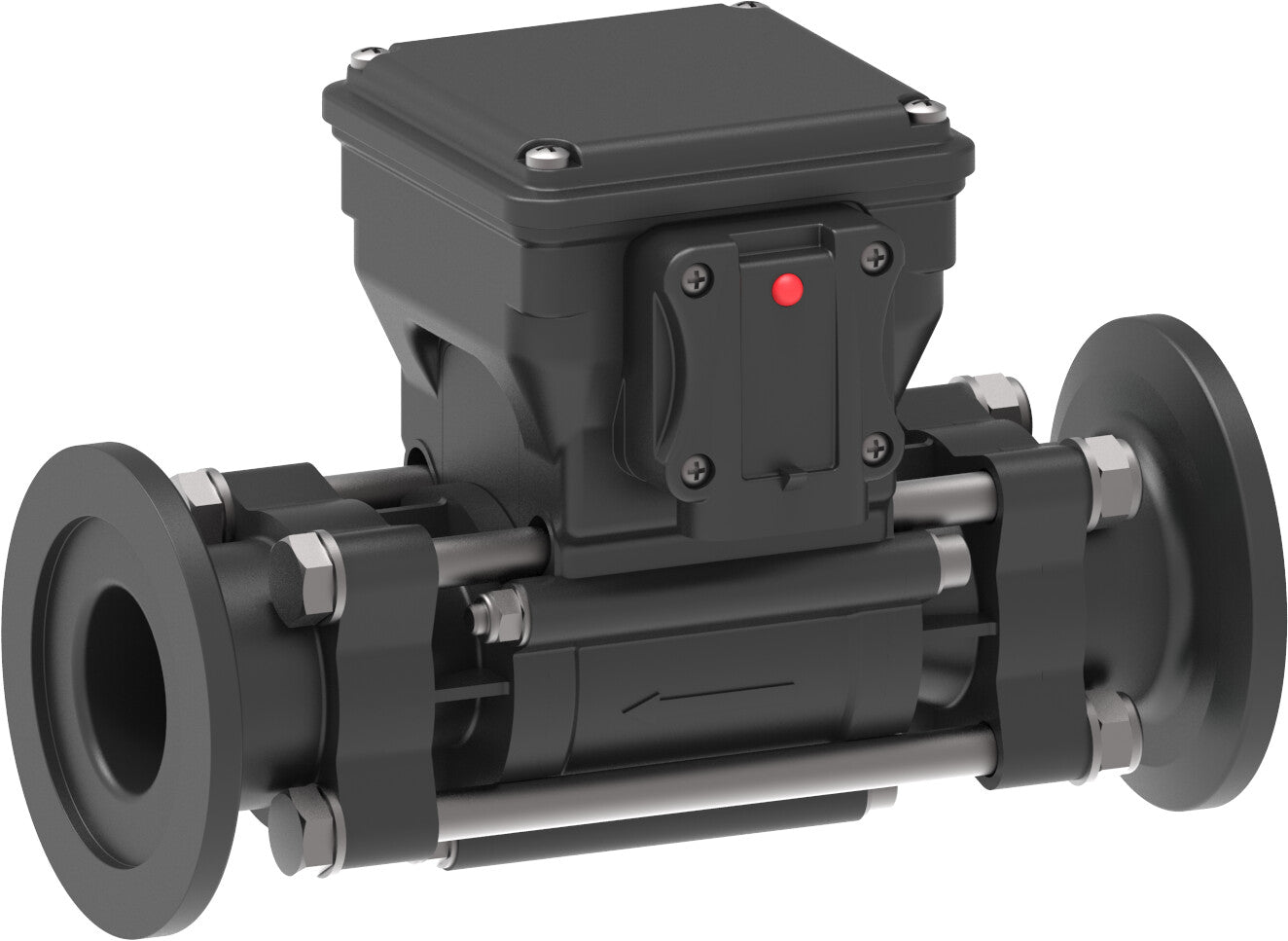

ORION 2 Electro-magnetic flowmeters with clamp coupling
ORION 2 Electro-magnetic flowmeters with clamp coupling

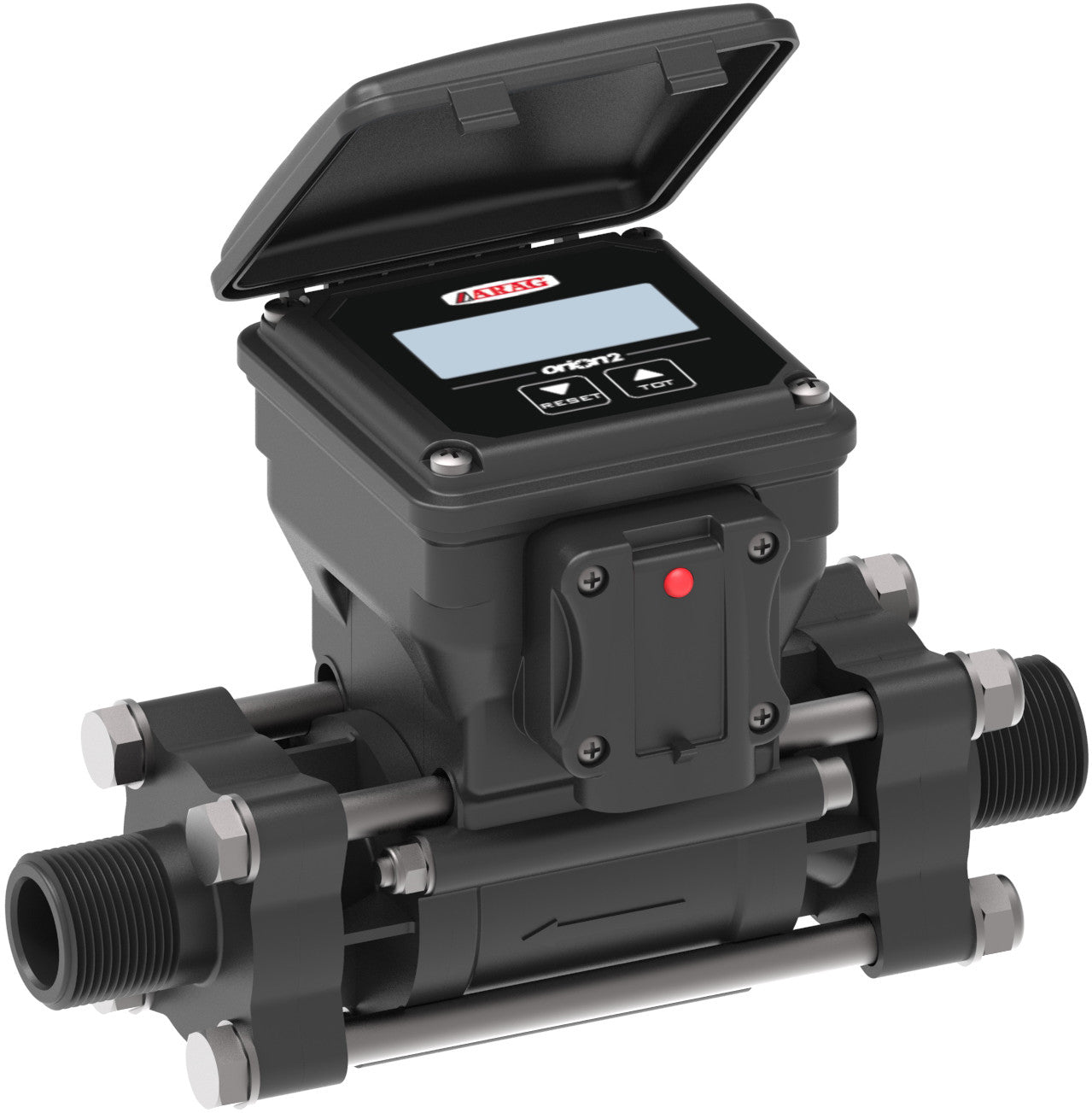

ORION 2 VISUAL FLOW Electro-magnetic flowmeters with threaded coupling in fiberglass reinforced Nylon
ORION 2 VISUAL FLOW Electro-magnetic flowmeters with threaded coupling in fiberglass reinforced Nylon
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate20 MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
46212AG1313 0.3 ÷ 6 l/min 20 bar 0.3 bar 4 mm 6000 pls/l Teflon® G 3/4" M BSP £833.96 View
46212A01313 0.5 ÷ 10 l/min 20 bar 0.3 bar 5 mm 6000 pls/l Teflon® G 3/4" M BSP £783.13 View
46212A11313 1 ÷ 20 l/min 20 bar 0.3 bar 7 mm 3000 pls/l Teflon® G 3/4" M BSP £783.13 View
46212A21313 2.5 ÷ 50 l/min 20 bar 0.5 bar 10 mm 1200 pls/l Teflon® G 3/4" M BSP £783.13 View
46212A41414 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 1" M BSP £783.13 View
46212A41515 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 1 1/4" M BSP £833.96 View
46222A51616 ÷ 400 l/min 20 bar 0.2 bar 28 mm 150 pls/l PPVF G 1 1/2" M BSP £783.13 View
46222A61616 30 ÷ 600 l/min 20 bar 0.5 bar 28 mm 100 pls/l PPVF G 1 1/2" M BSP £796.83 View
46222A61717 30 ÷ 600 l/min 20 bar 0.5 bar 28 mm 100 pls/l PPVF G 2" M BSP £848.55 View
46222A71717 40 ÷ 800 l/min 20 bar 0.5 bar 28 mm 75 pls/l PPFV G 2" M BSP £859.15 View

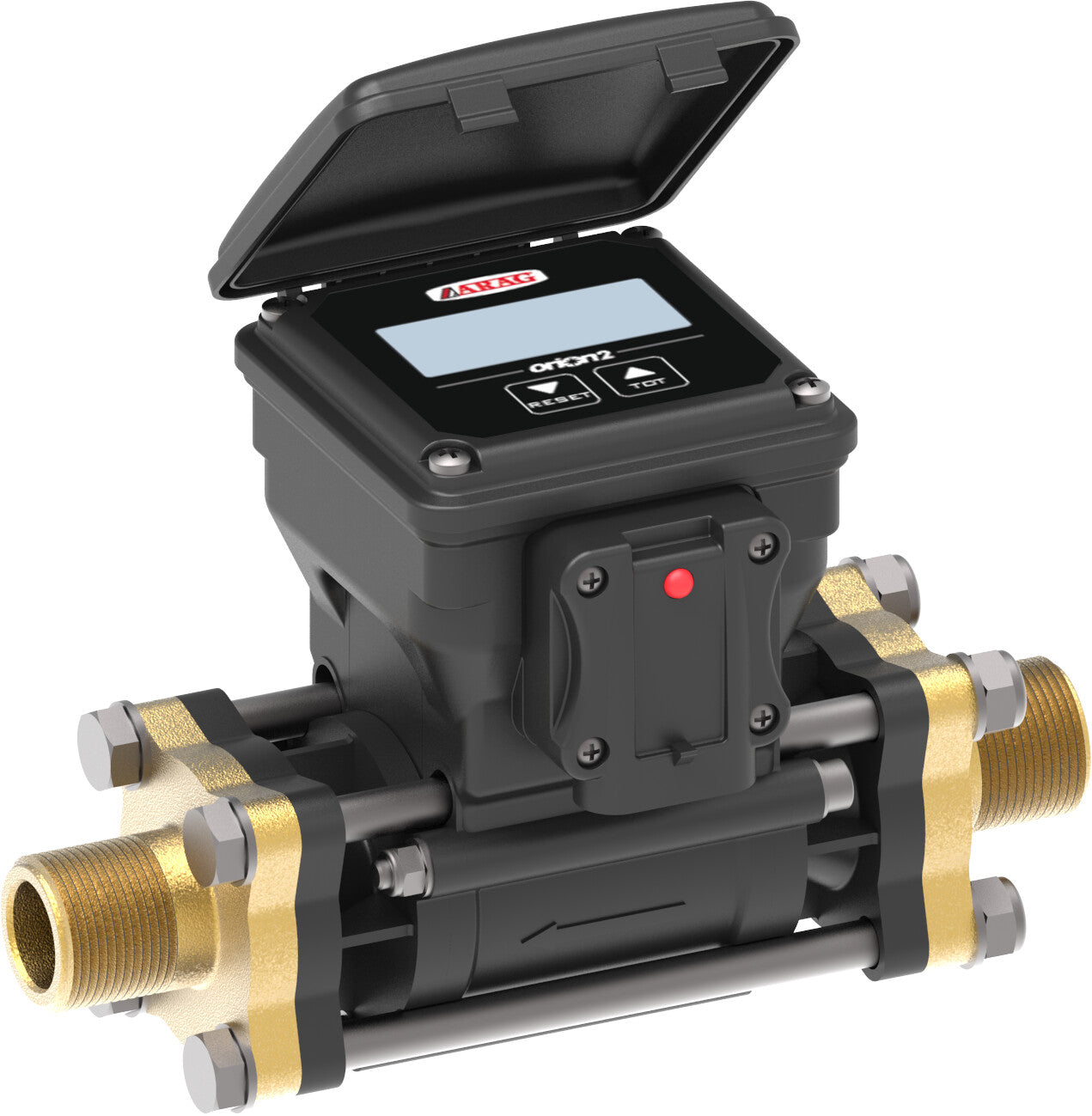

ORION 2 VISUAL FLOW Electro-magnetic flowmeters with threaded coupling in brass
ORION 2 VISUAL FLOW Electro-magnetic flowmeters with threaded coupling in brass
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type - F - Price
46212AG3333 0.3 ÷ 6 l/min 40 bar 0.3 bar 4 mm 6000 pls/l Teflon® G 3/4" M BSP £848.55 View
46212A43434 10 ÷ 200 l/min 40 bar 0.5 bar 18.5 mm 300 pls/l Teflon® G 1" M BSP £848.55 View

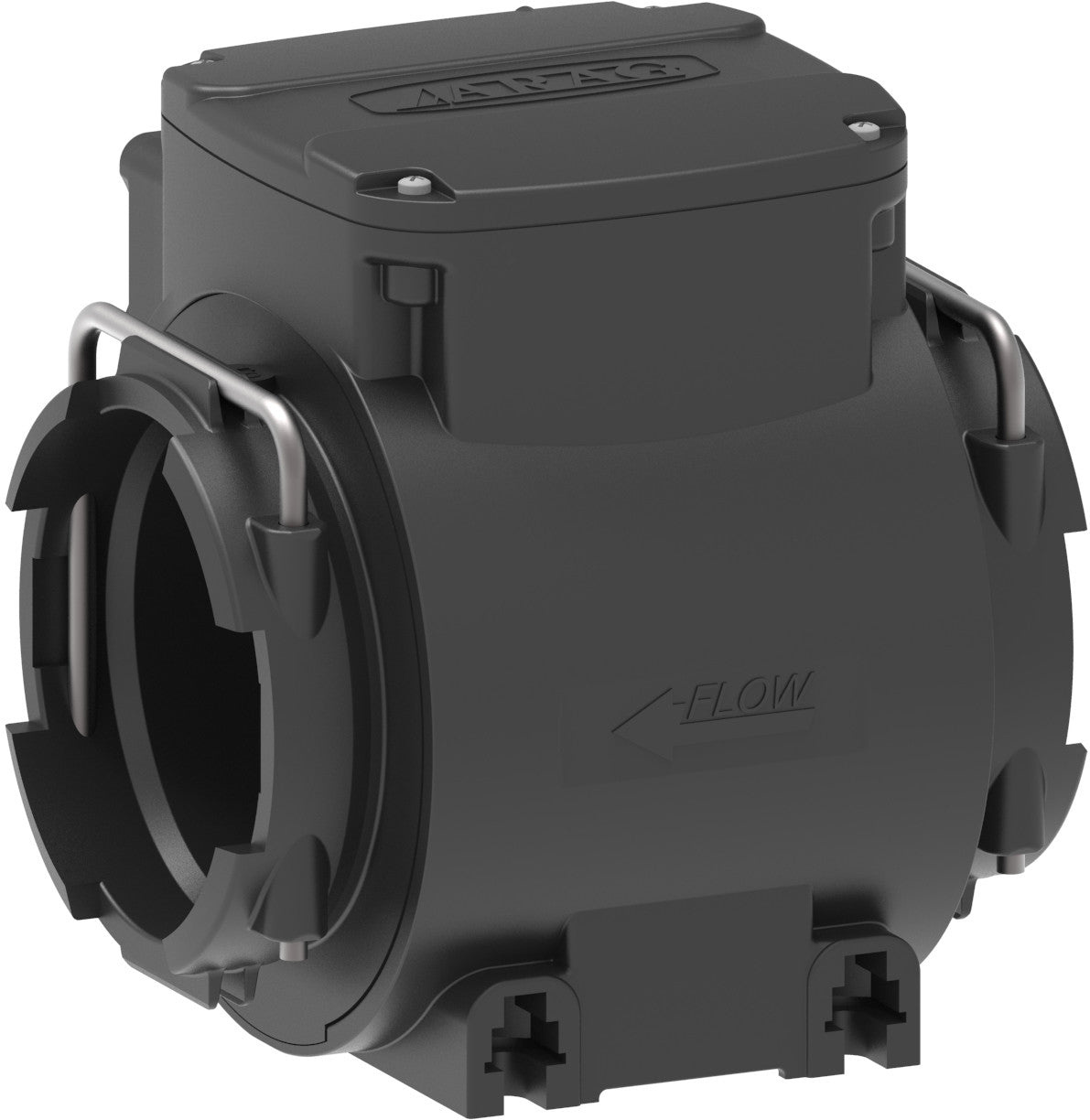

ORION X electromagnetic flowmeter with fork coupling
ORION X electromagnetic flowmeter with fork coupling
Code Fork Coupling (T) Flow rate MAX Pressure Connection Internal Passage Pulses Price
46299A90 T9 F 60 ÷ 2500 l/min 5 bar A-NET 75 mm 24 pls/l £1,270.95 View

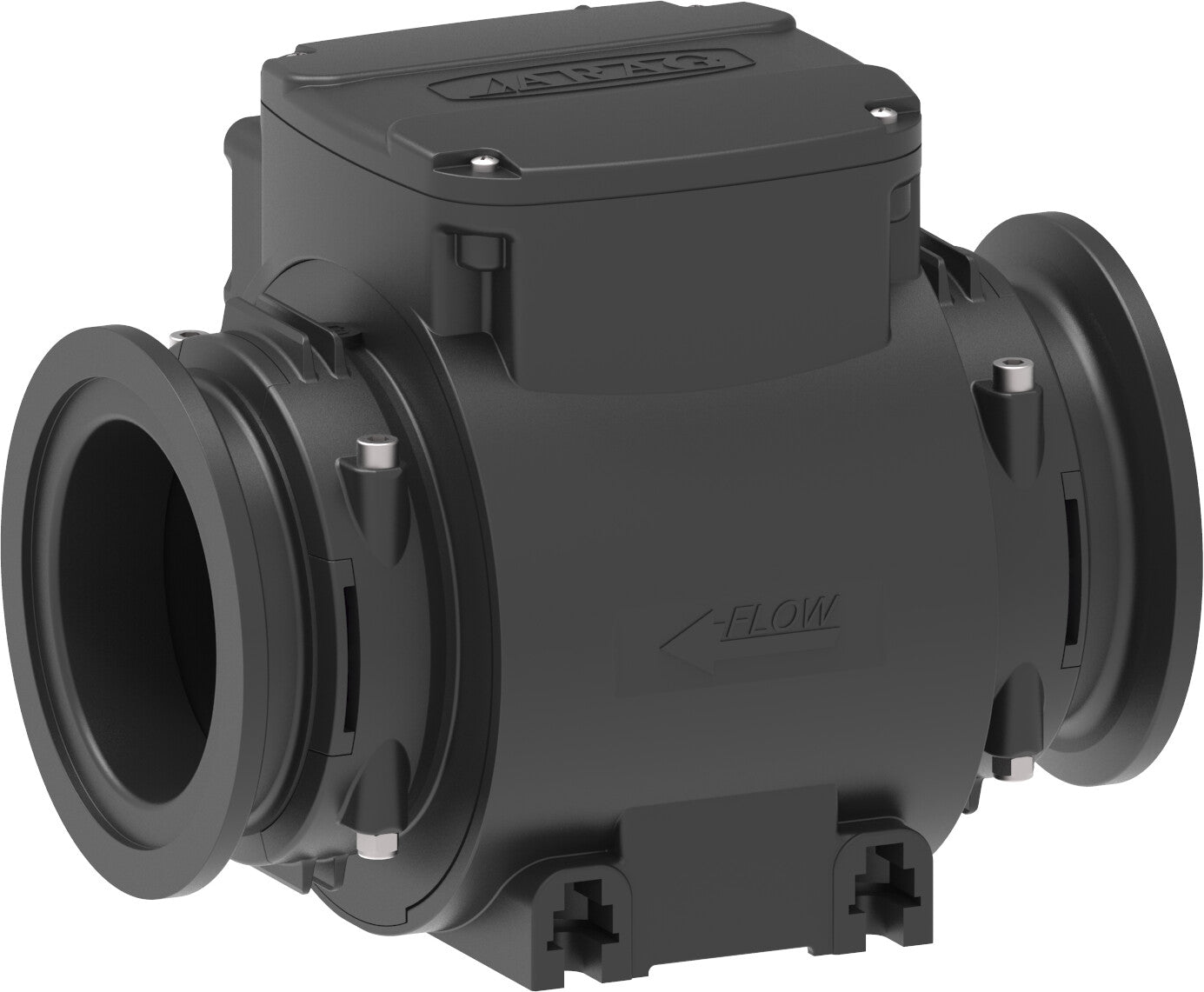

ORION X electromagnetic flowmeter with clamp coupling
ORION X electromagnetic flowmeter with clamp coupling
Code Flow rate MAX Pressure Connection Internal Passage Pulses - F - Price
46299A91 60 ÷ 2500 l/min 5 bar A-NET 75 mm 24 pls/l 3" Full Port* £1,270.95 View

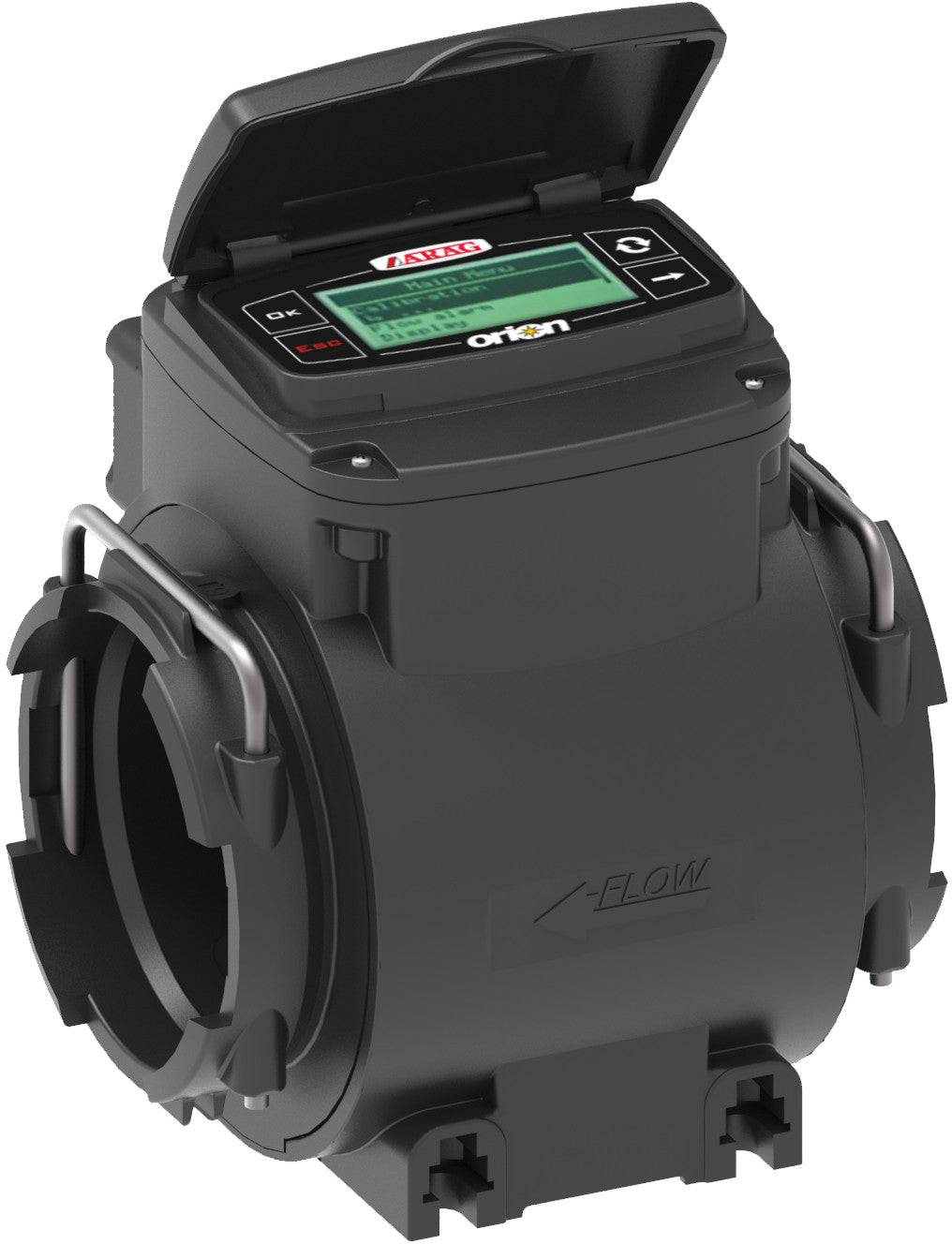

ORION X VISUALFLOW electromagnetic flowmeter with fork coupling
ORION X VISUALFLOW electromagnetic flowmeter with fork coupling
Code Fork Coupling (T) Flow rate MAX Pressure Connection Internal Passage Pulses Price
46299B90 T9 F 60 ÷ 2500 l/min 5 bar A-NET 75 mm 24 pls/l £1,540.09 View

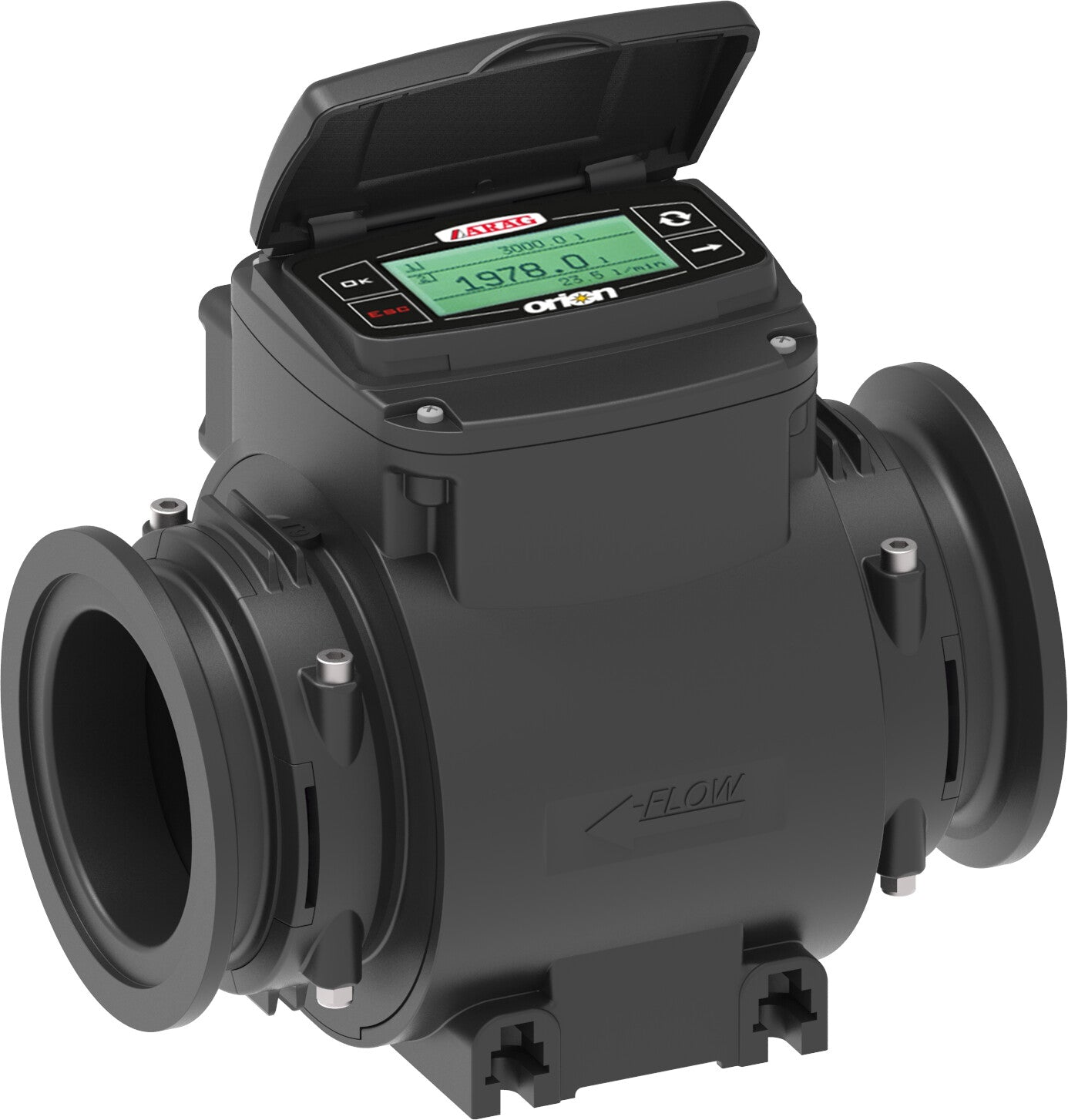

ORION X VISUALFLOW electromagnetic flowmeter with clamp coupling
ORION X VISUALFLOW electromagnetic flowmeter with clamp coupling
Code Flow rate MAX Pressure Connection Internal Passage Pulses - F - Price
46299B91 60 ÷ 2500 l/min 5 bar A-NET 75 mm 24 pls/l 3" Full Port* £1,540.09 View

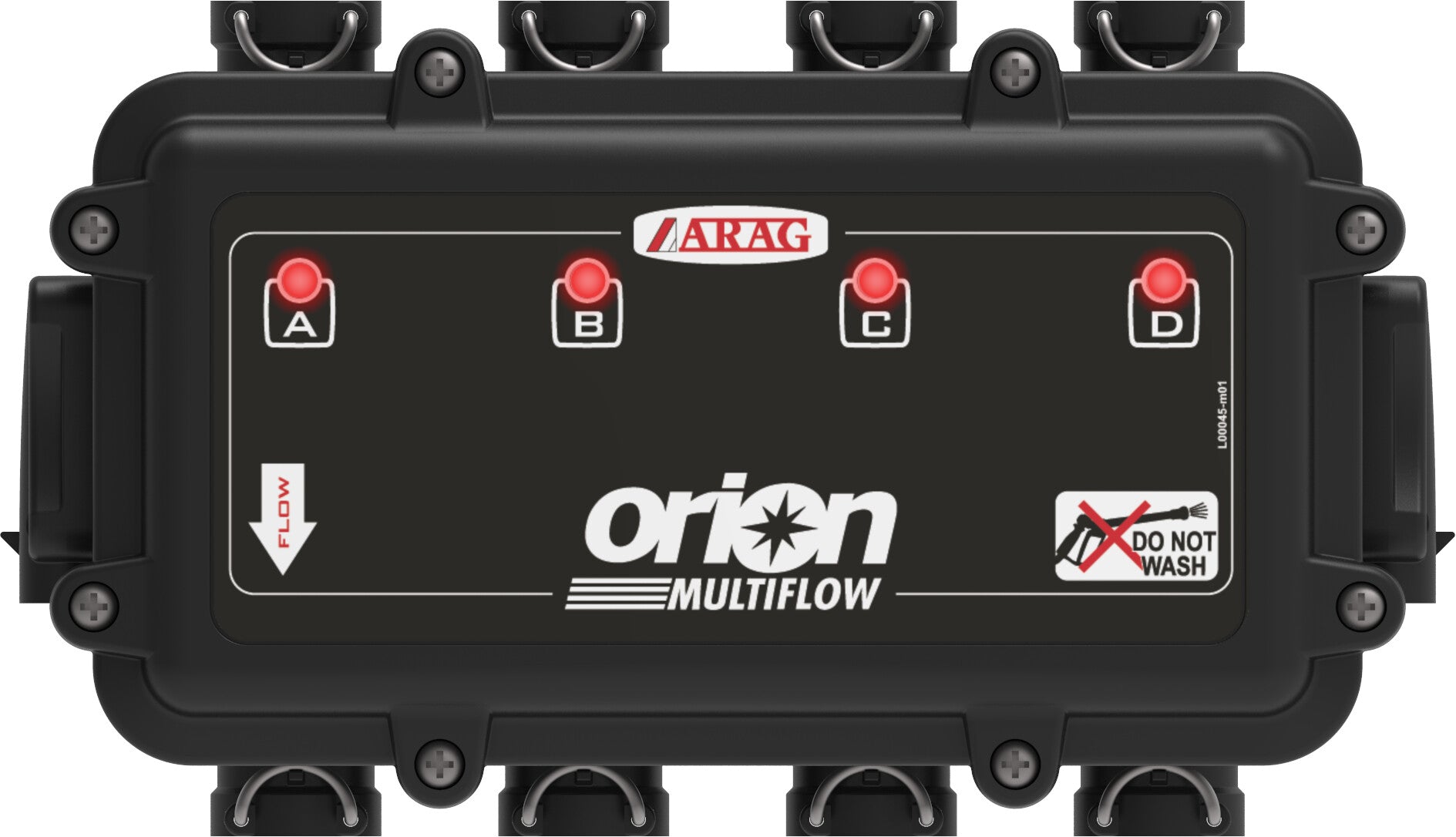

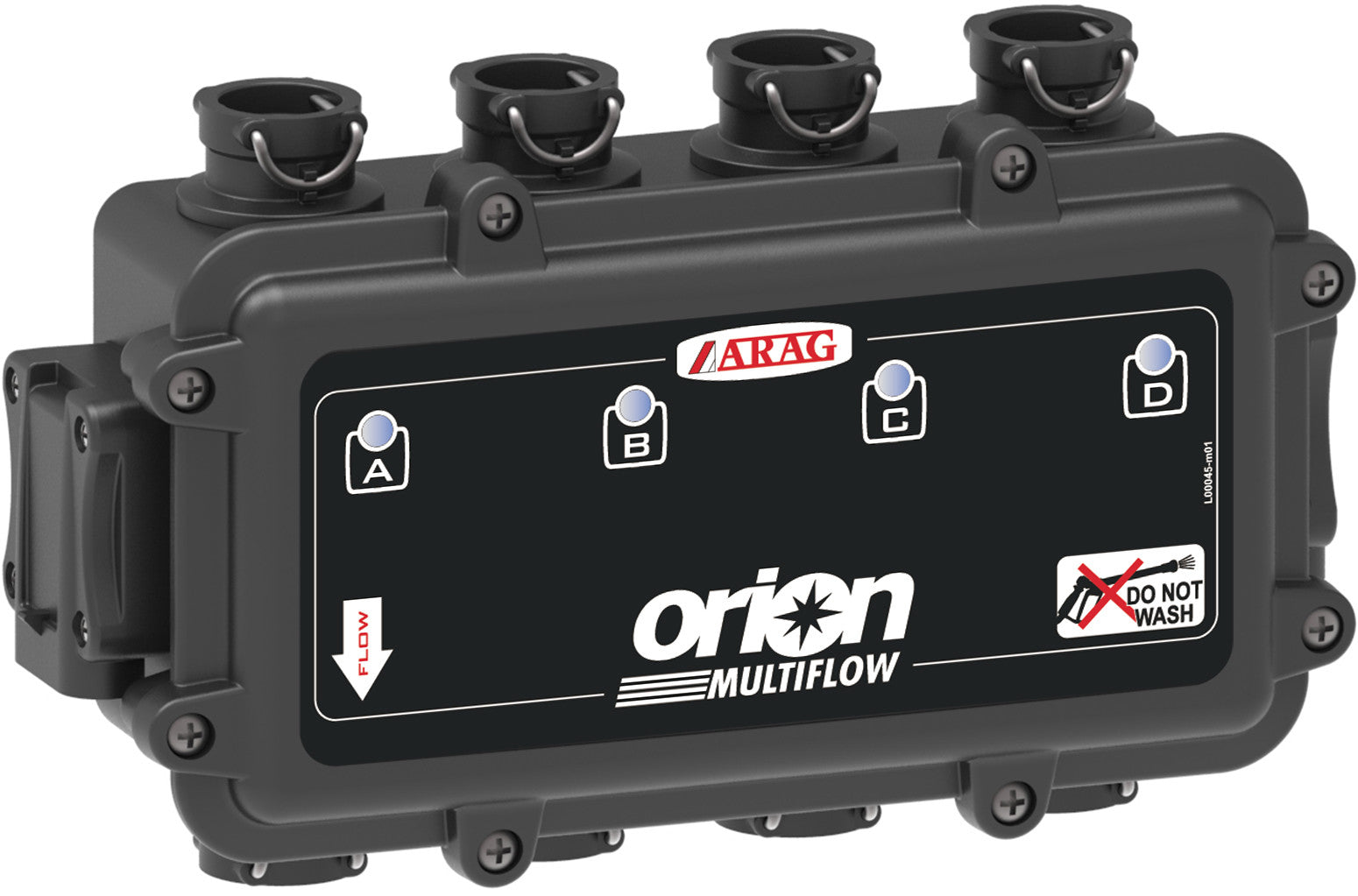

Orion Multiflow FlowmeterOrion Multiflow Flowmeter
Orion Multiflow Flowmeter

Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems.
The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.

Code Fork Coupling (T) Flow rate MAX Pressure Connection Price
Code Fork Coupling (T) Flow rate MAX Pressure Connection Price
Code Fork Coupling (T) Flow rate MAX Pressure Connection Price
4625AAGB1B1 T1 0.3 ÷ 6 l/min 20 bar A-NET £1,153.76 View
4625AA1B1B1 T1 1 ÷ 20 l/min 20 bar A-NET £1,284.21 View
4625AA2B1B1 T1 2.5 ÷ 50 l/min 20 bar A-NET £1,153.76 View
Orion Multiflow cables - A

Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems.
The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.

Code For Type Lunghezza Price
Code For Type Lunghezza Price
467491C020.521 2 Orion A 2 mt £198.31 View
467491C031.521 3 Orion A 2,5 mt £259.69 View
Orion Multiflow cables - C

Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems.
The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.
ORION 2 Electro-magnetic flowmeters with flanged coupling
ORION 2 Electro-magnetic flowmeters with flanged coupling
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
Code Flow rate MAX Pressure Pressure Drop Internal Passage Pulses Type Price
46211AG0000 0.3 ÷ 6 l/min 40 bar 0.3 bar 4 mm 6000 pls/l Teflon® £634.04 View
46211A00000 0.5 ÷ 10 l/min 40 bar 0.3 bar 5 mm 6000 pls/l Teflon® £634.71 View
46211A10000 1 ÷ 20 l/min 40 bar 0.3 bar 7 mm 3000 pls/l Teflon® £634.71 View
46211A20000 2.5 ÷ 50 l/min 40 bar 0.5 bar 10 mm 1200 pls/l Teflon® £634.71 View
46211A30000 5 ÷ 100 l/min 40 bar 0.5 bar 14 mm 600 pls/l Teflon® £634.71 View
46211AF0000 7.5 ÷ 150 l/min 40 bar 0.5 bar 16.4 mm 450 pls/l Teflon® £634.71 View
46211A40000 10 ÷ 200 l/min 40 bar 0.5 bar 18.5 mm 300 pls/l Teflon® £634.71 View
46221A40000 10 ÷ 200 l/min 20 bar 0.5 bar 18.5 mm 300 pls/l Teflon® £634.71 View
46221A50000 20 ÷ 400 l/min 20 bar 0.2 bar 28 mm 150 pls/l PPFV £634.71 View
46221A60000 30 ÷ 600 l/min 20 bar 0.5 bar 28 mm 100 pls/l PPFV £675.91 View
46221A70000 40 ÷ 800 l/min 20 bar 0.5 bar 28 mm 75 pls/l PPFV £641.00 View
