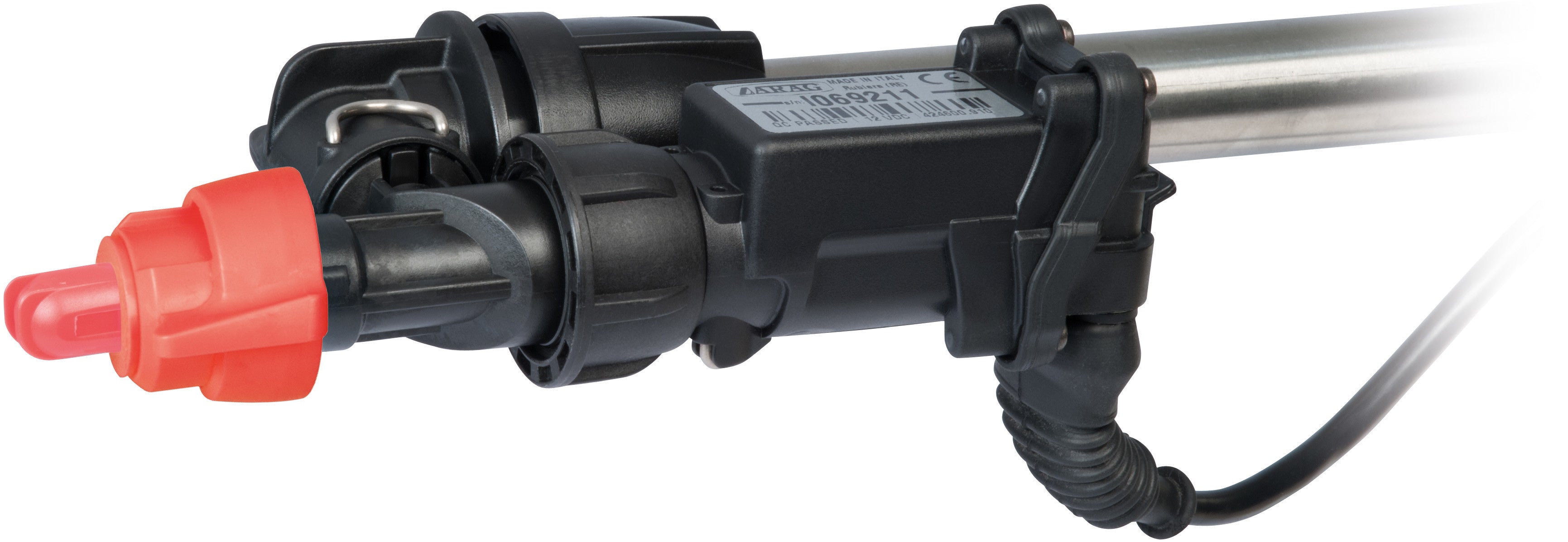

NOZ.HOLD. END BOOM D1/2 VITON
NOZ.HOLD. END BOOM D1/2 VITON
Sale price£138.47 GBP
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
- Reduced current absorption (0.32 A) limited to the time the electric valve is activated.

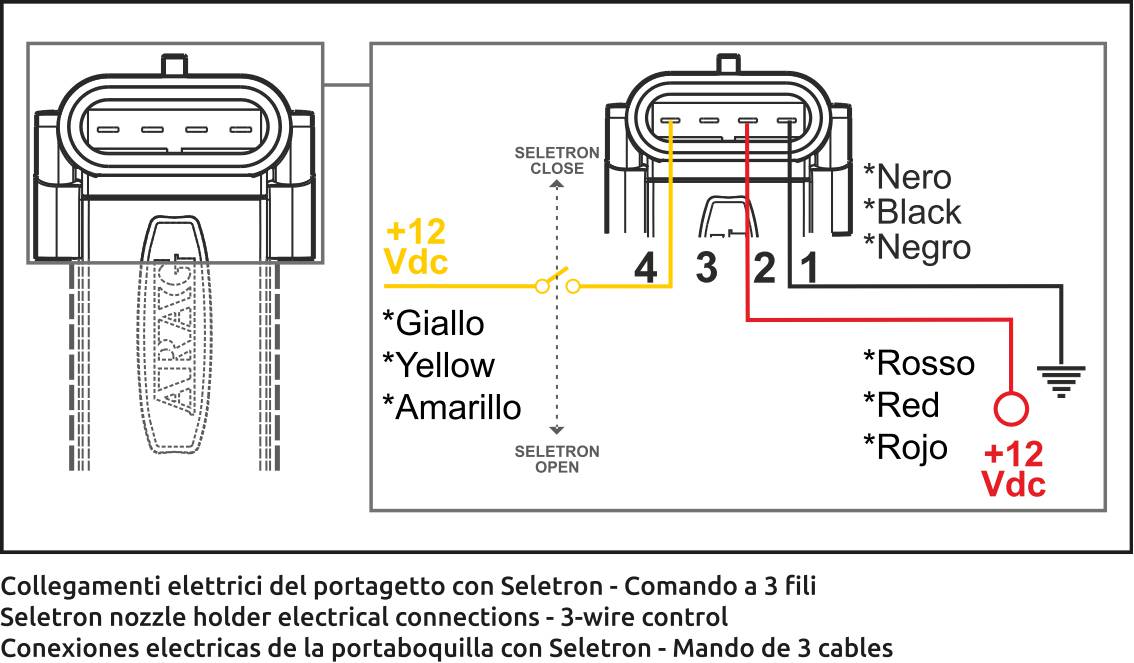

- 3-wire control (See connection diagram box)
- Adjustable angle (22.5° steps)
- Opening / closing time 0.4 sec.
- Viton® seals
- Nozzle caps to be ordered separately
- Connection to 1/2" pipe with EASYFIT quick fitting or threaded coupling
TECHNICAL FEATURES
Applications
- Boom extension nozzle body
- Greenhouse spraying
- Car washes
- Poultry farms
| Field | Value |
|---|---|
| Code | 4065T840 |
| 8 bar | |
| Type | ASYFIT |
| Sections | 1 |

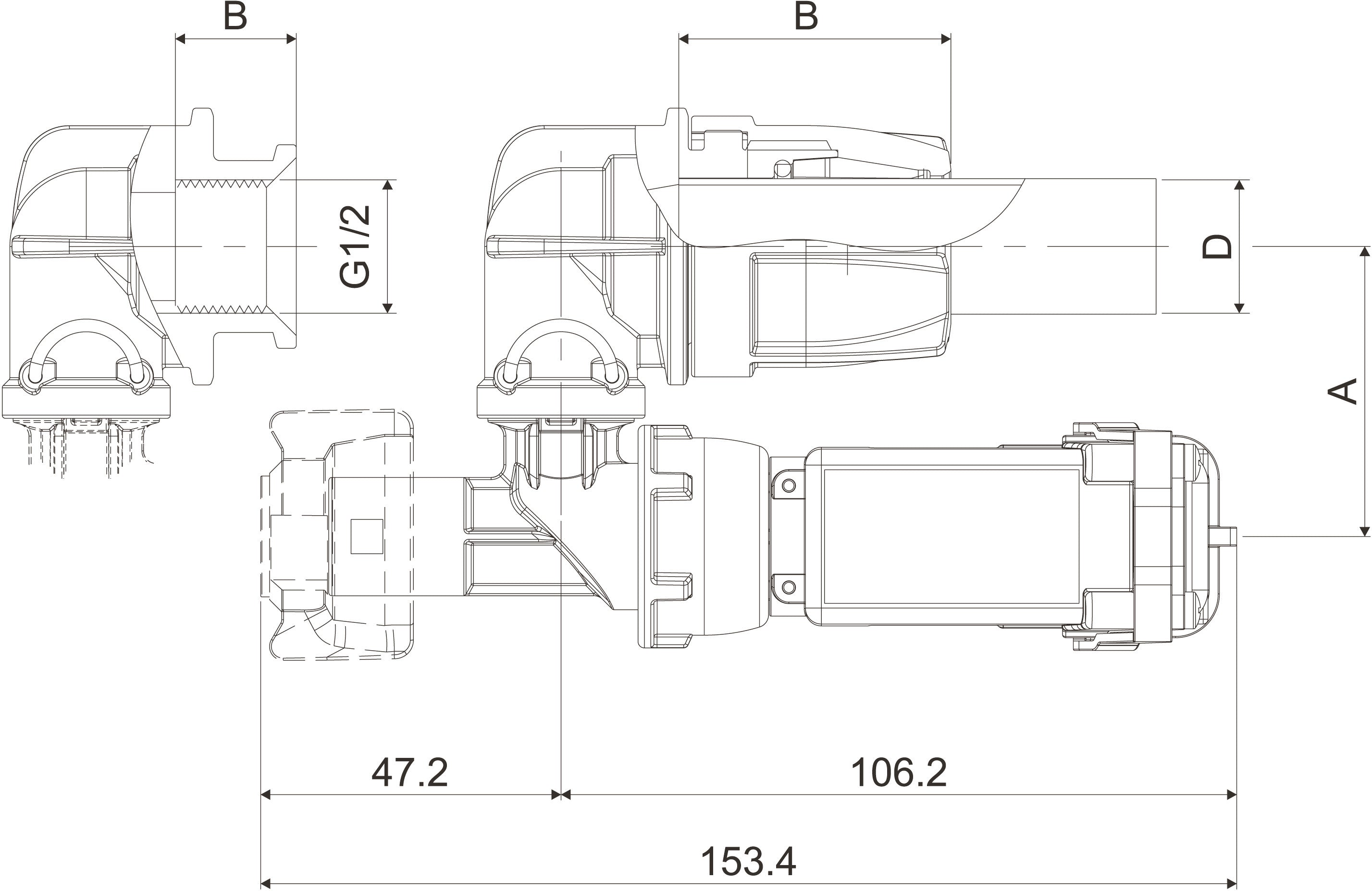

| A | 45.6 mm |
| B | 45 mm |
| Weight | 160 |
| On / Off @ 90° | 0,4 s |
| Material | Viton® |
| @ 0,5bar - 7PSI Flow rate | 4 l/min |
| -D- | 1/2" |
| Absorption @ 12 V | 0.32 A |
| Power supply voltage | 12 Vdc |
