EL.VALVE 871T 180L/M 20B
EL.VALVE 871T 180L/M 20B
Sale price£177.86 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
- fiberglass-reinforced Nylon® body
- Internal parts in Delrin® and AISI 303 stainless steel
- Gaskets made of Viton®
- Low power consumption
| Field | Value |
|---|---|
| Code | 871T502 |

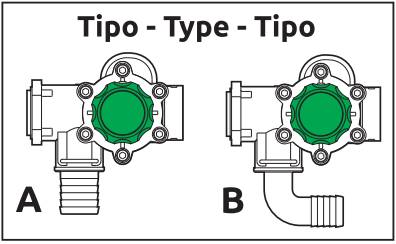

| 19 mm (A)25 mm (A-B)30 mm (A)32 mm (A)3/4" (A)1" (A)1 1/4" (A) | |

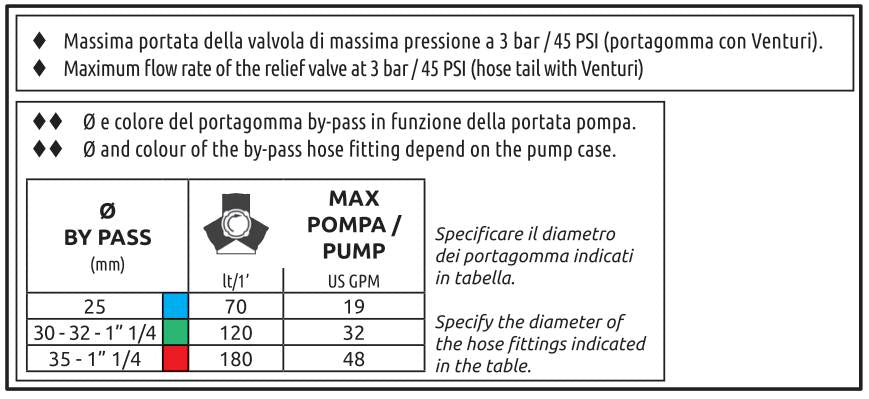

| Ø 2 | 25 mm30 mm32 mm35 mm1 1/4"♦♦ |
| Fork Coupling (T) | T5 |
| On / Off @ 90° | 0,6 sec. |
| Flow rate | 150 ♦l/min |
| MAX Pressure | 20 bar |
| Connection | T5 |
| Use for | Crop sprayers |
| Absorption @ 12 V | 0.5 A |
| Power supply voltage | 12 Vdc |
