346 Series Shutoff Valves - 2 Way
346 Series Shutoff Valves

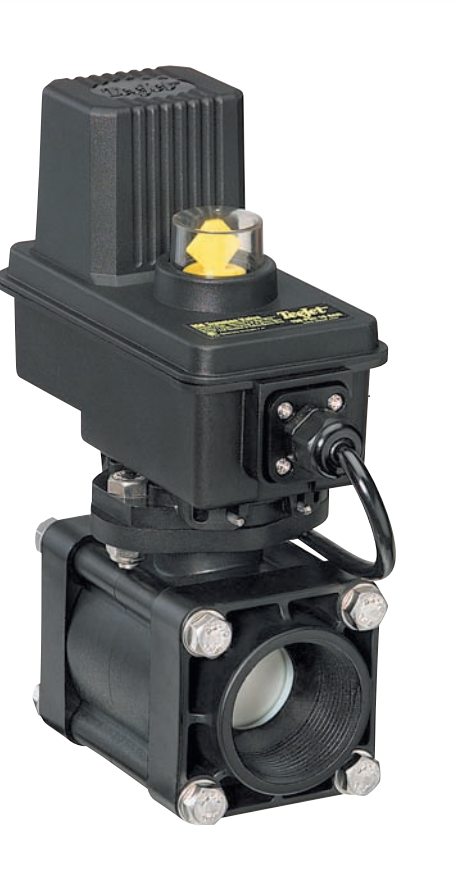

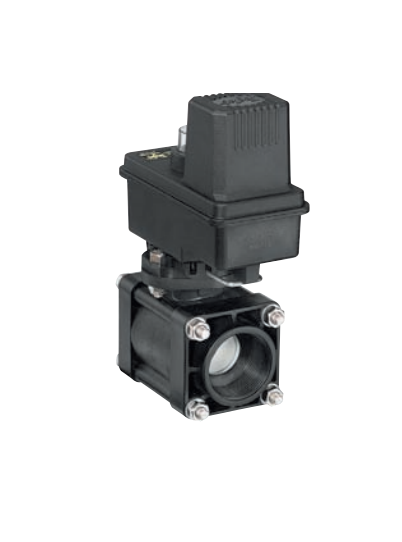

346BEC shutoff ball valves are available with E or EC series motors with cable or DIN electrical connections. See page 78 for more information on DirectoValve motors.
Features:
■ 25 RPM, 0.6 second shutoff fully open to close.
■ Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
■ The flow rate for the 346BEC 2-way valve is 100 GPM (379 l/min) with 5 PSI (0.34 bar) pressure drop, 141 GPM (534 l/min) with 10 PSI (0.69 bar) pressure drop.
■ The flow rate for the 346BEC 3-way valve is 64 GPM (242 l/min) with a 5 PSI (0.34 bar) pressure drop, 91 GPM (344 l/min) with 10 PSI (0.69 bar) pressure drop.
■ Polypropylene ball with stainless steel stem.
■ Maximum pressure rating of 150 PSI (10 bar).
■ Available with 1¼, 1½ NPT or BSPT (F) threads or 50 series flange fittings.
■ Wetted parts made of corrosion-resistant materials, glass-reinforced polypropylene, Teflon®, stainless steel and Viton®.
