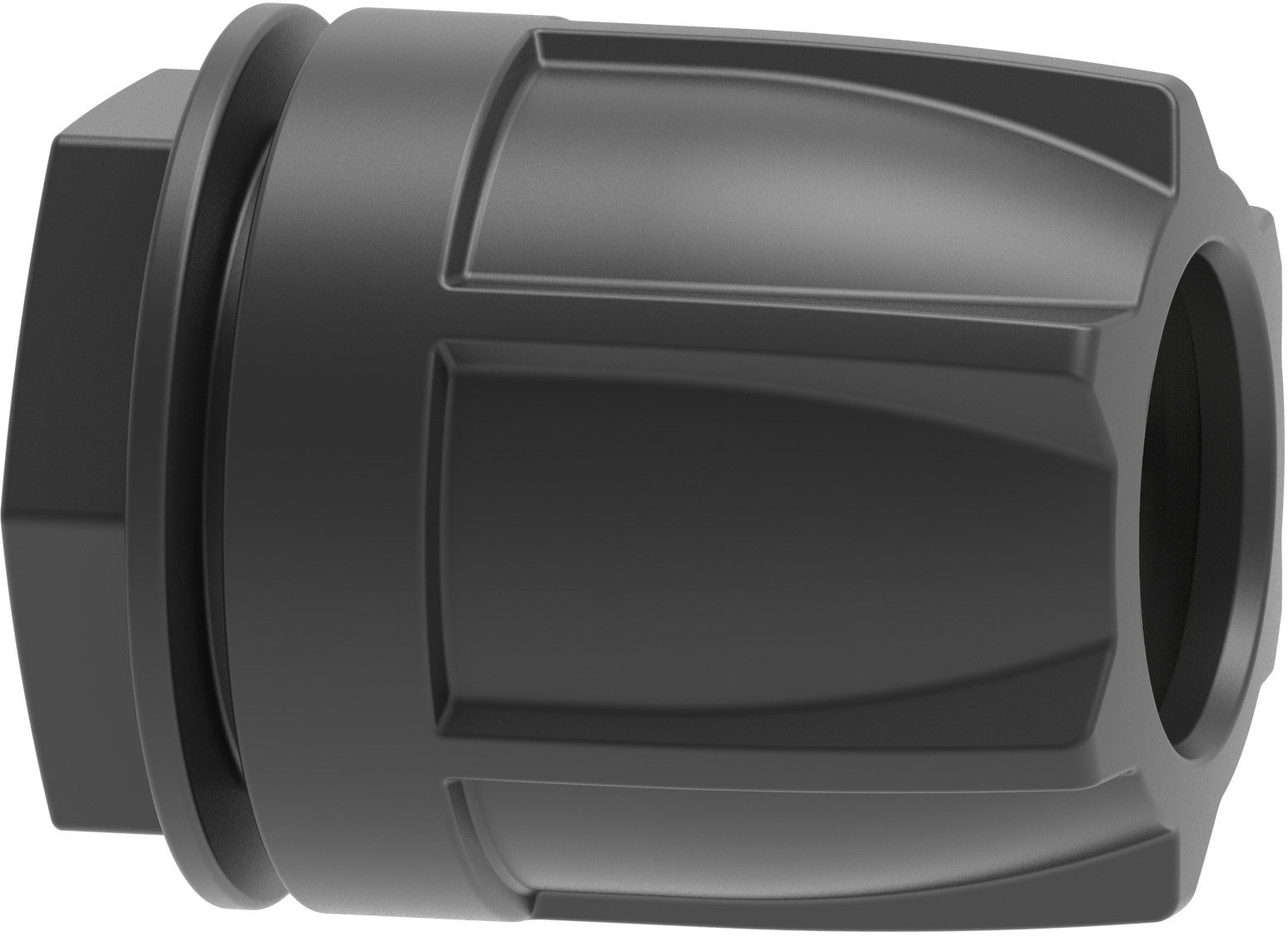

BOOM-END PLUG EASYFIT D.1inch

BOOM-END PLUG EASYFIT D.1inch
Sale price£5.52 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
TECHNICAL FEATURES
- Exclusive “AUTOLOCK” system that prevents implants slackening in presence of strong vibrations.
- No need of threads at the end of the boom.
- Permits the use of pipes with small wall thicknesses.
- It does not reduce the passage inside the tube.
- Thanks to the boom-end fork coupling fittings, it is possible to connect any type of “T” connector within the wide ARAG range (hose straight, curved or nipples).
- Body POM.
- Internal O’Ring in EPDM.
- O’Ring in EPDM (VITON® on request) and fork couplings included.
Field | Value |
---|---|
Code | 190450 |
Ø 58 mm | |
F | 58 mm |
G | 48±1 mm |
Toleranceø | ø33.7mm ± 0.25mm |
Pipe Ø | 1" mm |
MAX Pressure | 10 bar |
