BOOM-END PLUG EASYFIT D.1/2inch
BOOM-END PLUG EASYFIT D.1/2inch
Sale price£3.91 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
TECHNICAL FEATURES
- Exclusive “AUTOLOCK” system that prevents implants slackening in presence of strong vibrations.
- No need of threads at the end of the boom.
- Permits the use of pipes with small wall thicknesses.
- It does not reduce the passage inside the tube.
- Thanks to the boom-end fork coupling fittings, it is possible to connect any type of “T” connector within the wide ARAG range (hose straight, curved or nipples).
- Body POM.
- Internal O’Ring in EPDM.
- O’Ring in EPDM (VITON® on request) and fork couplings included.

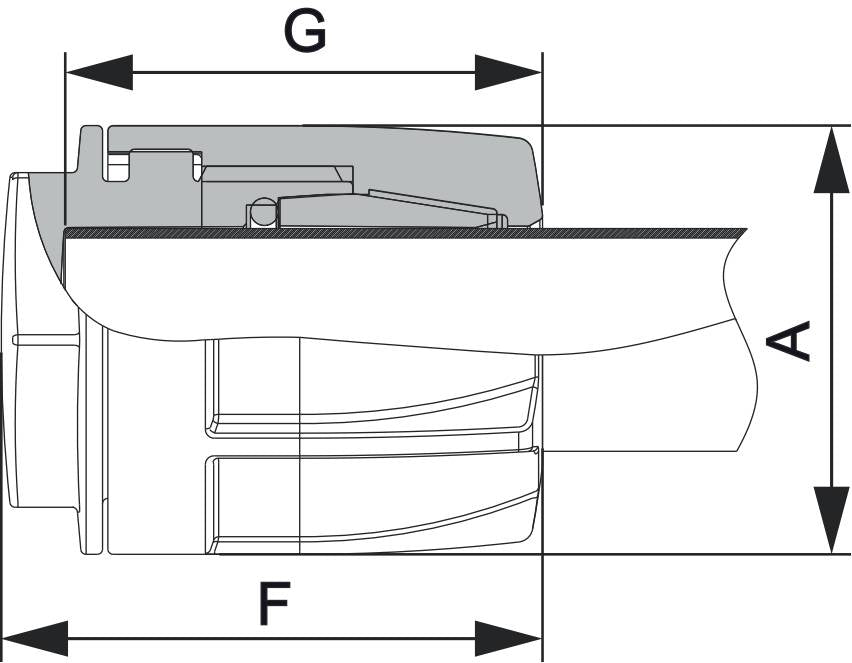

| Field | Value |
|---|---|
| Code | 190250 |
| Ø 41 mm | |
| F | 53 mm |
| G | 45±1 mm |
| Tolerance | ø21.3mm ±0.15 mm |
| Pipe Ø | 1/2" |
| MAX Pressure | 20 bar |
