3W EL.VALVE BALL INF.1 1/2F POS.
3W EL.VALVE BALL INF.1 1/2F POS.
Sale price£361.25 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
TECHNICAL FEATURES
STANDARD MOTOR
- DIN 43650 FORM B connector
MOTOR WITH POSITION INDICATOR
- AMP Superseal® 1.5 3 POS. connector
- Opening/closing indicator
- Power supply and command status LED
- Breather membrane in PTFE

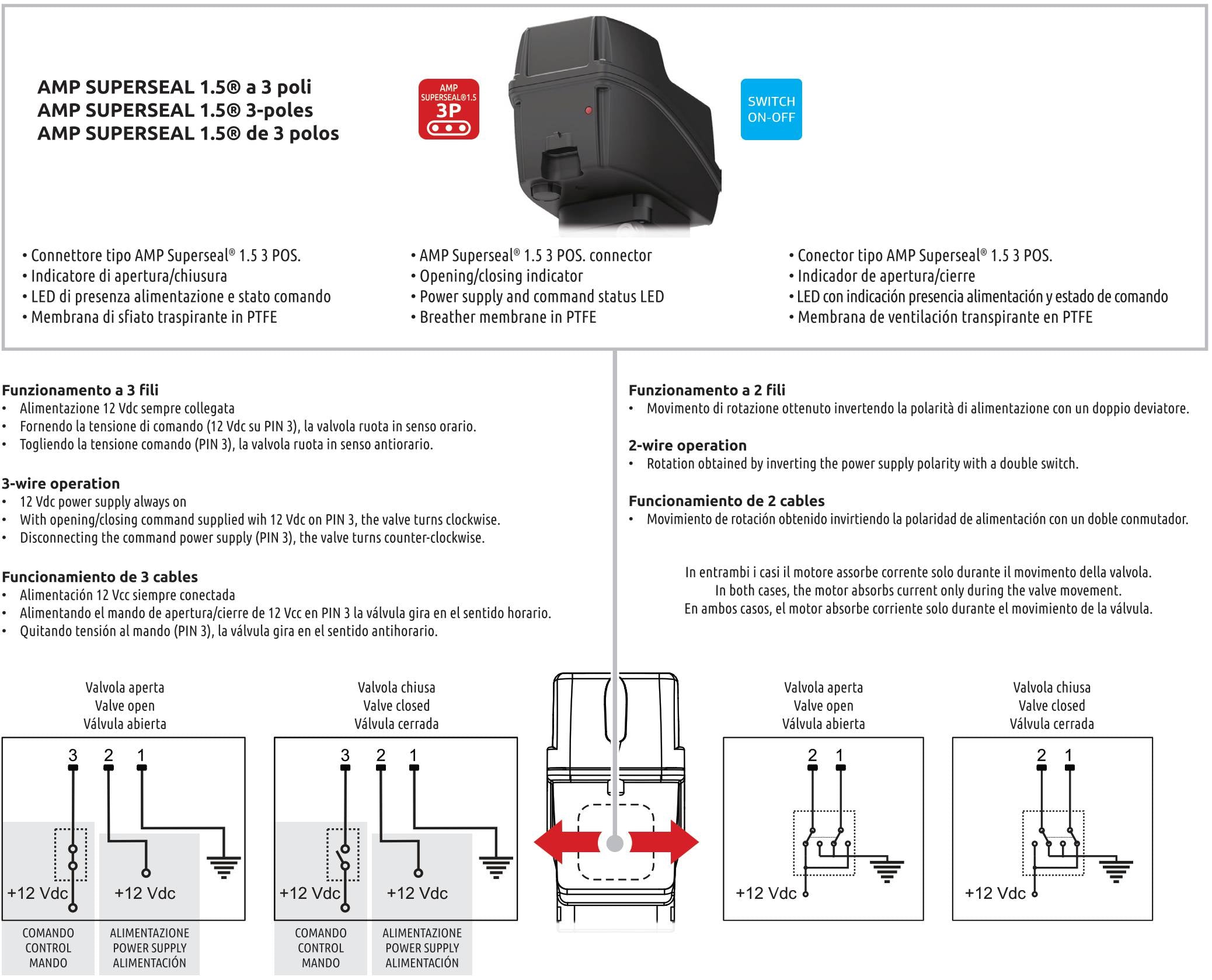

3 wire operation
- 12 Vdc power supply, always connected
- With opening/closing command supplied with 12 Vdc, the valve turns clockwise.
- Disconnecting the command power supply, the valve turns counter-clockwise.
2 wire operation
- Rotation obtained by inverting the power supply polarity with a double switch.
In both cases, the motor absorbs current only during the valve movement.
| Field | Value |
|---|---|
| Code | 853T25A66 |
| 10 bar | |

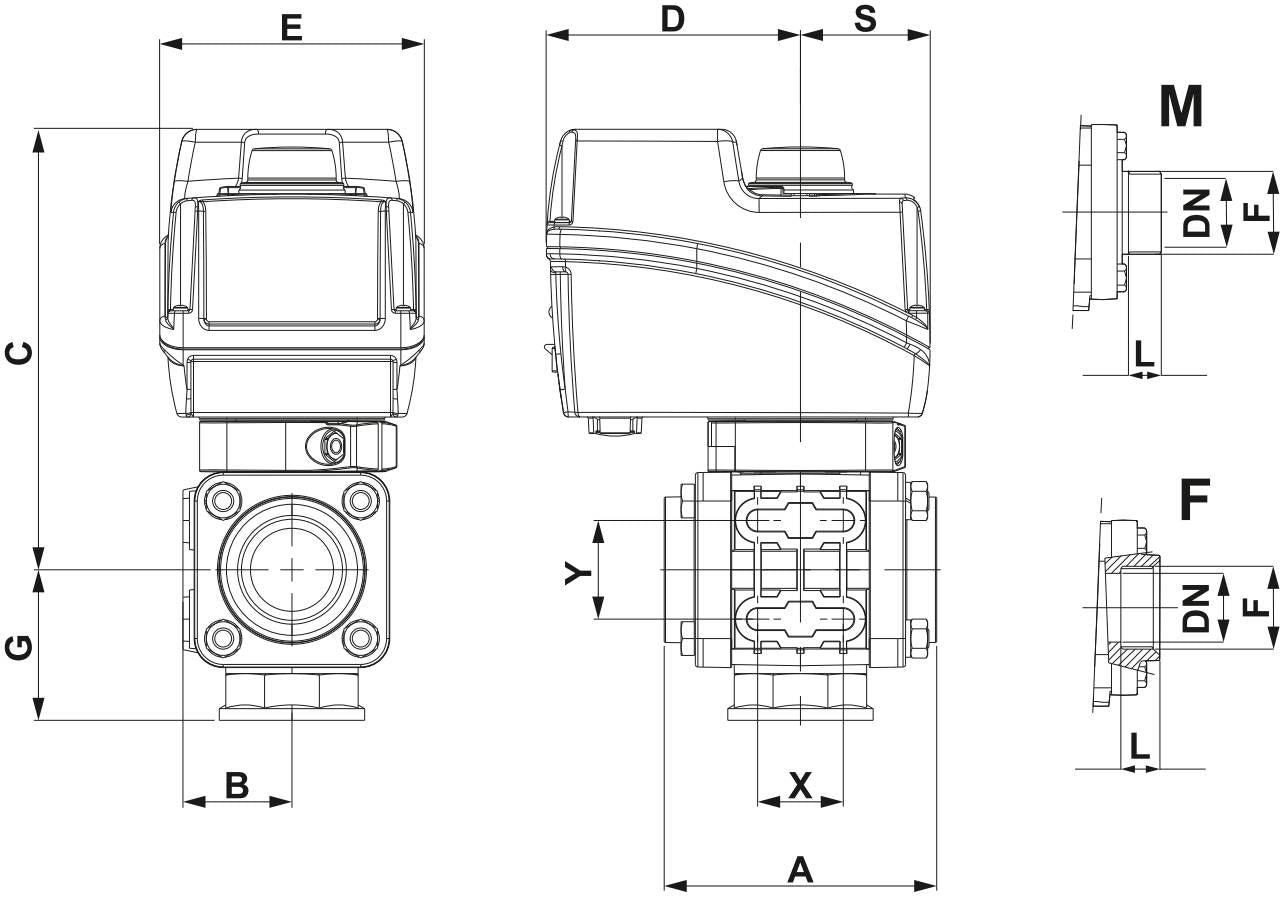

| A | 128 mm |
| Connection | SWITCH ON-OFF |
| B | 52 mm |
| C | 178 mm |
| D | 98 mm |
| E | 102 mm |
| G | 63 mm |
| L | 25 mm |
| X | 40 mm |
| Y | 49 mm |

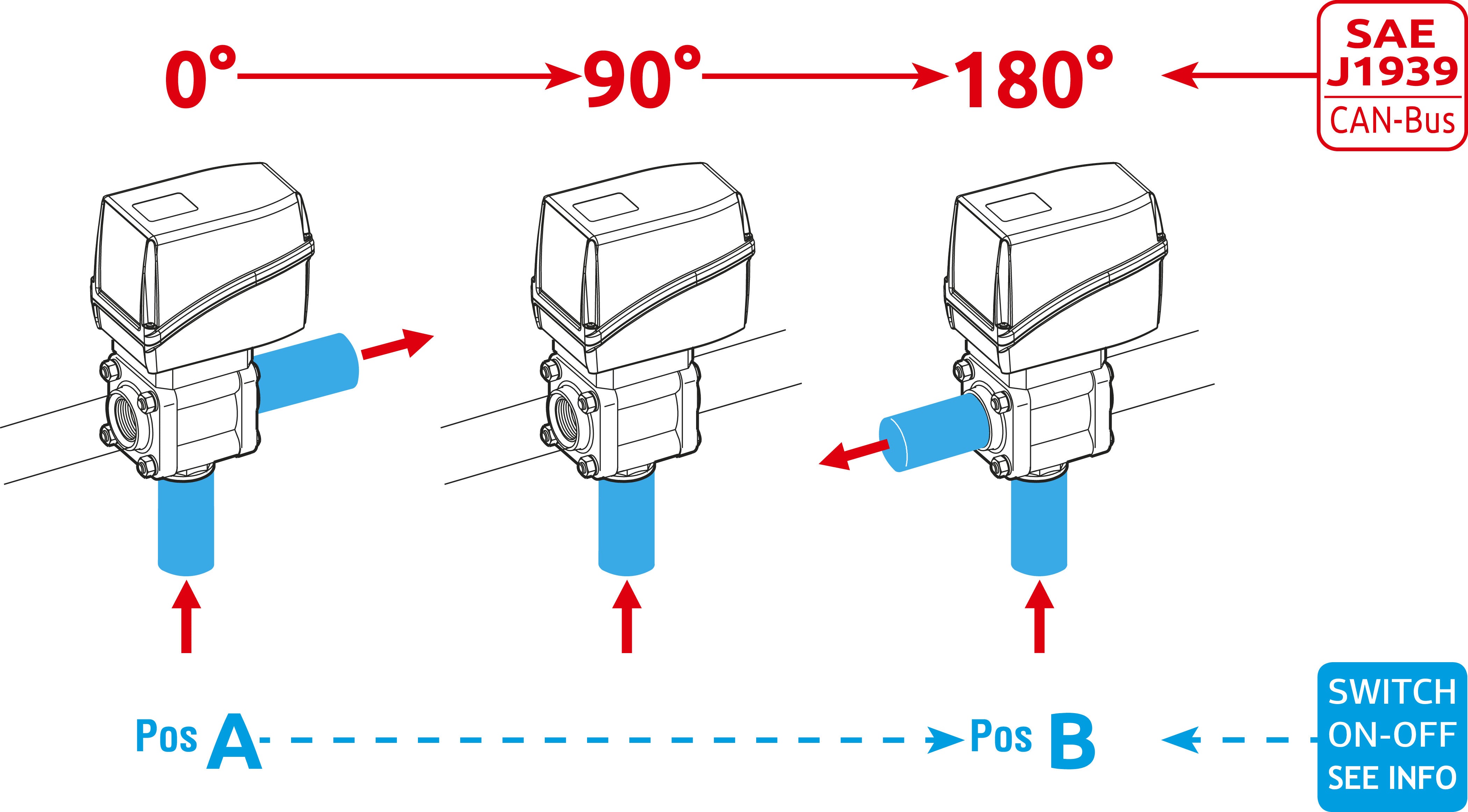

| Ways | 3 lower |
| Ball | AISI 316 BALL |
| @ 0,5bar - 7PSI Flow rate | 540 l/min |
| On / Off @ 180° | 4.6 s |
| Absorption @ 12 V | 3 A |
| Power supply voltage | 12 VDC |
| S | 50 mm |
| - F - | G 11/2" F BSP |
| DN | 40 mm |
