3W BALL VALVE T3M CONT.FLOW
3W BALL VALVE T3M CONT.FLOW
Sale price£17.71 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
- Available with handle with extended height for panel fitting
- Male fork coupling
- Body and ball in polypropylene reinforced with fiberglass
- EPDM seals (Viton® seals available upon request)
- Teflon® sealing seats

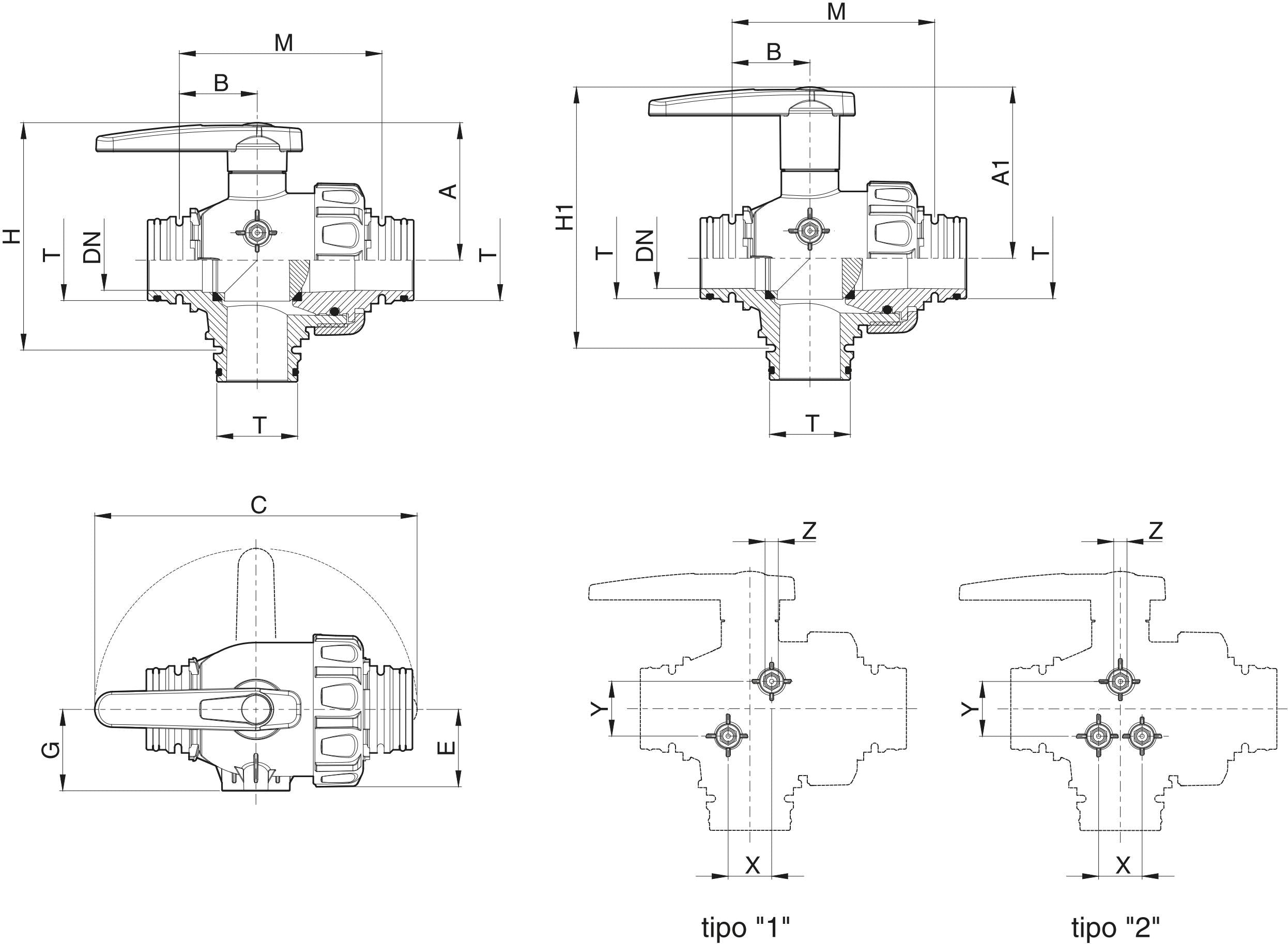

| Field | Value |
|---|---|
| Code | 45534443 |
| 16 bar | |

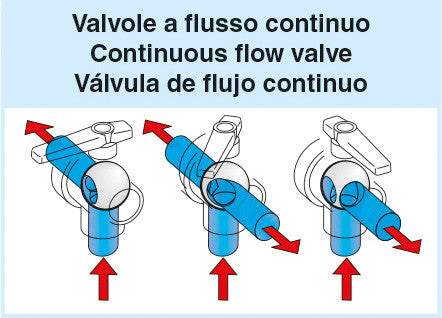

| Flow | Continuous flow |
| Fork Coupling (T) | T3 |
| A | 57 mm |
| A1 | 84 mm |
| B | 33 mm |
| C | 90 mm |
| E | 29 mm |
| G | 31 mm |
| M | 84 mm |
| X | 30 mm |
| Y | 30 mm |
| Description | Standard handle |
| Z | Ø 4 mm - 0.16" |
| Ball | PP BALL |
| DN | 19 mm |
| h | 91 mm |
| h1 | 118 mm |
