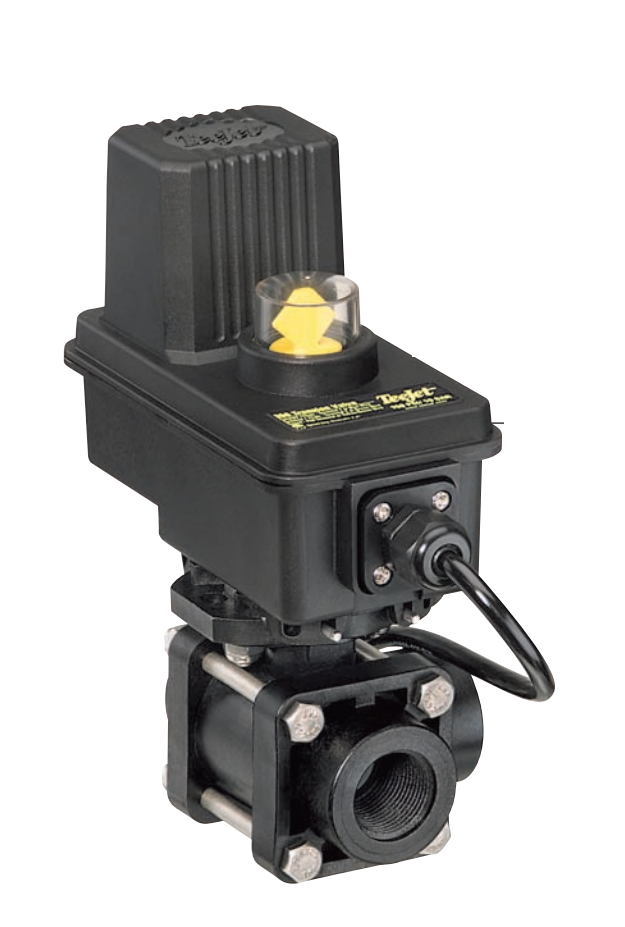

344 Series Electric Shutoff Valves - 3 Way
344 Series Electric Shutoff Valves
344B shutoff ball valves are available with E or EC series motors and with cable or DIN electrical connections. See pages 78–79 for more information on DirectoValve motors.
Features:
■ 22 RPM, 0.7 second shutoff fully open to close.
■ Flexible inlet/outlets provide quick simple plumbing for a single valve. See page 85 for more information.
■ Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.
■ Stainless steel stem with optional polypropylene or stainless steel ball.
■ Maximum pressure rating is 300 PSI (20 bar).
■ The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 PSI (0.34 bar) pressure drop, 45 GPM (170 l/min) at a 10 PSI (0.69 bar) pressure drop.
■ The flow rate for the 344BEC 3-way valve is 24 GPM (91 l/min) with a 5 PSI (0.34 bar) pressure drop, 34 GPM (129 l/min) at a 10 PSI (0.69 bar) pressure drop.
■ Wetted parts are Nylon, Teflon®, polypropylene, stainless steel and Viton®.
