3-WAY BALL VALVE T6 M/F/M
3-WAY BALL VALVE T6 M/F/M
Sale price£33.83 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
Male/female fork coupling
T6 fork coupling filter connectors - simple and easy to use
Body and ball in polypropylene reinforced with fiberglass
EPDM seals (Viton® seals available upon request)
Teflon® sealing seats

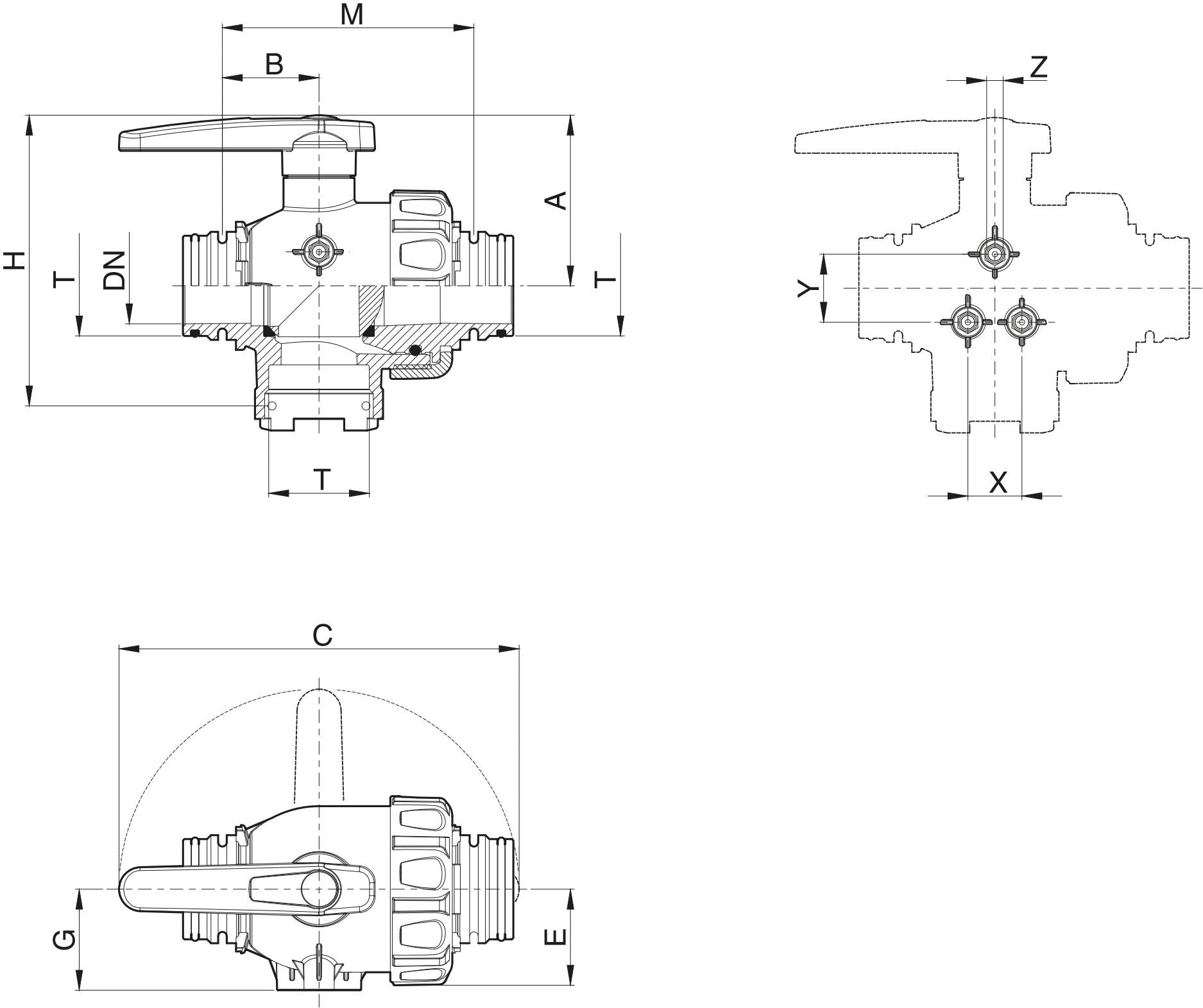

| Field | Value |
|---|---|
| Code | 45524436 |
| 10 bar | |

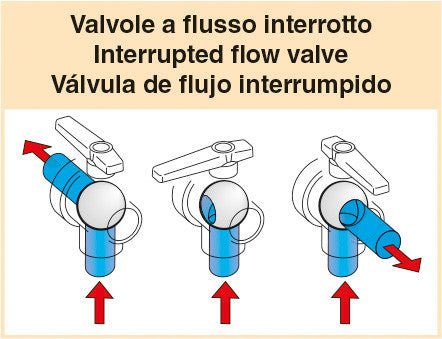

| Flow | Interrupted flow |
| Fork Coupling (T) | T6 |
| A | 85 mm |
| B | 48 mm |
| C | 200 mm |
| E | 48 mm |
| G | 51 mm |
| M | 126 mm |
| X | 27 mm |
| Y | 34 mm |
| Description | Standard handle |
| Z | M8 |
| Ball | PP BALL |
| DN | 40 mm |
| h | 145 mm |
