2W EL.VALVE BALL T7M POS.
2W EL.VALVE BALL T7M POS.
Sale price£398.74 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
TECHNICAL FEATURES
STANDARD MOTOR
- DIN 43650 FORM B connector

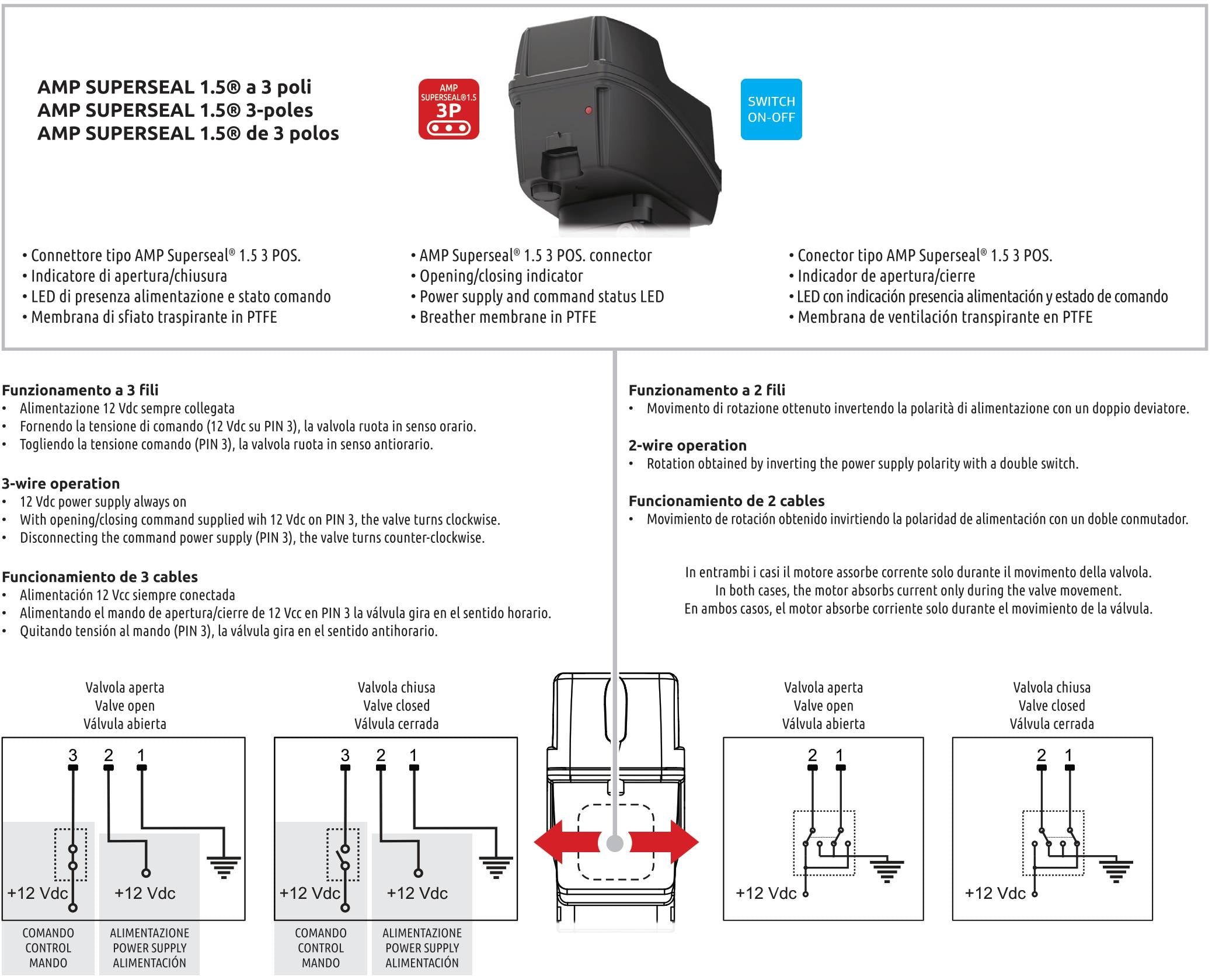

MOTOR WITH POSITION INDICATOR
- AMP Superseal® 1.5 3 POS. connector
- Opening/closing indicator
- Power supply and command status LED
- Breather membrane in PTFE
3 wire operation
- 12 Vdc power supply, always connected
- With opening/closing command supplied with 12 Vdc, the valve turns clockwise.
- Disconnecting the command power supply, the valve turns counter-clockwise.
2 wire operation
- Rotation obtained by inverting the power supply polarity with a double switch.
In both cases, the motor absorbs current only during the valve movement.
| Field | Value |
|---|---|
| Code | 853T06S77 |
| T7 | |
| MAX Pressure | 8 bar |
| On / Off @ 90° | 2.3 s |
| A | 203 mm |
| Connection | SWITCH ON-OFF |
| B | 61 mm |
| C | 187 mm |
| D | 98 mm |
| E | 102 mm |
| X | 57 mm |
| Y | 60 mm |
| Ways | 2 |
| Ball | AISI 316 BALL |
| @ 0,5bar - 7PSI Flow rate | 680 l/min |
| Absorption @ 12 V | 3 A |
| Power supply voltage | 12 VDC |
| S | 50 mm |
| DN | 50 mm |
