2-WAY BALL VALVE T4M HIGH.HANDLE
2-WAY BALL VALVE T4M HIGH.HANDLE
Sale price£15.73 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
- Available with handle with extended height for panel fitting
- Male fork coupling.
- Body and ball in polypropylene reinforced with fiberglass
- EPDM seals (Viton® seals available upon request)
- Teflon® sealing seats

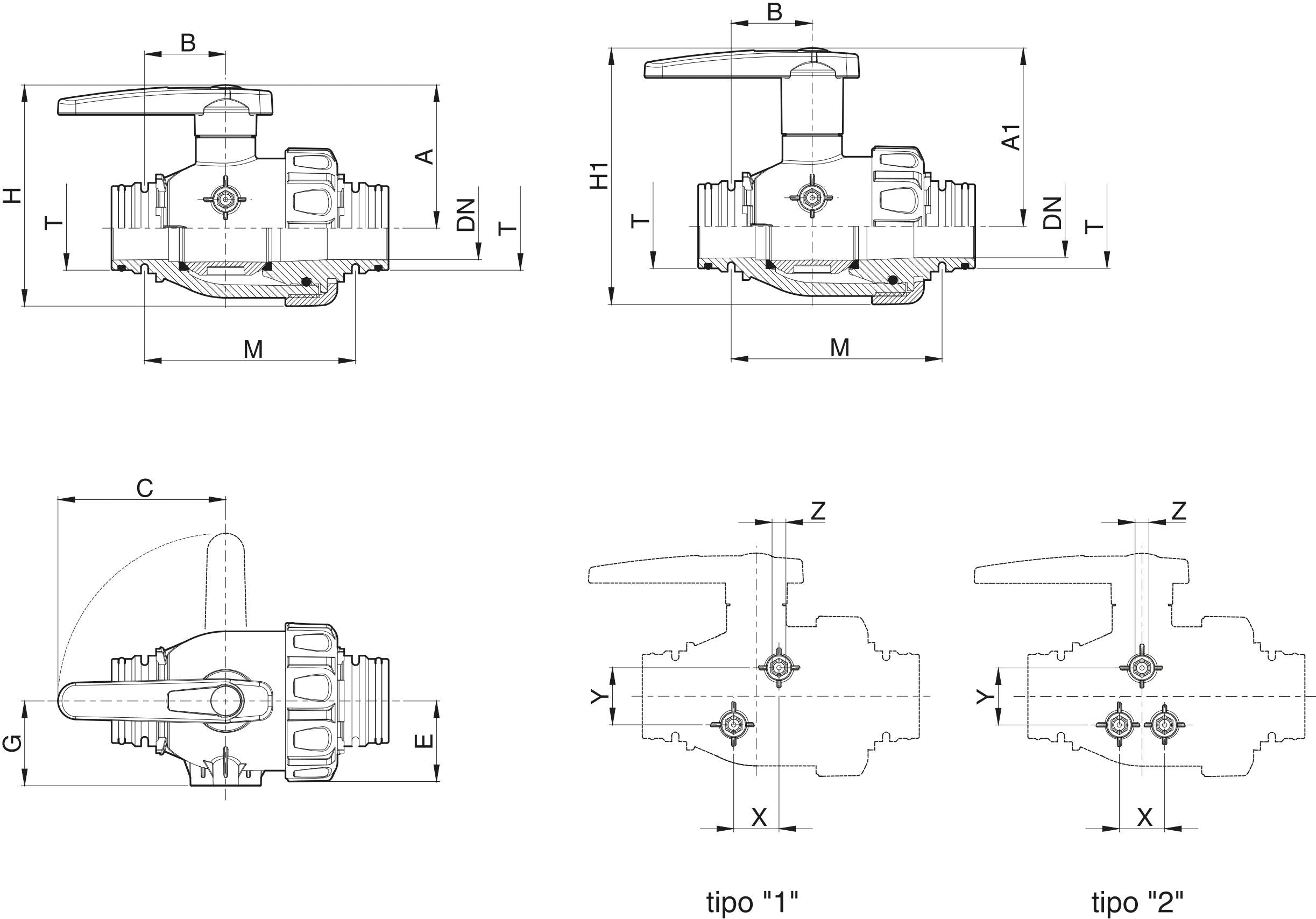

| Field | Value |
|---|---|
| Code | 45514404A |
| 16 bar | |
| Fork Coupling (T) | T4 |
| A | 70 mm |
| A1 | 91 mm |
| B | 34 mm |
| C | 80 mm |
| E | 34 mm |
| G | 37 mm |
| M | 95 mm |
| X | 20 mm |
| Y | 25 mm |
| Type | 1 |
| Description | Extended handle |
| Z | M8 |
| Ball | PP BALL |
| DN | 25 mm |
| h | 104 mm |
| h1 | 125 mm |
