2-WAY BALL VALVE 2 inch WITH ADAPTER
2-WAY BALL VALVE 2 inch WITH ADAPTER
Sale price£35.05 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
- Available with handle with extended height for panel fitting
- BSP threads.
- Body and ball in polypropylene reinforced with fiberglass
- EPDM seals (Viton® seals available upon request)
- Teflon® sealing seats

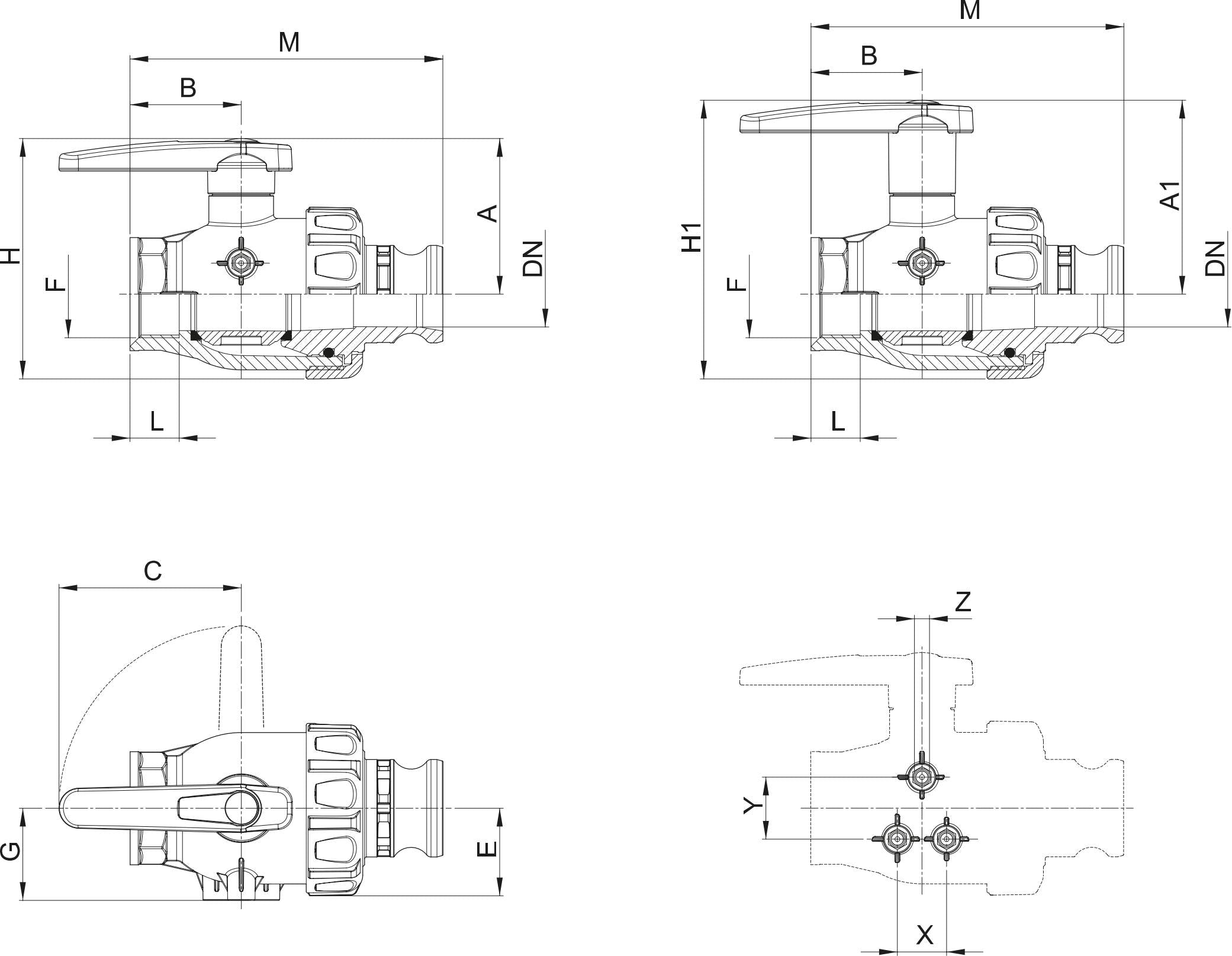

| Field | Value |
|---|---|
| Code | 45515107 |
| 10 bar | |
| A | 107 mm |
| A1 | 135 mm |
| B | 73 mm |
| C | 130 mm |
| E | 58 mm |
| G | 51 mm |
| L | 32 mm |
| M | 198 mm |
| X | 43 mm |
| Y | 78 mm |
| Description | Standard handle |
| Z | M8 |
| Ball | PP BALL |
| DN | 50 mm |
| h | 165 mm |
| h1 | 193 mm |
| - F - | G 2" F BSP |
| CAMLOCK | ✔️ |
