2-WAY BALL VALVE 1.25inch HIGH.HANDLE
2-WAY BALL VALVE 1.25inch HIGH.HANDLE
Sale price£23.56 GBP
Regular price (/)
Tab 1
Use this text to share information about your brand with your customers.
Tab 2
Describe a product, share announcements, or welcome customers to your store.
Tab 3
Share information about your shipping rates, return policy or contact information.
GENERAL FEATURES
Available with handle with extended height for panel fitting
BSP threads.
NPT thread - available upon request.
Body and ball in polypropylene reinforced with fiberglass
EPDM seals (Viton® seals available upon request)
Teflon® sealing seats

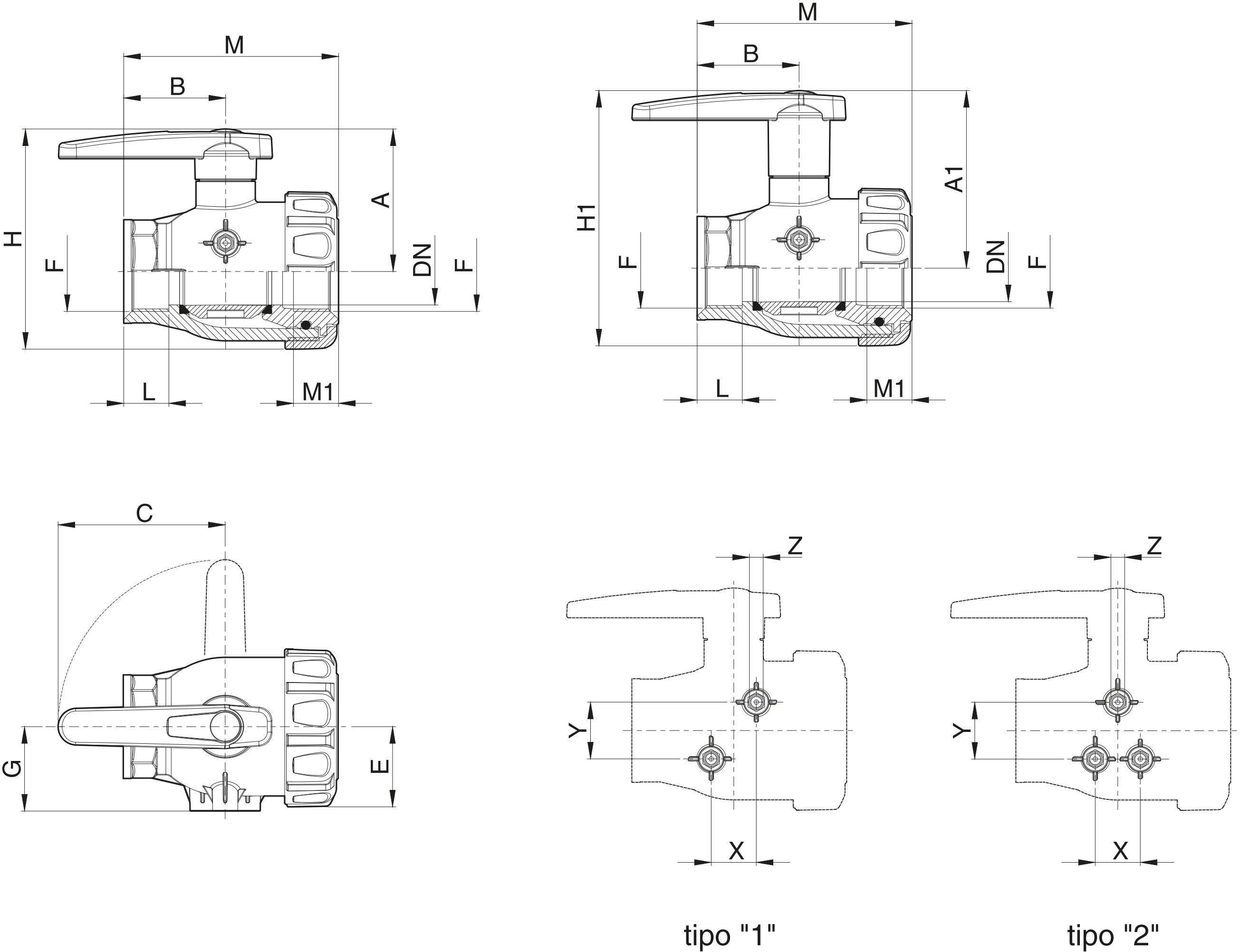

| Field | Value |
|---|---|
| Code | 45511105A |
| 10 bar | |
| A | 74 mm |
| A1 | 95 mm |
| B | 52 mm |
| C | 80 mm |
| E | 39 mm |
| G | 43 mm |
| L | 25 mm |
| M | 110 mm |
| X | 20 mm |
| Y | 25 mm |
| Type | 1 |
| Description | Extended handle |
| Z | M8 |
| Ball | PP BALL |
| DN | 32 mm |
| h | 113 mm |
| h1 | 134 mm |
| M1 | 25 mm |
| - F - | G 11/4" F BSP |
