Boom Section Valves with Fork Coupling

6 products

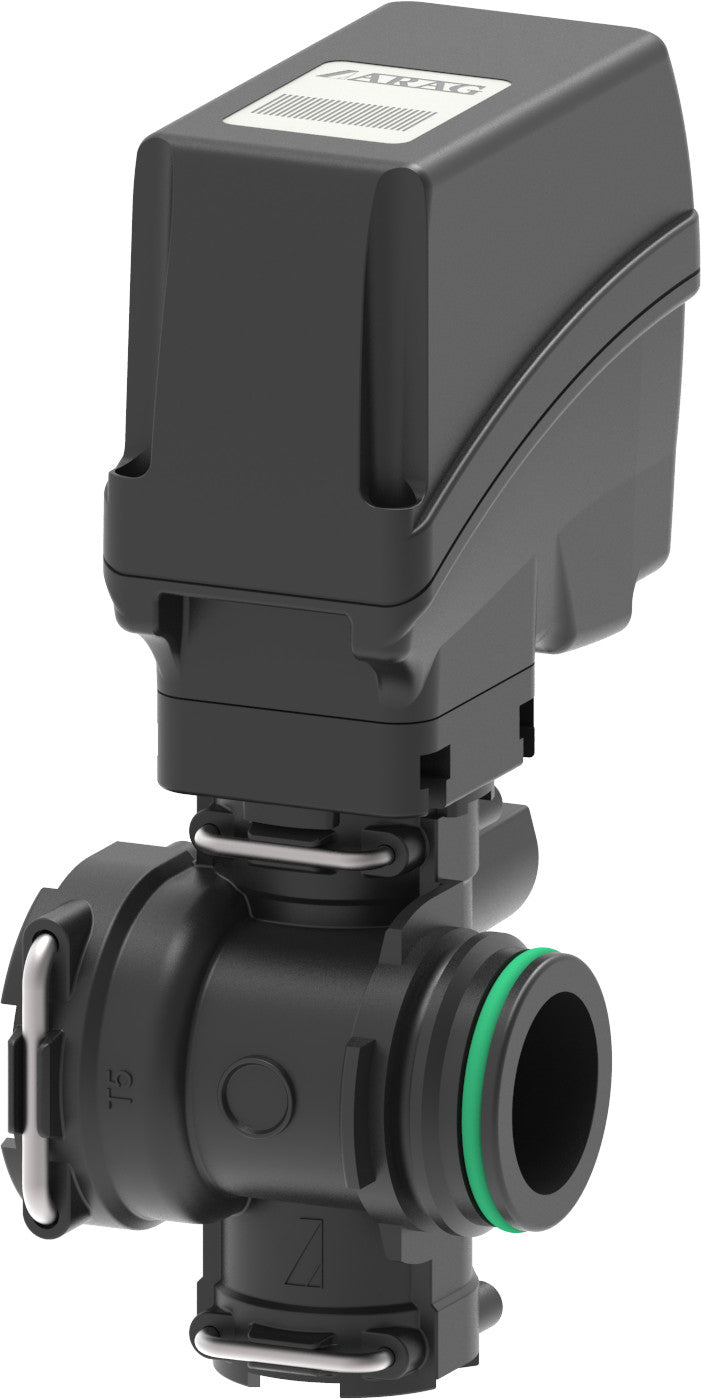

Electric boom section valve with fork connection

Code	OUT	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
873T101	T4	T6	0.6 sec.	12 bar	ON/OFF	120 l/min	0.5 A	12 Vdc	£0.00	View

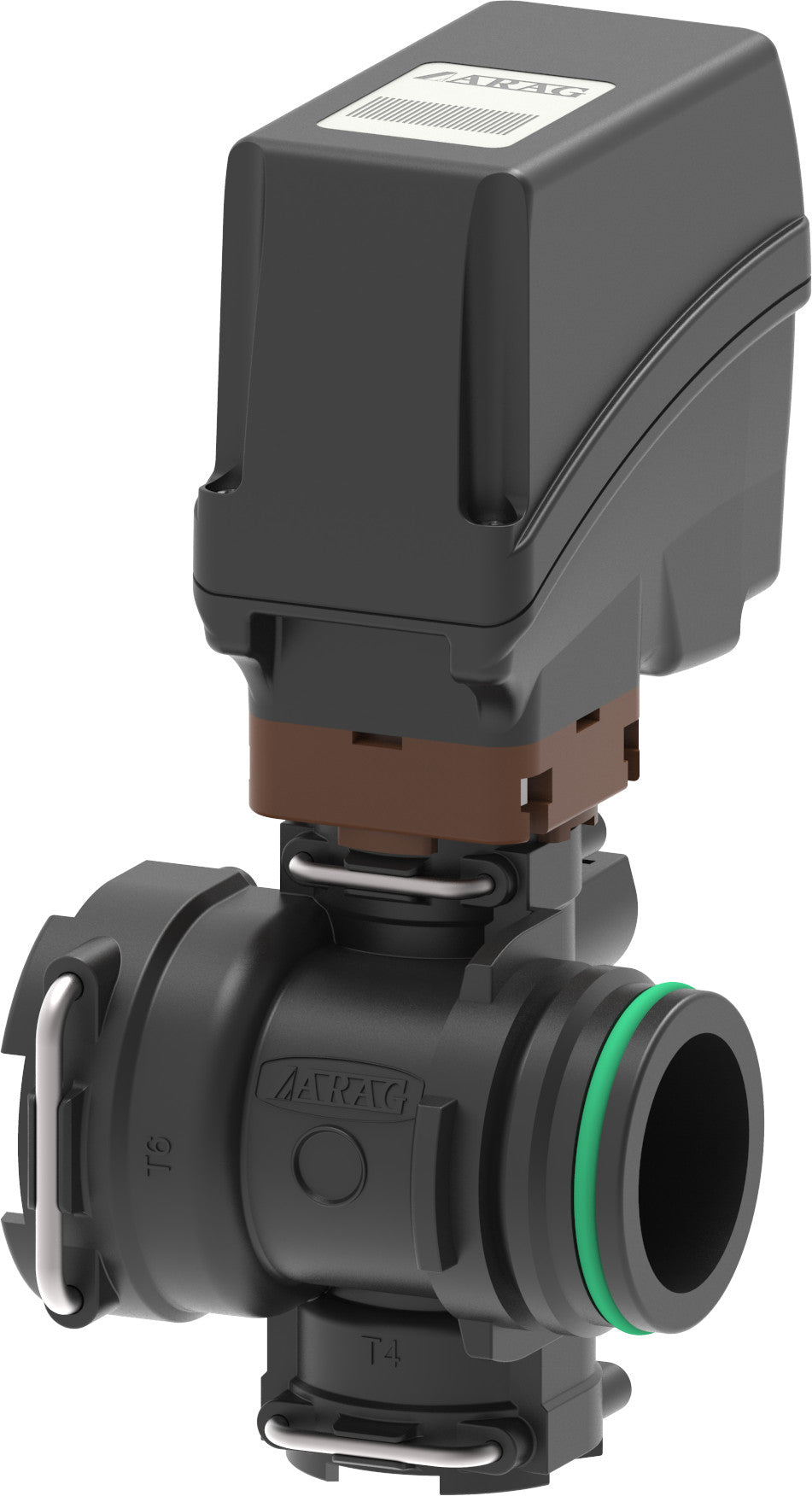

Electric boom section valve with fork connection - HI-FLOW

Code	OUT	Fork Coupling (T)	On / Off @ 90°	Flow rate	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
873T201	T4	T6	1.8 sec.	180 l/min	12 bar	ON/OFF	180 l/min	0.5 A	12 Vdc	£0.00	View

Electric boom section valve with fork connection

Code	OUT	IN	Fork Coupling (T)	On / Off @ 90°	Flow rate	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
Code	OUT	IN	Fork Coupling (T)	On / Off @ 90°	Flow rate	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
863T001	T3	T5	T5	0,6	50 l/min	20 bar	ON/OFF	50 l/min	0.5 A	12 Vdc	£159.17	View
863T011	T3	T5	T5	0,6	50 l/min	20 bar	BY-PASS	50 l/min	0.5 A	12 Vdc	£174.34	View

Electric boom section valve with fork connection

Code	OUT	IN	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Type	Connection	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
Code	OUT	IN	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Type	Connection	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
863TB01E	T3	T5	T5	0.6 sec.	20 bar	ON/OFF	SAE J1939	50 l/min	0.5 A	12 Vdc	£0.00	View
863TB11E	T3	T5	T5	0.6 sec.	20 bar	BY-PASS	SAE J1939	50 l/min	0.5 A	12 Vdc	£0.00	View

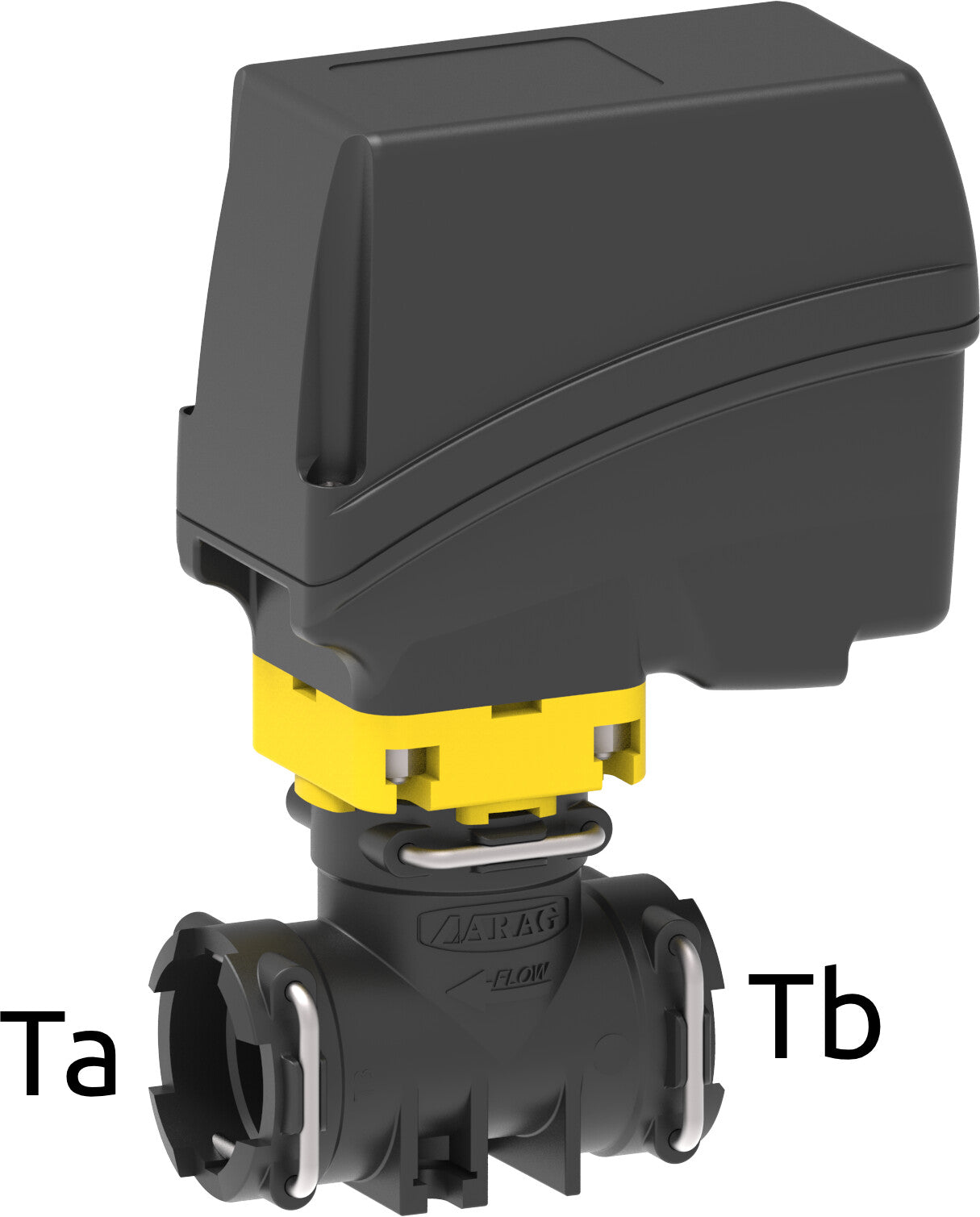

Two-way electrically operated single boom section valve

Electric PROPORTIONAL control valve with fork coupling

862 series valves have been designed to be directly inserted onto the boom and allow to easily construct a crop spraying boom.
They can also be arranged in a control unit without drain.

Specific valve for use with BRAVO and DELTA computers: new larger-diameter drive system, with wear-proof coating for a longer life.

Code	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Use for	@ 1.5bar - 22PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
Code	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Use for	@ 1.5bar - 22PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
862A3110	T3	14 sec.	20 bar		60 l/min	0.5 A	12 Vdc	£190.38	View
862A3120S	T3	7 sec.	20 bar	Computer	100 l/min	0.5 A	12 Vdc	£190.38	View

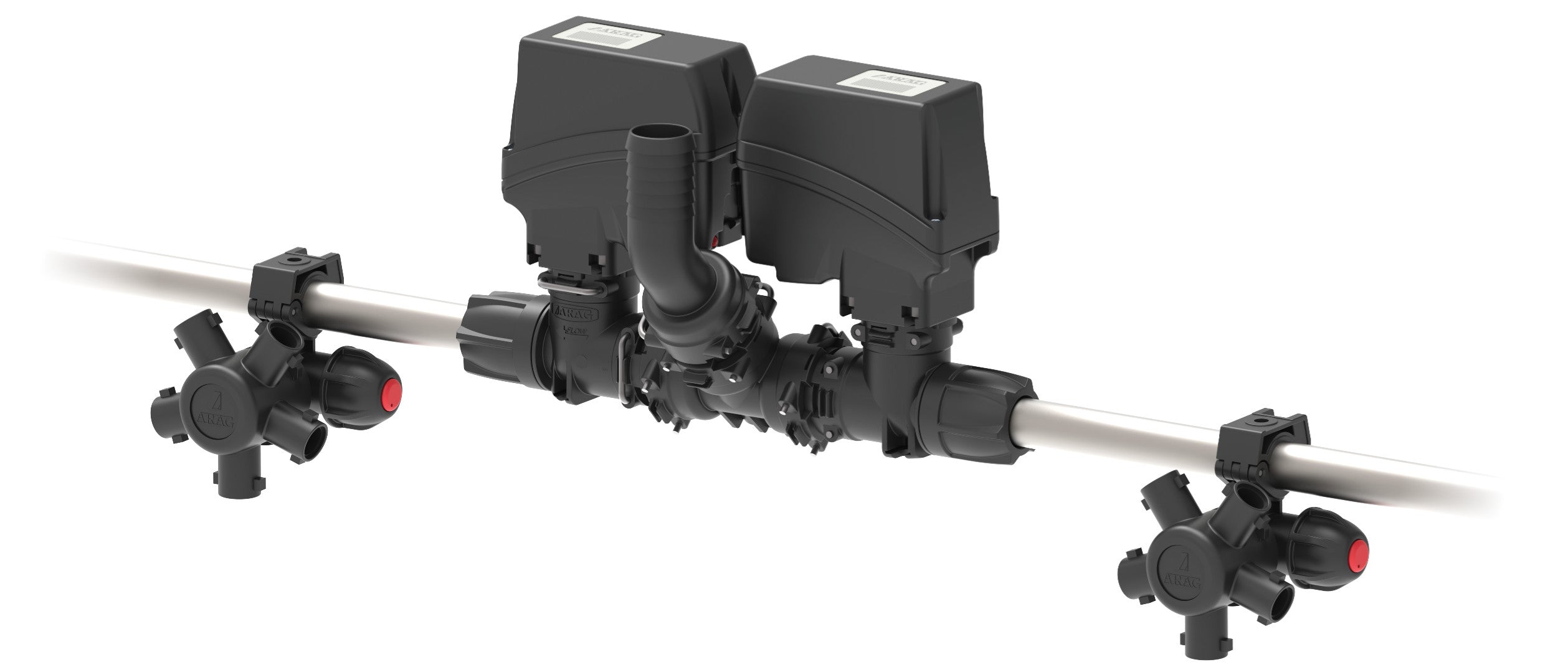

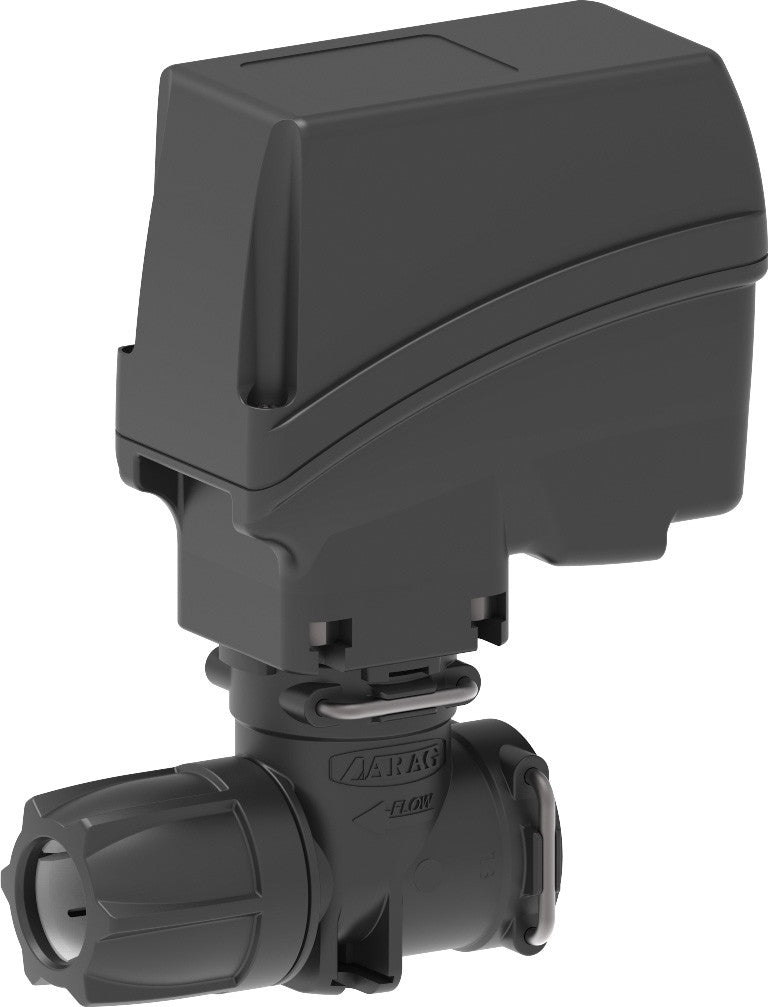

Two-way electrically operated single boom section valve

Electrically operated single boom section valve with fork coupling

862 series valves have been designed to be directly inserted onto the boom and allow to easily construct a crop spraying boom.
They can also be arranged in a control unit without drain.

Code	Fork Coupling (T)	On / Off @ 90°	MAX Pressure	Type	@ 0,5bar - 7PSIFlow rate	Absorption @ 12 V	Power supply voltage	Price
862A1220	T3	0.6	20 bar	ON/OFF	50 l/min	0.5 A	12 Vdc	£170.20	View
