2 products
Check valve with integrated EASYFIT coupling
EASYFIT allows you to assemble the boom without the use of threaded components.
| Code | Fork Coupling(T) | A | C | E | G | Tolerance | Pipe Ø | MAX Pressure | Price |
|---|---|---|---|---|---|---|---|---|---|
| 504221B2 | T3 | Ø 41 mm | 97 mm | 110 mm | 45±1 mmX55 mm | ø21.3mm ±0.15 mm | 1/2" | 20 bar | £13.77 |

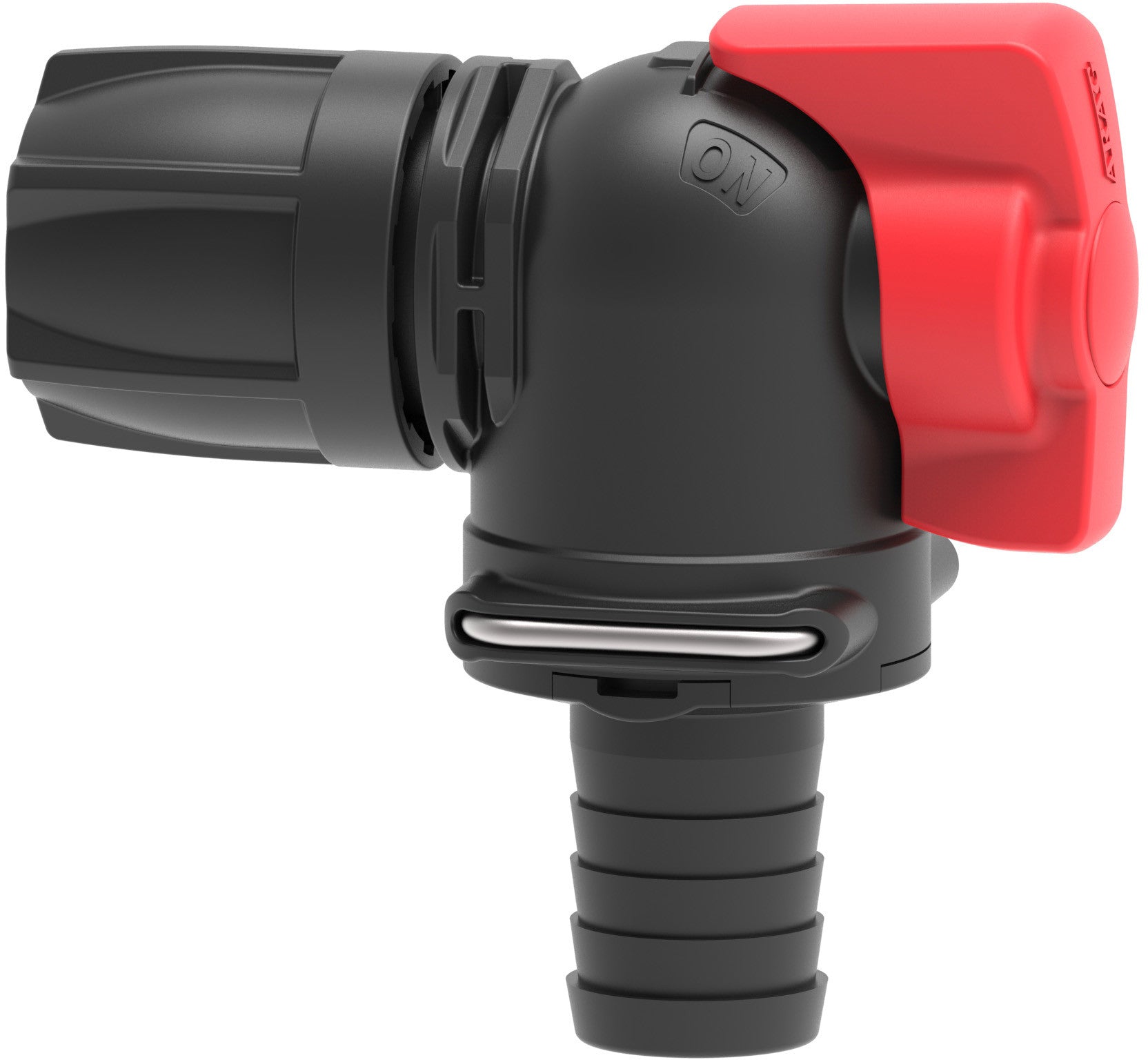

Boom end flush valve
EASYFIT allows you to assemble the boom without the use of threaded components.
| Code | A | D | E | G | Tolerance | Material | Pipe Ø | MAX Pressure | Y | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Code | A | D | E | G | Tolerance | Material | Pipe Ø | MAX Pressure | Y | Price |
| Code | A | D | E | G | Tolerance | Material | Pipe Ø | MAX Pressure | Y | Price |
| 454622 | Ø 41 mm | 25 mm | 111 mm | 45±1 mmX28 mm | ø21.3mm ±0.15 mm | EPDM | 1/2" | 15 bar | 76 mm | £17.04 |
| 454632 | Ø 49 mm | 25 mm | 113 mm | 47±1 mmX26 mm | ø26.9mm ±0.18 mm | EPDM | 3/4" | 15 bar | 78 mm | £17.04 |
| 454642 | Ø 58 mm | 25 mm | 114 mm | 48±1 mmX28 mm | ø33.7mm ±0.25 mm | EPDM | 1" | 10 bar | 81 mm | £17.04 |
