Valves Assembly

3 products

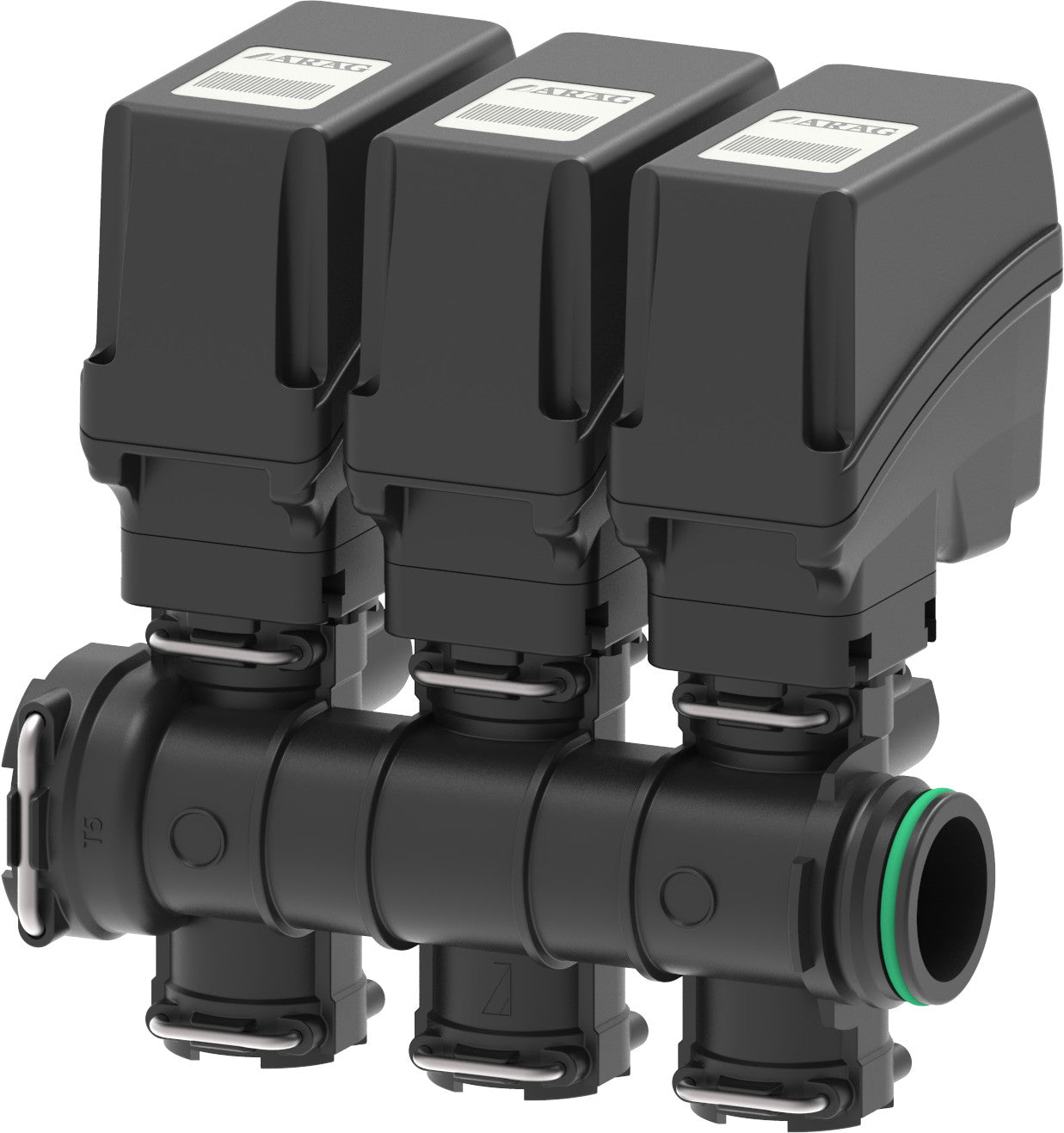

3 way- electric control unit with fork couplings

Code	OUT	IN	n / Off @ 90°	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
Code	OUT	IN	n / Off @ 90°	MAX Pressure	Type	@ 0,5bar - 7PSI Flow rate	Absorption @ 12 V	Power supply voltage	Price
863T003	T3	T5 O	0,6	20 bar	ON/OFF	50 l/min	0.5 A	12 Vdc	£352.89	View
863T013	T3	T5 O	0,6	20 bar	BY-PASS	50 l/min	0.5 A	12 Vdc	£387.04	View

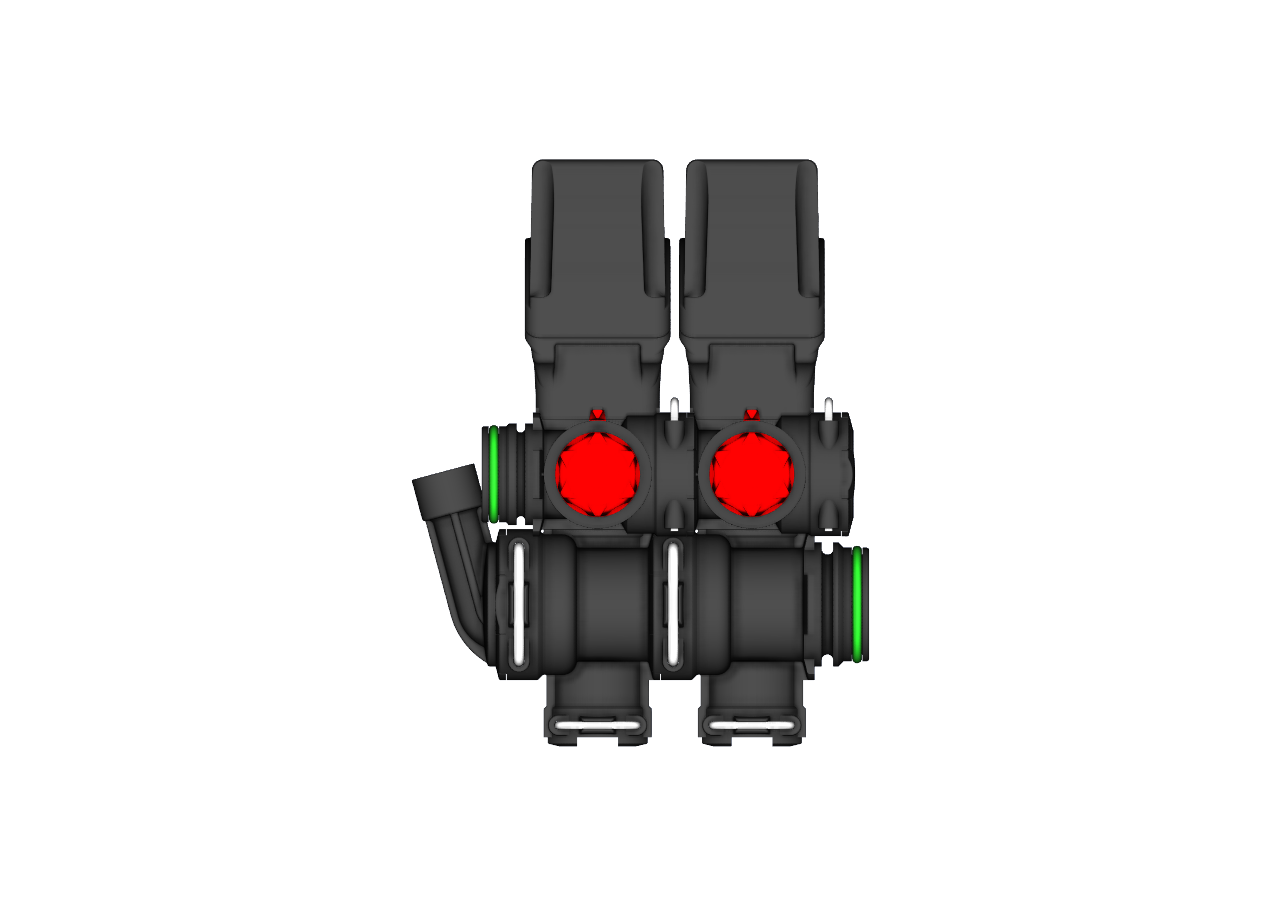

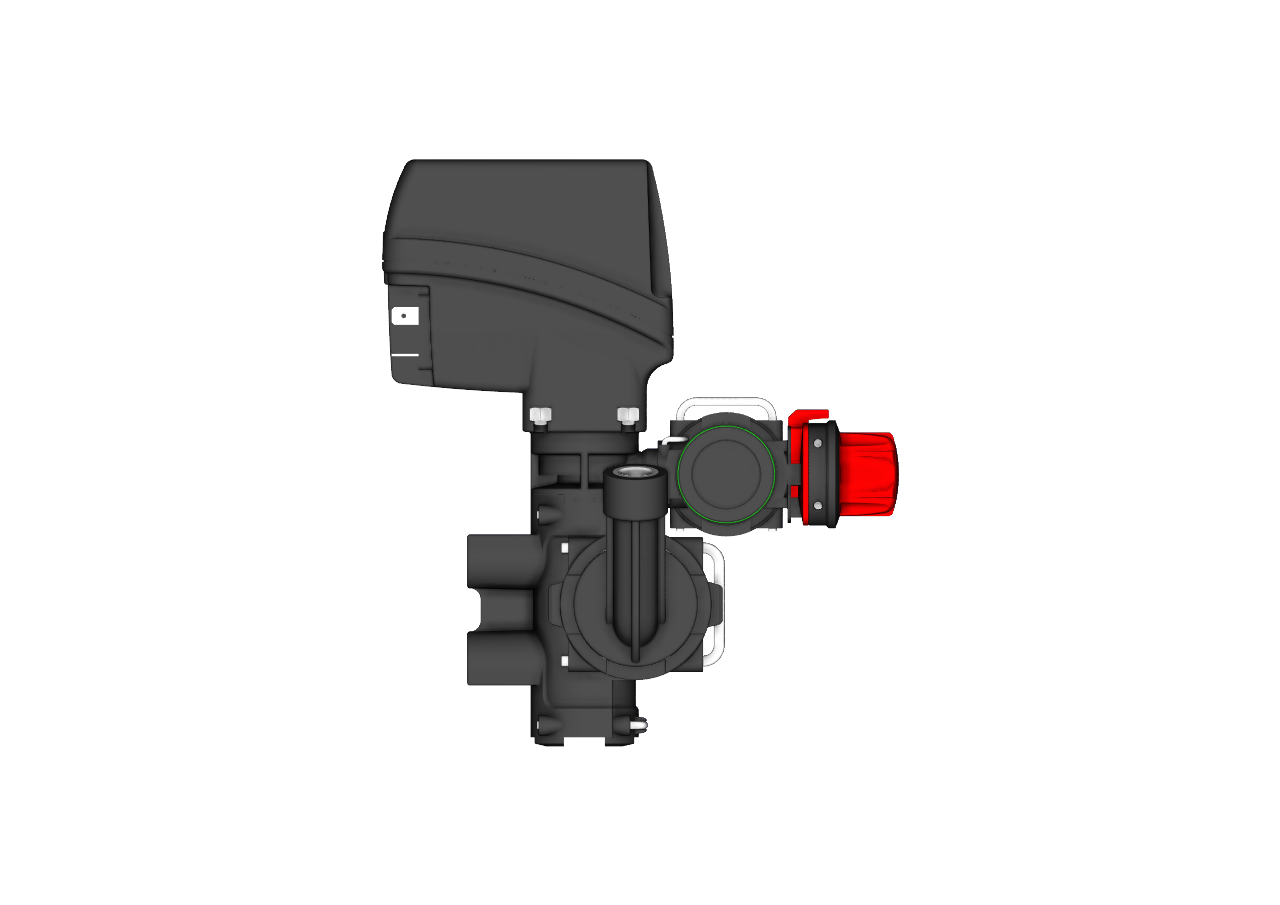

Series 863T electrovalve set with metered by-pass and T5 fork connection

Consisting of 863T011 and 863T013 valves.

Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Ø 3	Fork Coupling (T)	MAX Pressure	Sections	Price
863T0120	T3	T5	T4	T5	20 bar	2	£286.82	View
863T0130	T3	T5	T4	T5	20 bar	3	£323.64	View
863T0140	T3	T5	T4	T5	20 bar	4	£547.51	View
863T0150	T3	T5	T4	T5	20 bar	5	£684.11	View
863T0160	T3	T5	T4	T5	20 bar	6	£810.54	View
863T0170	T3	T5	T4	T5	20 bar	7	£947.14	View

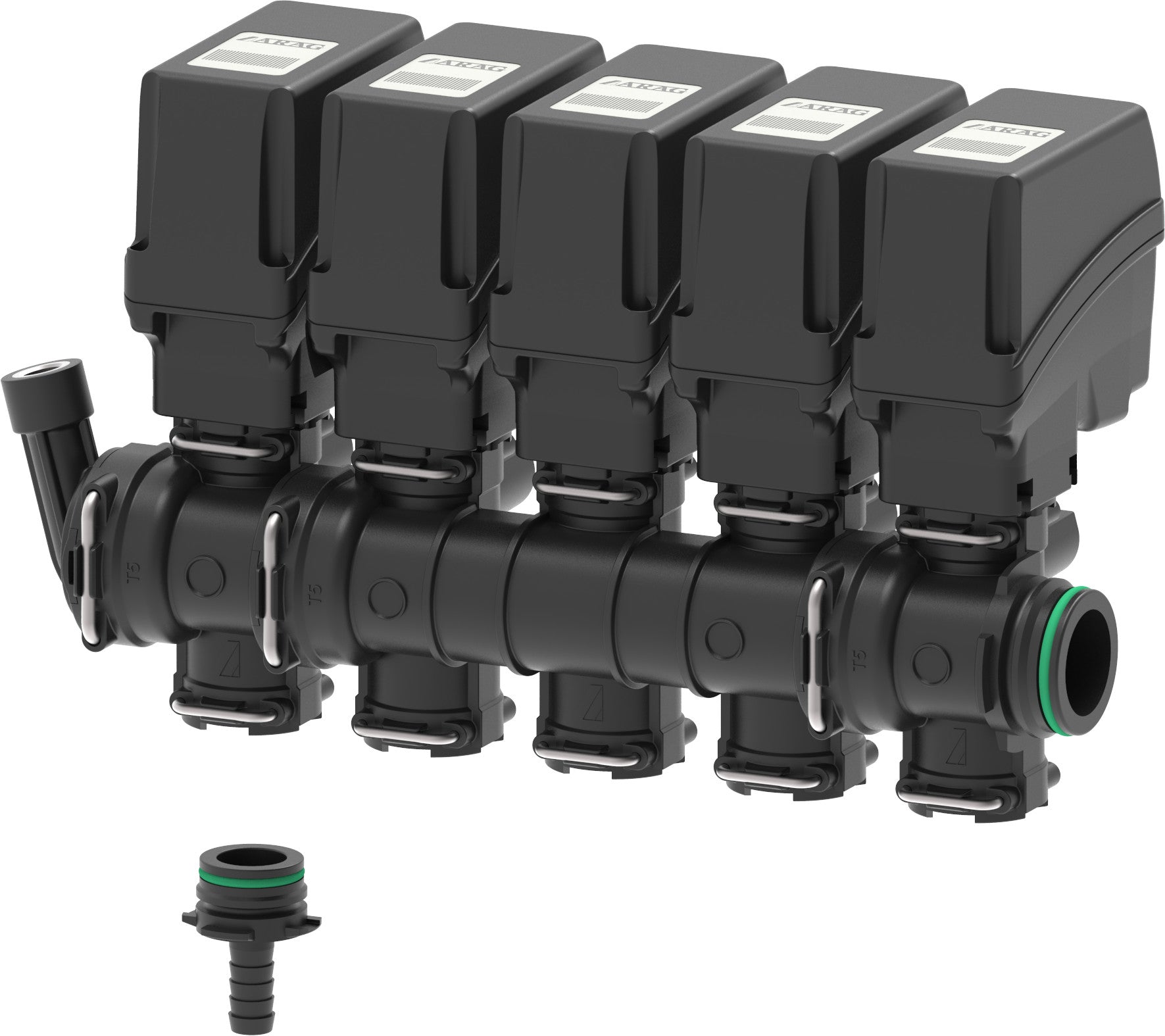

Series 863T ON-OFF electrovalve set with T5 fork connection

Consisting of 863T001 and 863T003 valves.

Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
Code	OUT	IN	Fork Coupling (T)	MAX Pressure	Sections	Price
863T0020	T3	T5	T5	20 bar	2	£272.15	View
863T0030	T3	T5	T5	20 bar	3	£367.69	View
863T0040	T3	T5	T5	20 bar	4	£488.38	View
863T0050	T3	T5	T5	20 bar	5	£609.07	View
863T0060	T3	T5	T5	20 bar	6	£721.68	View
863T0070	T3	T5	T5	20 bar	7	£843.47	View
