Pressure Relief Control Valves

10 products

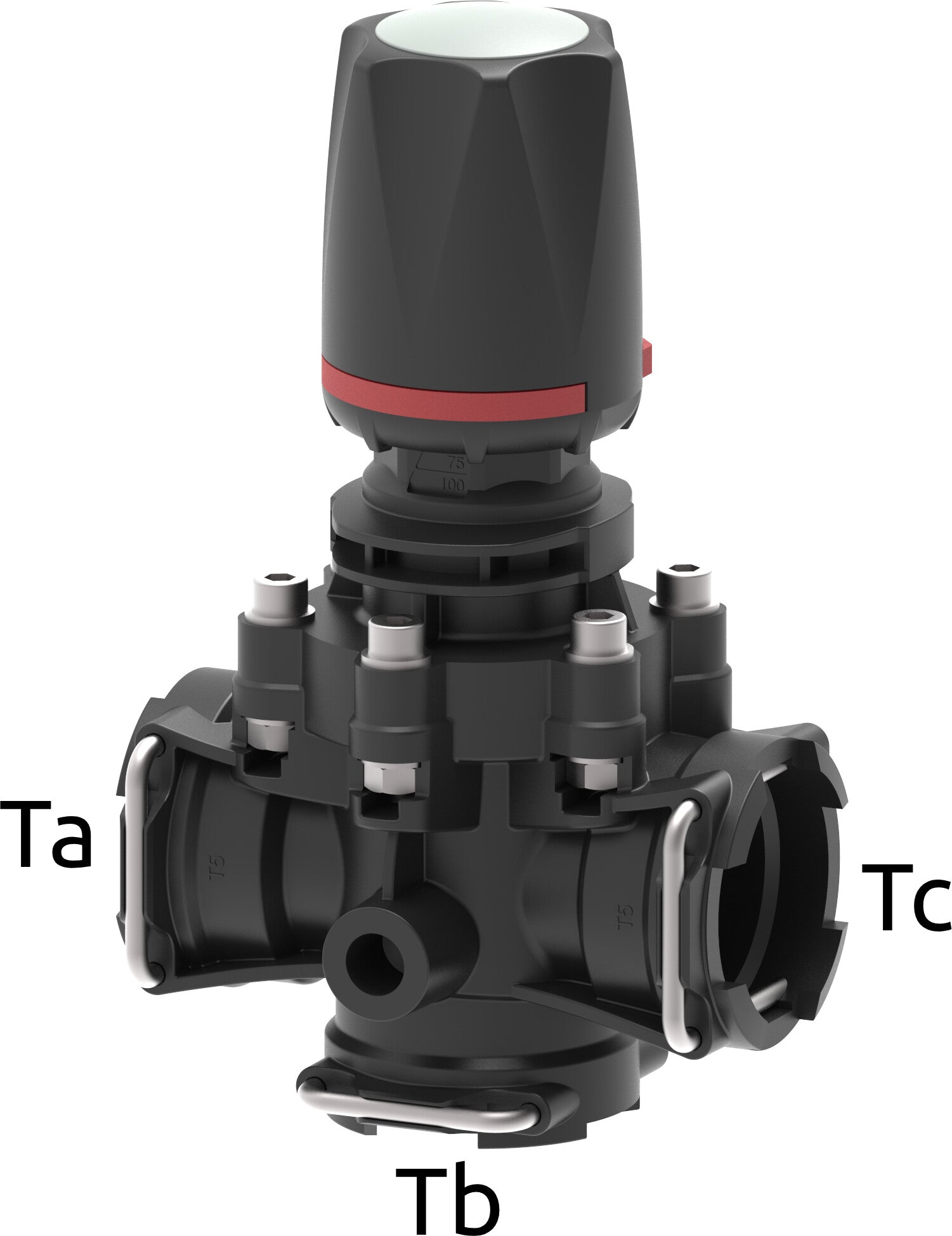

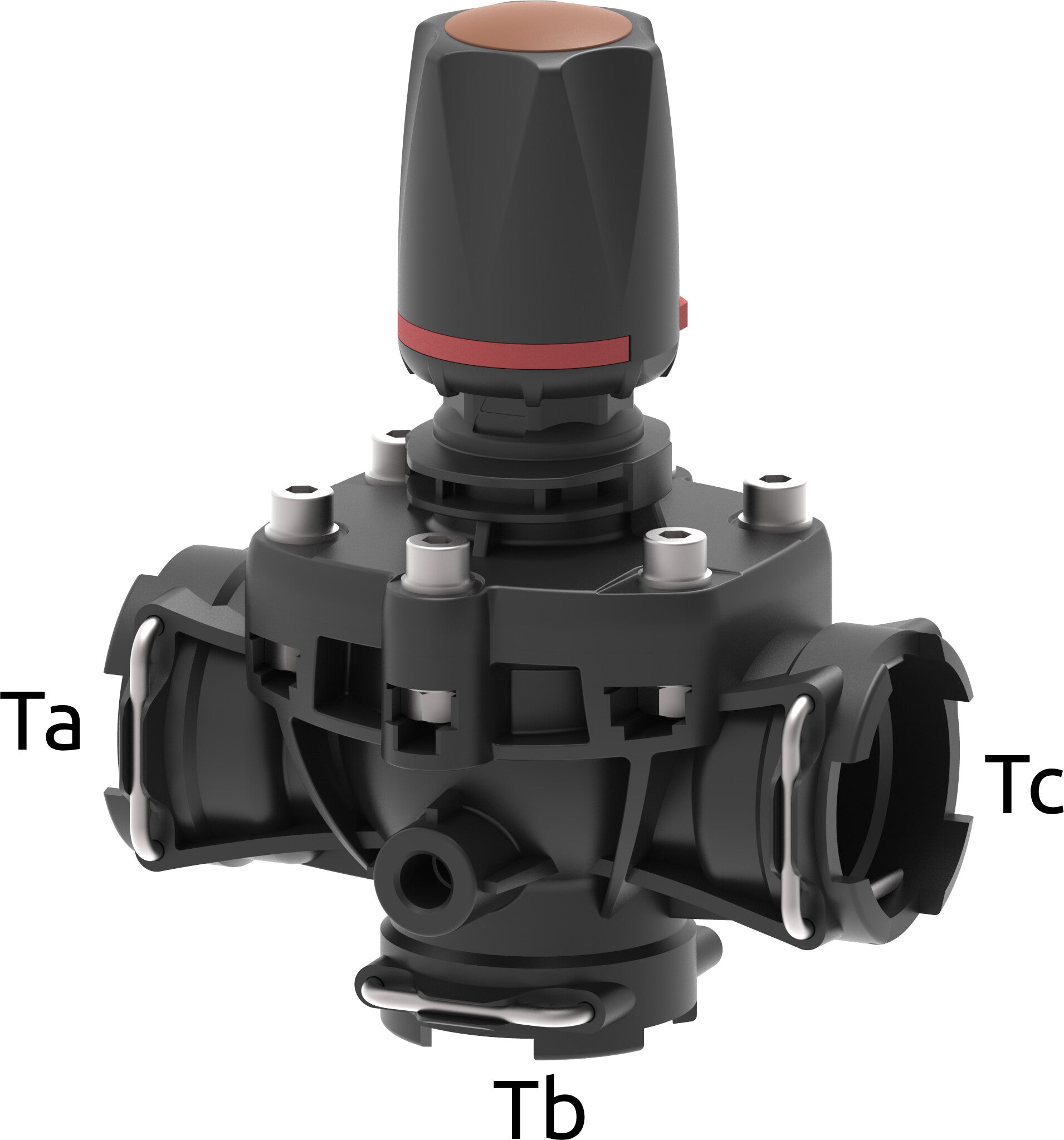

Manual diaphragm pressure relief control valve with fork coupling
Manual diaphragm pressure relief control valve with fork coupling
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
475552 T5 200 l/min 20 bar T5 F T5 F T5 F £104.46 View
475551 T5 200 l/min 10 bar T5 F T5 F T5 F £104.46 View
4755506 T5 200 l/min 6 bar T5 F T5 F T5 F £0.00 View
Manual diaphragm pressure relief control valve with fork coupling
Manual diaphragm pressure relief control valve with fork coupling
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
475560 T6 450 l/min 8 bar T6 F T6 F T6 F £139.76 View
4755612 T6 450 l/min 12 bar T6 F T6 F T6 F £139.76 View

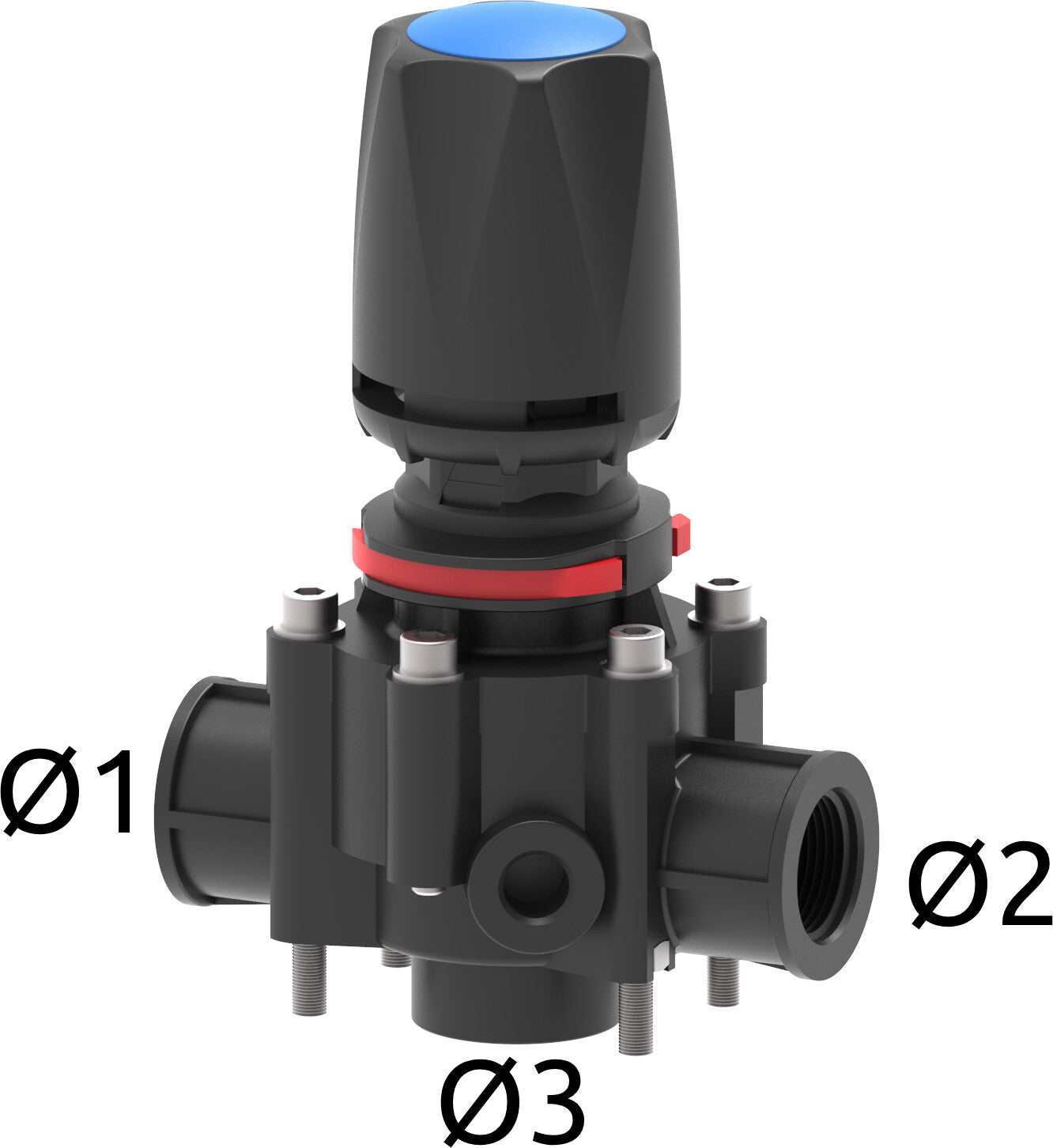

Manual diaphragm pressure relief control valve with threaded coupling
Manual diaphragm pressure relief control valve with threaded coupling

The removable clip allows to block the valve 475 at the set pressure.

Code Flow rate MAX Pressure Ta Tb Tc Price
Code Flow rate MAX Pressure Ta Tb Tc Price
Code Flow rate MAX Pressure Ta Tb Tc Price
475534 200 l/min 40 bar 3/4" F 3/4" F 3/4" F £79.32 View
475535 200 l/min 50 bar 3/4" F 3/4" F 3/4" F £79.32 View
475533 200 l/min 30 bar 3/4" F 3/4" F 3/4" F £79.32 View

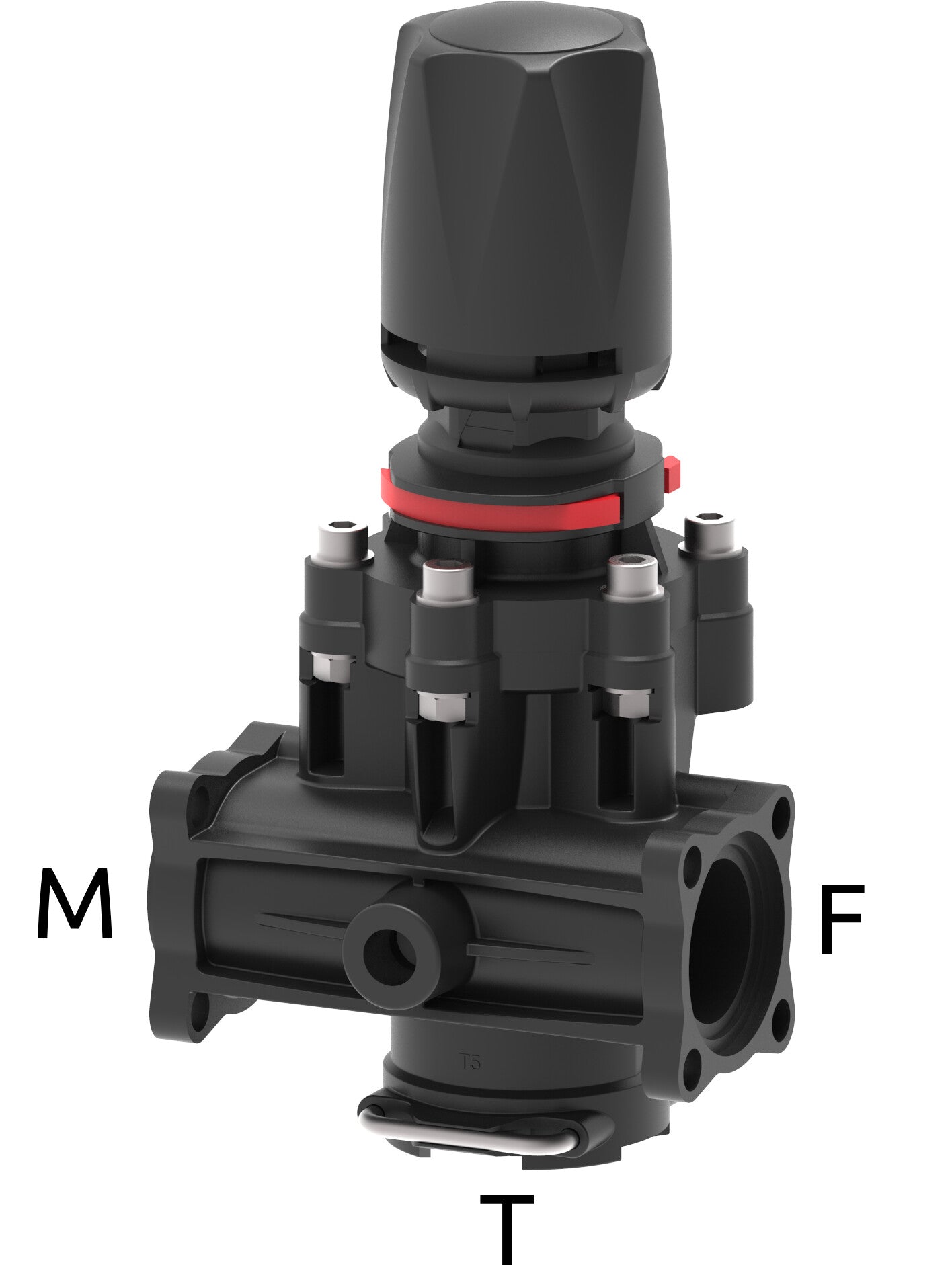

Manual diaphragm pressure relief control valve with 863 type flanged coupling
Manual diaphragm pressure relief control valve with 863 type flanged coupling

The removable clip allows to block the valve 475 at the set pressure.

Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
Code Fork Coupling (T) Flow rate MAX Pressure Ta Tb Tc Price
475511 T5 150 l/min 10 bar 863 863 T5 F £79.32 View
475512 T5 150 l/min 20 bar 863 863 T5 F £79.32 View
475513 T5 150 l/min 30 bar 863 863 T5 F £79.32 View
475514 T5 150 l/min 40 bar 863 863 T5 F £79.32 View

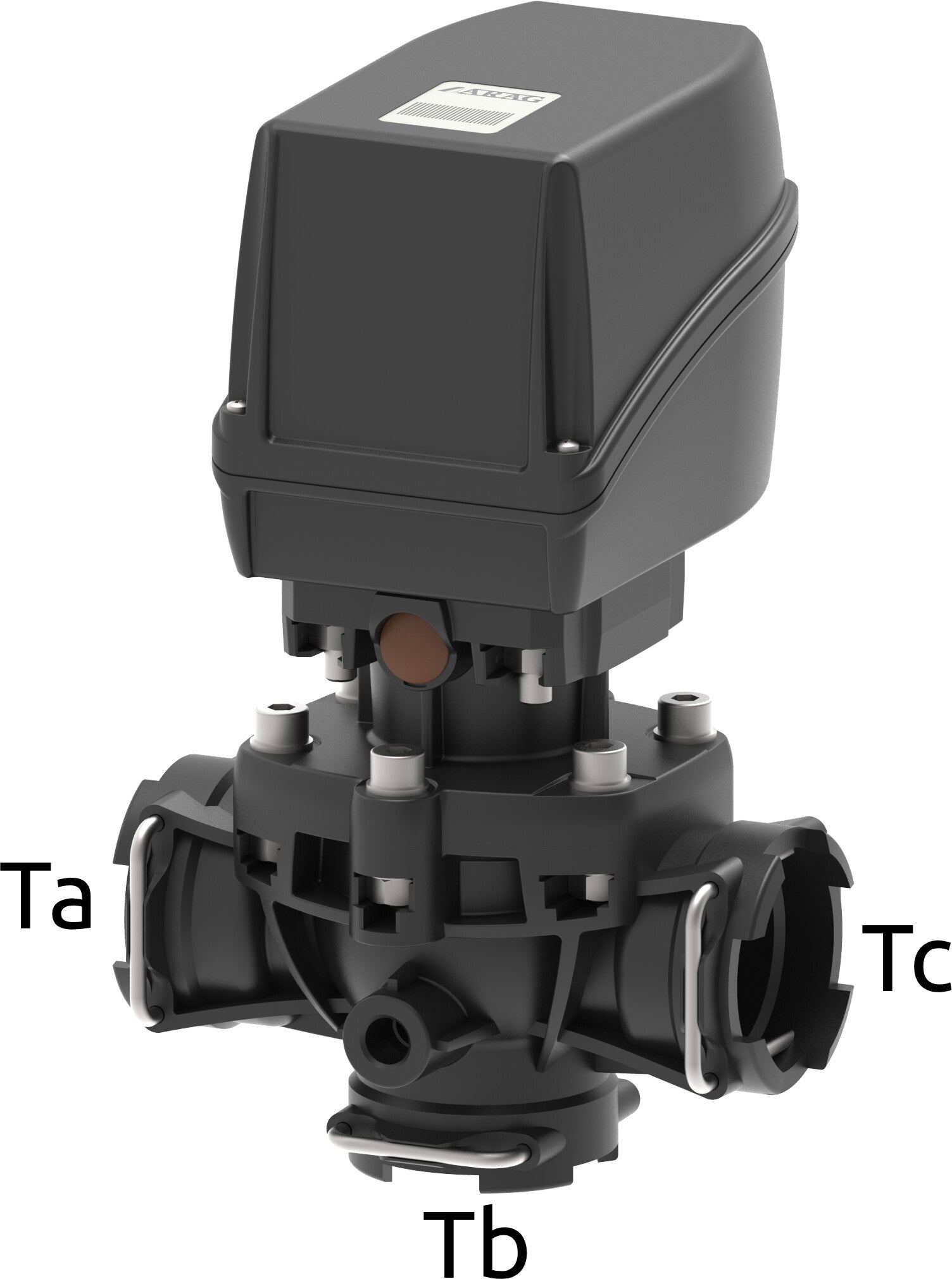

Electric diaphragm pressure relief control valve with fork coupling 875Electric diaphragm pressure relief control valve with fork coupling 875
Electric diaphragm pressure relief control valve with fork coupling 875
Code Fork Coupling (T) On / Off @ 90° MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code Fork Coupling (T) On / Off @ 90° MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code Fork Coupling (T) On / Off @ 90° MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
8750651 T5 13 sec. 10 bar 3 A 12 Vdc T5 F T5 F T5 F £291.05 View
8750652 T5 13 sec. 20 bar 3 A 12 Vdc T5 F T5 F T5 F £291.05 View
87506506 T5 13 sec. 6 bar 3 A 12 Vdc T5 F T5 F T5 F £291.05 View

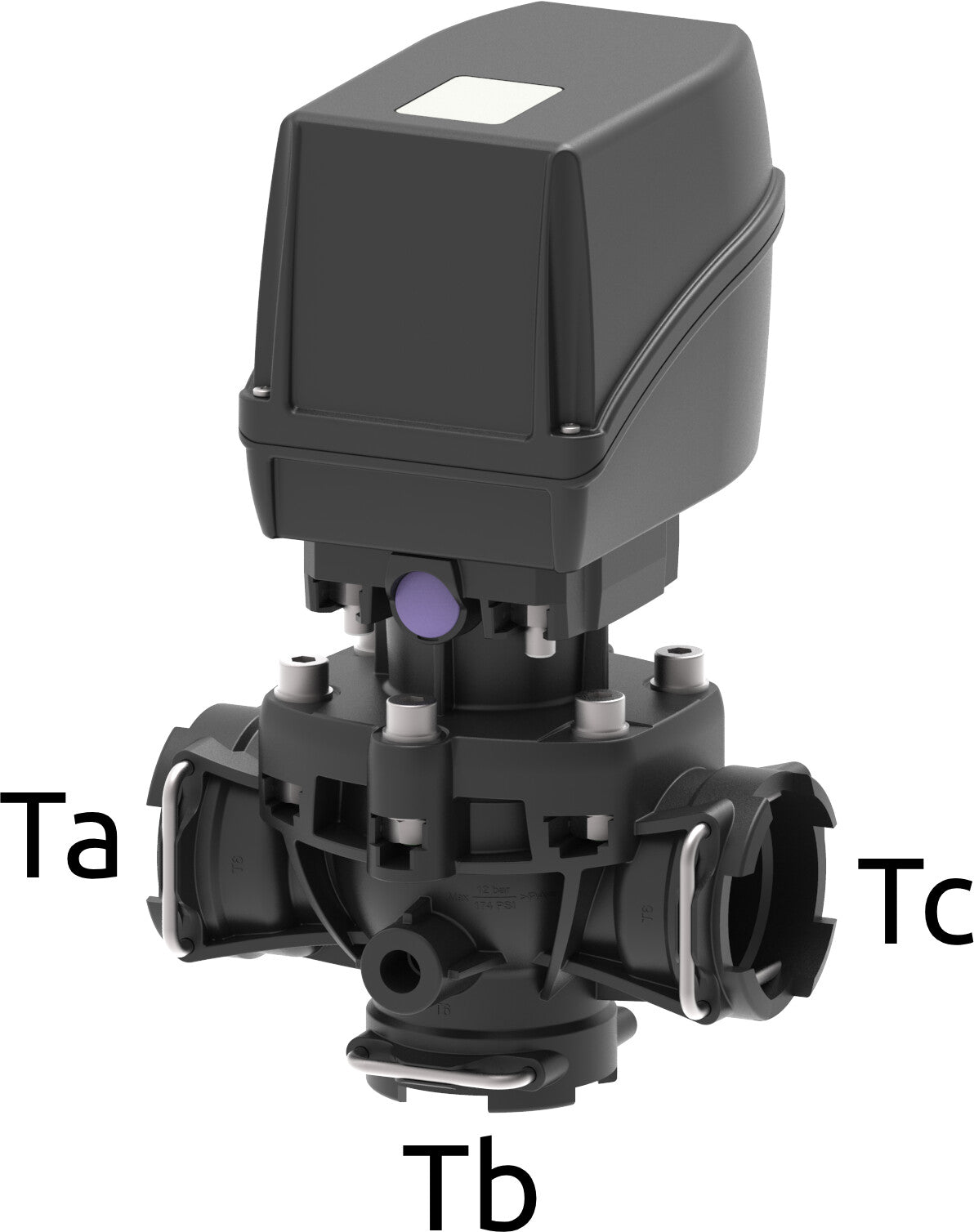

Electric diaphragm pressure relief control valve with fork couplingElectric diaphragm pressure relief control valve with fork coupling
Electric diaphragm pressure relief control valve with fork coupling
Code Fork Coupling (T) On / Off @ 90° MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code Fork Coupling (T) On / Off @ 90° MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
8750660 T6 13 sec. 8 bar 3 A 12 Vdc T6 F T6 F T6 F £308.80 View
87506612 T6 13 sec. 12 bar 3 A 12 Vdc T6 F T6 F T6 F £308.80 View

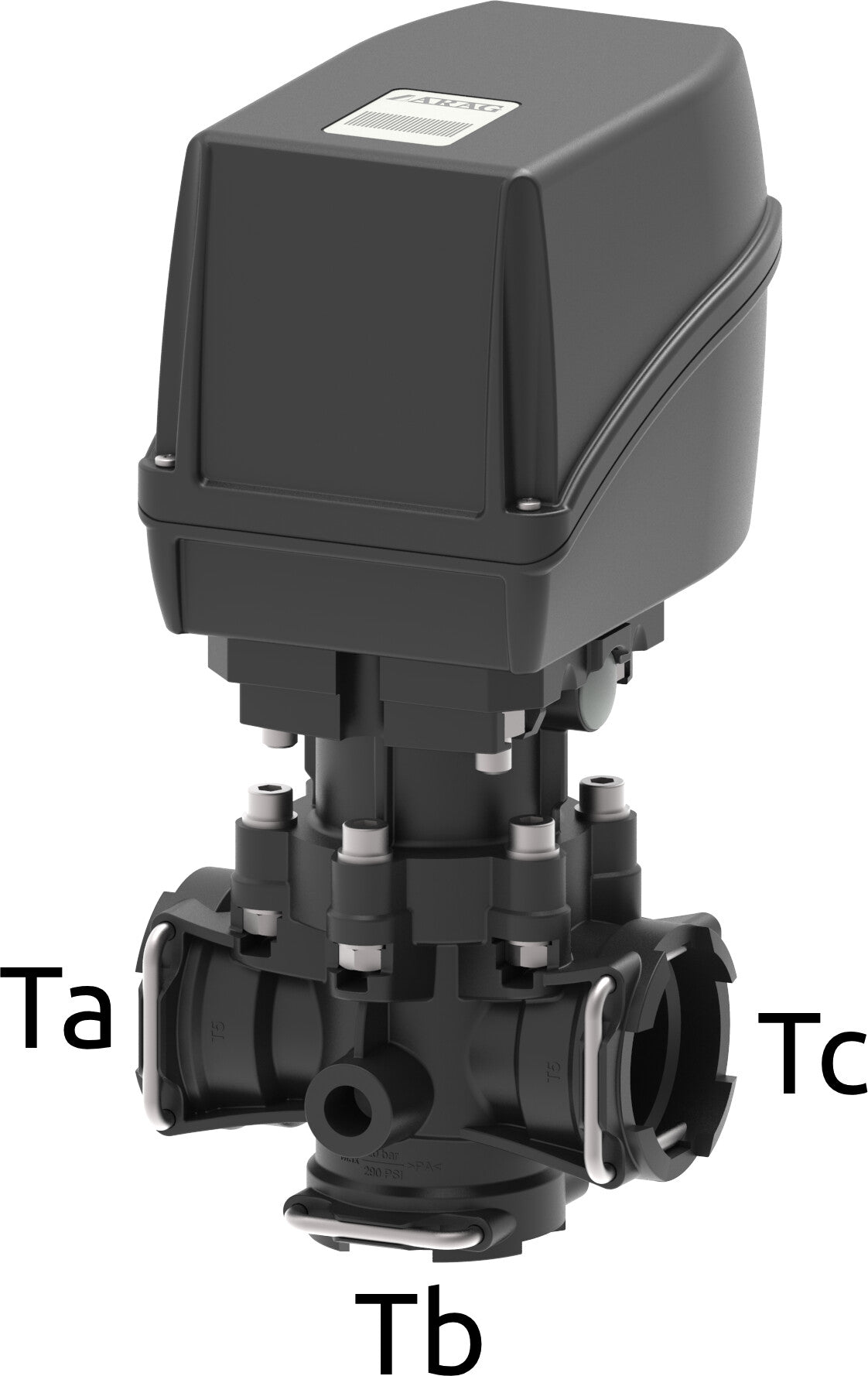

Electric diaphragm pressure relief control valve with fork couplingElectric diaphragm pressure relief control valve with fork coupling
Electric diaphragm pressure relief control valve with fork coupling

Electric diaphragm pressure relief control valve with fork coupling. Valve in CAN-Bus with position sensor.

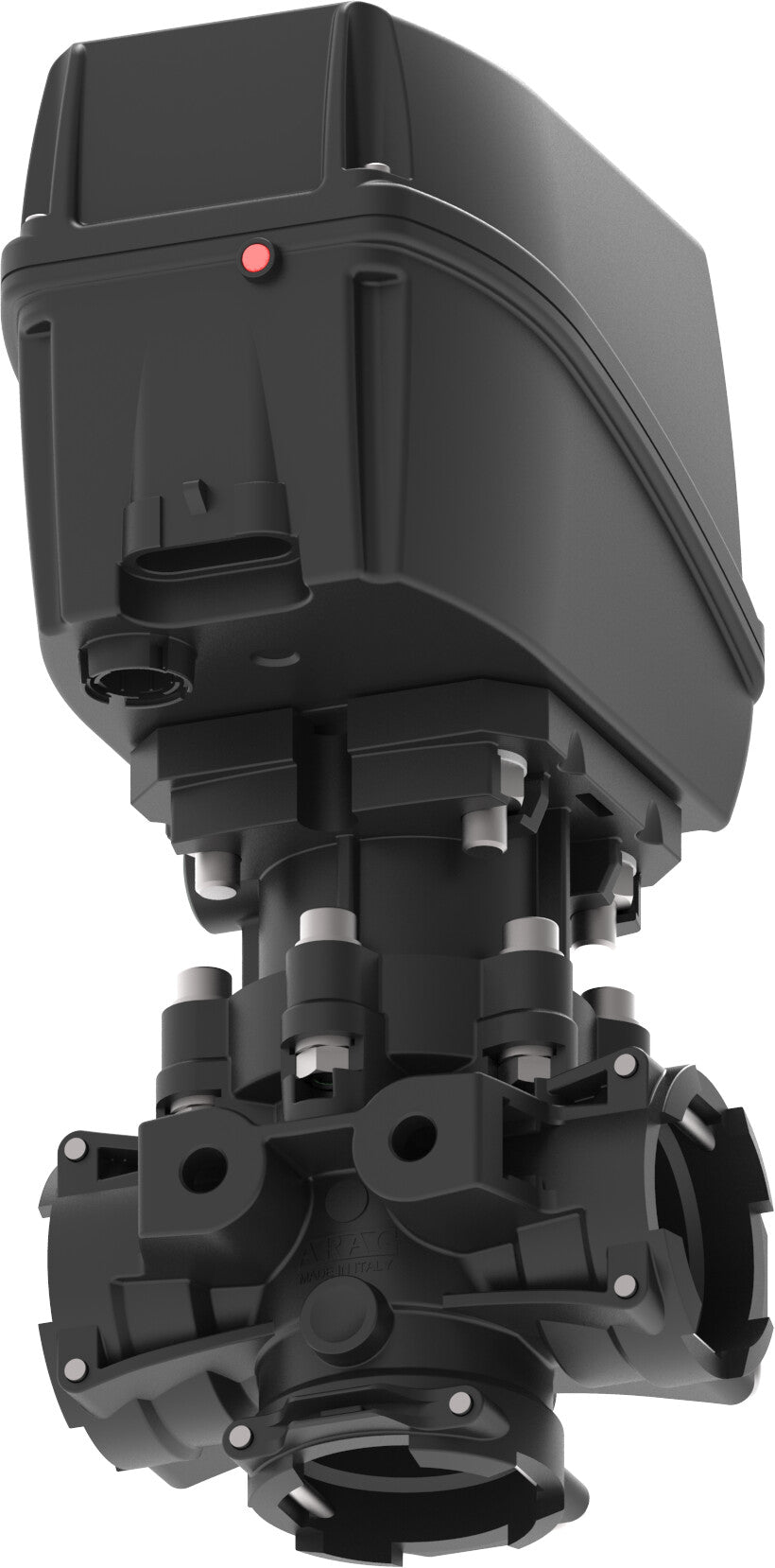

Electric diaphragm pressure relief control valve with fork couplingElectric diaphragm pressure relief control valve with fork coupling
Electric diaphragm pressure relief control valve with fork coupling
Electric diaphragm pressure relief control valve with fork coupling. Valve in CAN-Bus with position sensor.

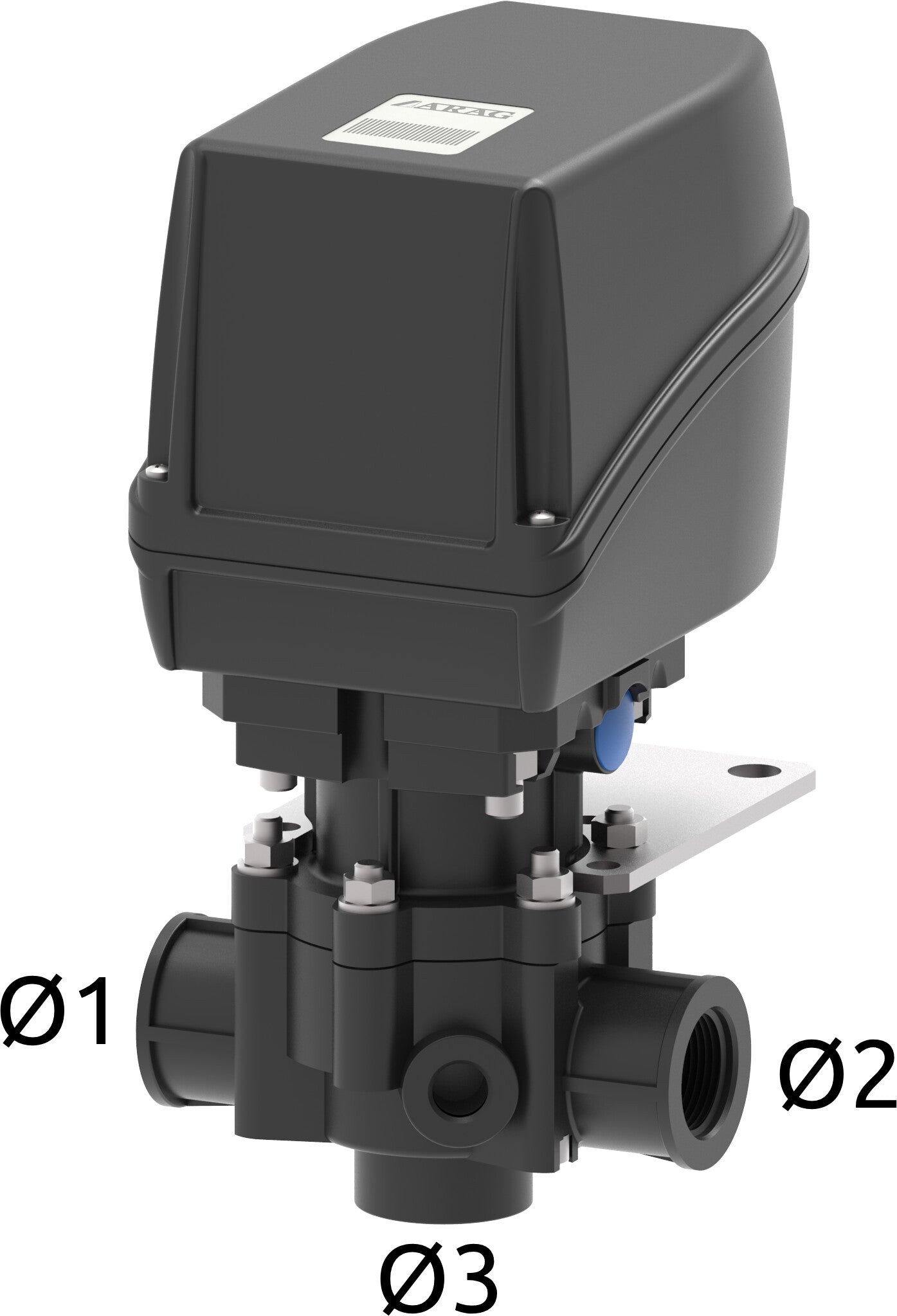

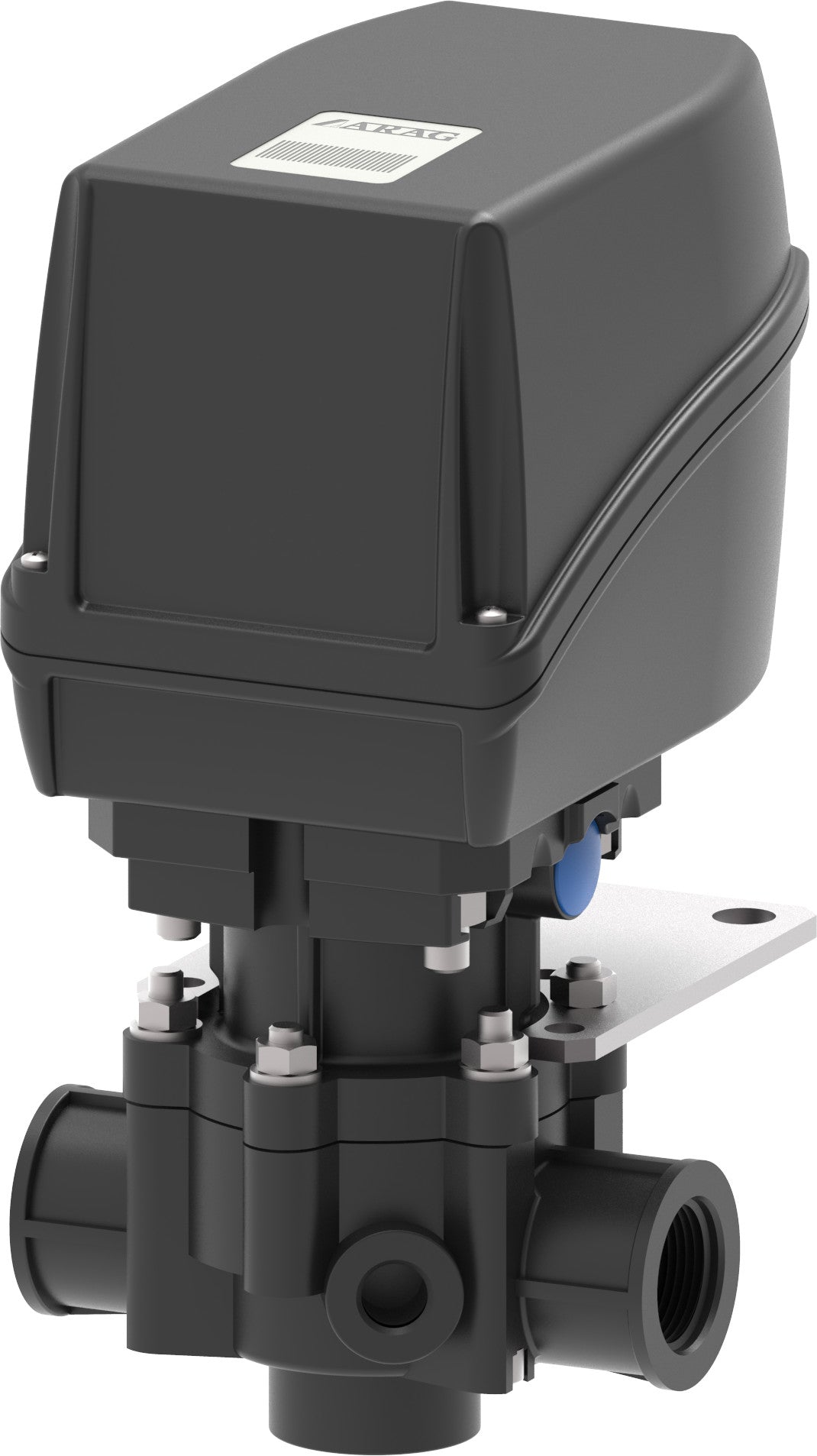

Electric diaphragm pressure relief control valve with threaded couplingElectric diaphragm pressure relief control valve with threaded coupling
Electric diaphragm pressure relief control valve with threaded coupling

* By-passes the excess liquid and maintains constant line pressure
* Equipped with a separation diaphragm for enhanced control sensitivity
* Compact sizes
* fiberglass reinforced Nylon body
* Internal parts in Delrin® and AISI 303 stainless steel
* Gaskets made of Viton®

Code On / Off @ 90 Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code On / Off @ 90 Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code On / Off @ 90 Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
8650633S °16 200 l/min 30 bar 3 A 12 Vdc 3/4" F 3/4" F G 3/4" F £309.93 View
8650634S °16 200 l/min 40 bar 3 A 12 Vdc 3/4" F 3/4" F G 3/4" F £309.93 View
8650635S °16 200 l/min 50 bar 3 A 12 Vdc 3/4" F 3/4" F G 3/4" F £309.93 View

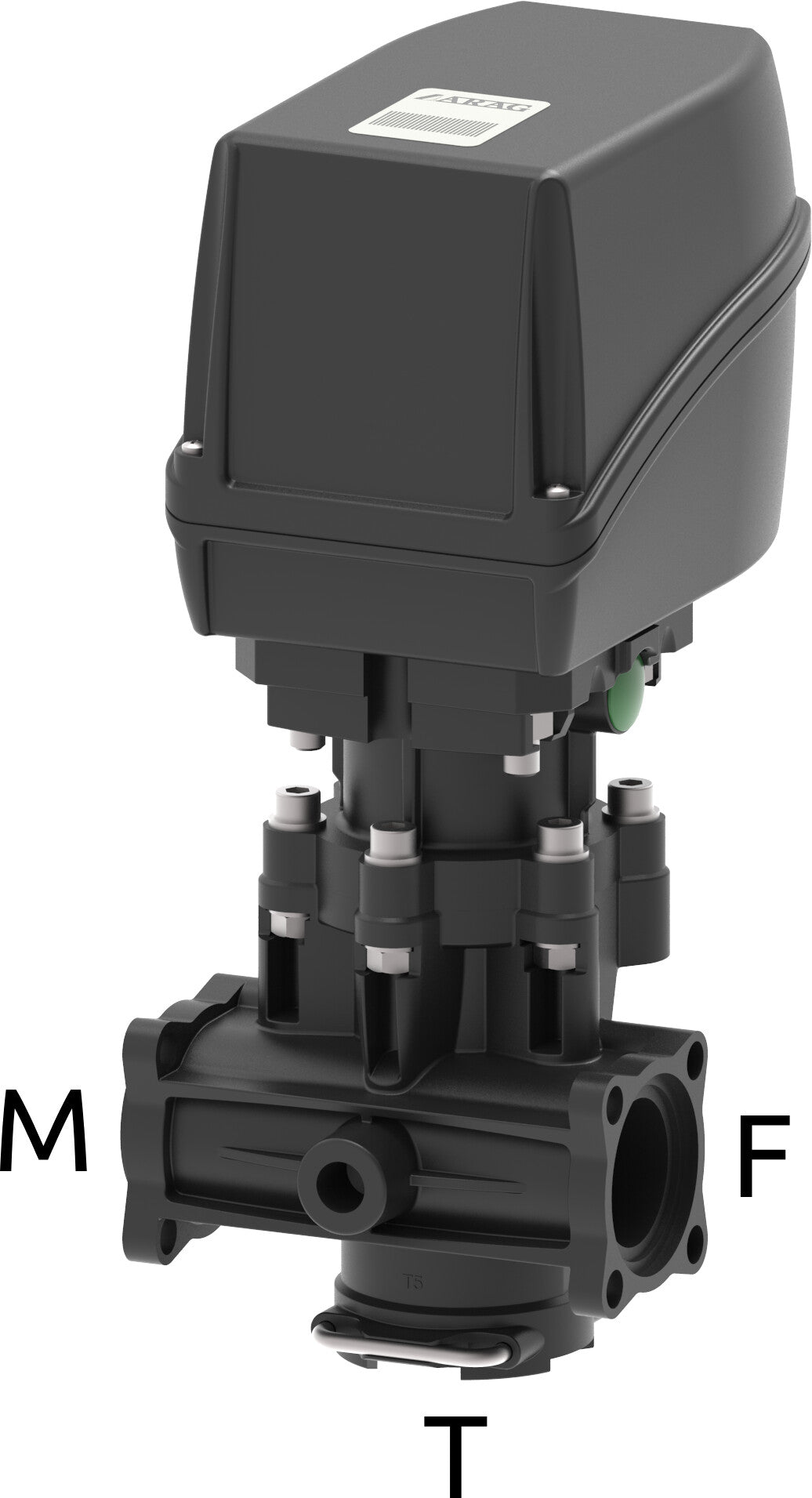

Electric diaphragm pressure relief control valve with flanged coupling type 863Electric diaphragm pressure relief control valve with flanged coupling type 863
Electric diaphragm pressure relief control valve with flanged coupling type 863

* By-passes the excess liquid and maintains constant line pressure
* Equipped with a separation diaphragm for enhanced control sensitivity
* Compact sizes
* fiberglass reinforced Nylon body
* Internal parts in Delrin® and AISI 303 stainless steel
* Gaskets made of Viton®

Code On / Off @ 90° Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code On / Off @ 90° Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
Code On / Off @ 90° Flow rate MAX Pressure Absorption @ 12 V Power supply voltage Ta Tb Tc Price
8750612 16 sec. 150 l/min 20 bar 3 A 12 Vdc 863 863 T5 F £288.71 View
8750613 16 sec. 150 l/min 30 bar 3 A 12 Vdc 863 863 T5 F £288.71 View
8750614 16 sec. 150 l/min 40 bar 3 A 12 Vdc 863 863 T5 F £288.71 View
