BSP tank bulkhead

10 products

Lock ring

Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
Code	h	D	- F -	Price
205010	13 mm	31 mm	G 3/8"	£0.71
2052020	13 mm	34 mm	G 1/2"	£0.77
2052030	13 mm	44 mm	G 3/4"	£0.92
2052040	15 mm	50 mm	G 1"	£1.00
2052050	15 mm	59 mm	G 11/4"	£1.08
2052060	15 mm	67 mm	G 11/2"	£1.63
2052070	20 mm	80 mm	G 2"	£2.35
2052080	20 mm	100 mm	G 2 1/2"	£2.91
2052090	22 mm	110 mm	G 3"	£3.25
2050E0	10 mm	40 mm	M 24x2"	£2.47

Gasket for bulkhead male threads

Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
Code	D1	S	D	-M-	- F -	Price
G40015	27.5 mm	2.5 mm	39.5 mm	G 3/4"	G 11/4"	£0.43
G40002	21 mm	2.5 mm	33 mm	G 1/2"	G 1/2"	£0.59
G40004	33 mm	3 mm	45 mm	G 1"	G 11/2"	£0.65
G40005	40 mm	4 mm	57.5 mm	G 11/4"	G 2"	£0.75
G40006	47 mm	3 mm	67 mm	G 11/2"	_	£0.92
G40007	59 mm	4 mm	86 mm	G 2"	G 3"	£1.30
G40008	76 mm	4 mm	94.5 mm	G 2 1/2"	_	£1.76
G40009	90 mm	4 mm	110 mm	G 3"	_	£1.96

Bulkhead male threaded with male connection

Code	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	CODE OR Viton®	Price
Code	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	CODE OR Viton®	Price
Code	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	CODE OR Viton®	Price
Code	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	CODE OR Viton®	Price
Code	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	CODE OR Viton®	Price
2491661	68 mm	2052060	G11023	PA	G 11/2"	50 mm	T6	G11023V	£3.27
2491771	68 mm	2052070	G11017*2	PA	G 2"	50 mm	T7	G11017V*2	£3.48
2491551	68 mm	2052050	G11063	PA	G 11/4"	55 mm	T5	G11063V	£2.82
2491331	55 mm	2052030	G11058	PA	G 3/4"	43 mm	T3	G11058V	£1.73
2491441	62 mm	2052040	G11054	PA	G 1"	50 mm	T4	G11054V	£1.88

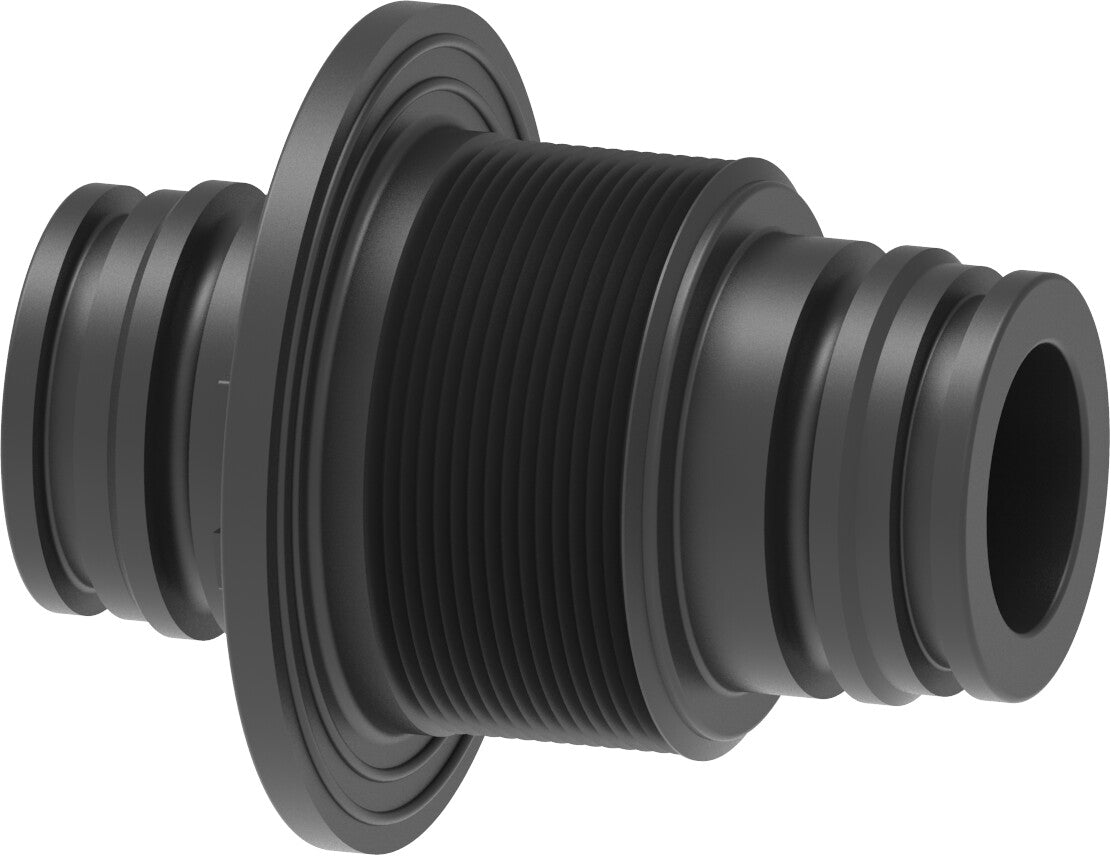

Male threaded bulkhead connector with fork coupling

Code	D	L	Fly nut Code	Material	-M-	h	Ta	Tb	CODE OR EPDM Ta	CODE OR EPDM Tb	CODE OR Viton® Ta	CODICE OR Viton®Tb	Price
229533	59 mm	46 mm	2052050	PA	G 1 1/4"	25 mm	T3	T3	G11058	G11058	G11058V	G11058V	£7.60

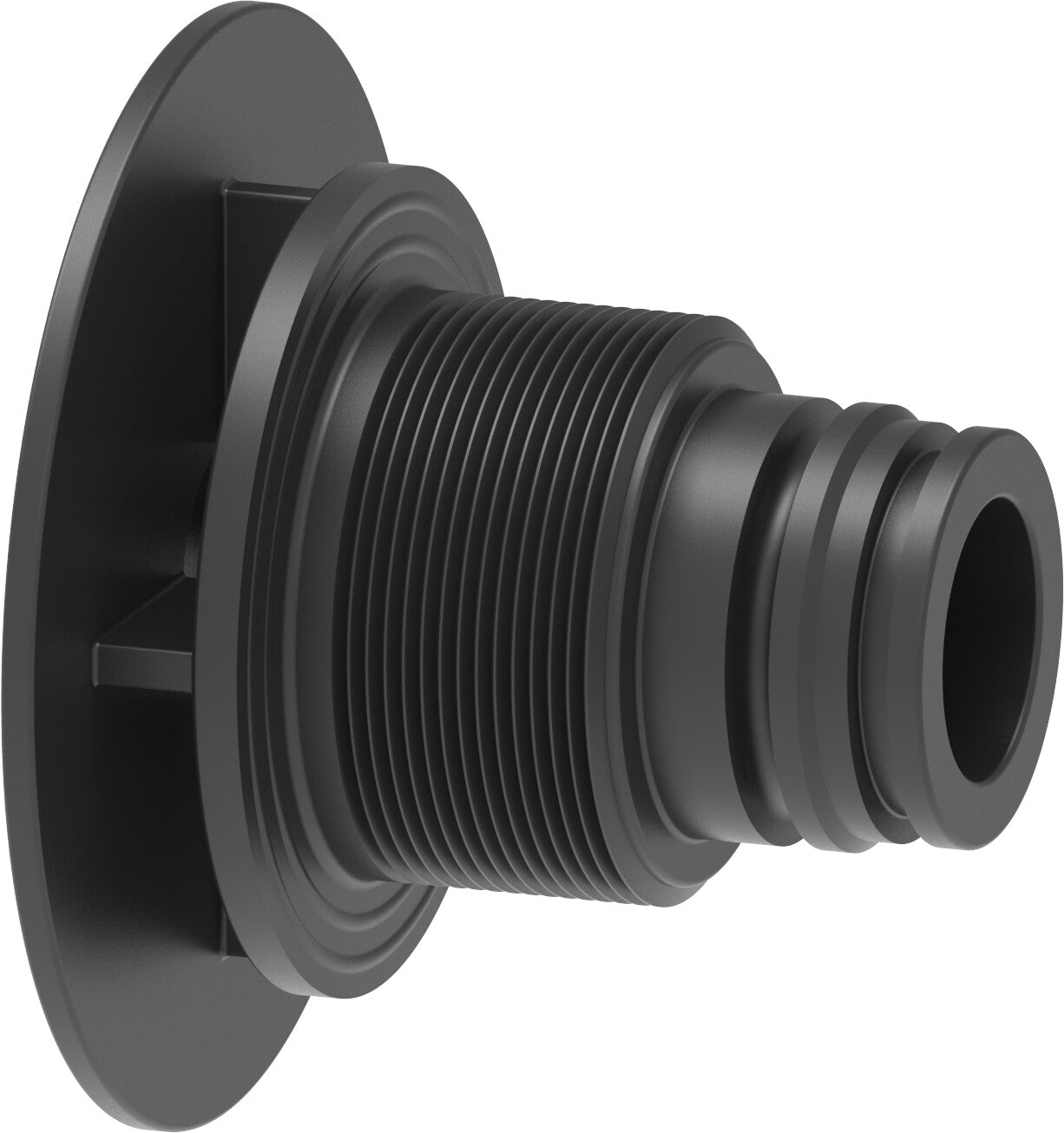

Male threaded anti-vortex intake with fork coupling

Code	D	D1	L	Fly nut Code	CODE OR EPDM	Material	-M-	h	Fork Coupling (T)	E	CODE OR Viton®	Price
229430	80 mm	59 mm	33 mm	2052050	G11058	PA	G 1 1/4"	25 mm	T3	16 mm	G11058V	£7.60

Anti-vortex outlets

Code	h	D	D1	L	-M-	Fly nut Code	Price
Code	h	D	D1	L	-M-	Fly nut Code	Price
Code	h	D	D1	L	-M-	Fly nut Code	Price
Code	h	D	D1	L	-M-	Fly nut Code	Price
Code	h	D	D1	L	-M-	Fly nut Code	Price
504104	46 mm	108 mm	25 mm	19 mm	G 1"	2052040	£5.28
504105	46 mm	108 mm	32 mm	19 mm	G 11/4"	2052050	£5.94
5042106	49 mm	100 mm	38 mm	27 mm	G 11/2"	2052060	£5.91
5042107	56 mm	120 mm	47.5 mm	27 mm	G 2"	2052070	£6.70
504108	56 mm	120 mm	63.5 mm	31 mm	G 2 1/2"	2052080	£7.83

Drain outlet

90° one-piece bulkhead hose tail with lock ring

One-piece bulkhead hose tail with lock ring

Code	D	h	A	B	Ø	-M-	Price
Code	D	h	A	B	Ø	-M-	Price
Code	D	h	A	B	Ø	-M-	Price
Code	D	h	A	B	Ø	-M-	Price
118213	32 mm	22 mm	45 mm	77 mm	11÷13 mm	G 1/2"	£2.47
118215	32 mm	22 mm	49 mm	84 mm	15÷17 mm	G 1/2"	£2.47
118319	40 mm	23 mm	69 mm	107 mm	20÷22 mm	G 3/4"	£2.79
118426	50 mm	23 mm	69 mm	107 mm	26÷29 mm	G 1"	£2.98

Drain outlet

Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
Code	h	L	D	E	-M-	Fly nut Code	Price
220020	43 mm	48 mm	38 mm	14 mm	G 1/2"	2052020	£1.39
220030	43 mm	50 mm	45 mm	18 mm	G 3/4"	2052030	£1.64
220040	50 mm	55 mm	50 mm	25 mm	G 1"	2052040	£1.64
220050	40 mm	45 mm	58 mm	32 mm	G 11/4"	2052050	£1.21
220052	55 mm	60 mm	59 mm	32 mm	G 11/4"	2052050	£1.33
220060	46 mm	52 mm	66 mm	38 mm	G 3/2"	2052060	£2.91
220070	66 mm	74 mm	76 mm	47.5 mm	G 2"	2052070	£3.20
220080	70 mm	76 mm	100 mm	63.5 mm	G 2 1/2"	2052080	£3.49

One-piece bulkhead hose tail with lock ring

Code	D	h	L	Ø	-M-	Price
108425	45 mm	25 mm	58 mm	25 mm	G 1"	£2.63
